Need a Custom Size?
Most units can be customized to fit your specs.
Call (866)-633-7961 to discuss! » Request Quote
Features
(3) 3700 Plano Tray Tackle Boxes 14" wide x 9" deep x 2" tall (4) 3730 Plano Tray Tackle Boxes 14" wide x 9" deep x 3.25" tall (4) Drawers 6" tall x 17.5" wide x 8.75" deep (2) Drawers 5.1875" tall x 17.5" wide x 8.75" deep
Installation Instructions
This item is "free standing" (i.e. it does not get inset into a cutout and fastened through a frame like many other storage units).
Typically "free standing" boat storage boxes are simply fastened through the box bottom directly to your deck with either bolts or lag screws.
Color Options
Color accuracy can vary considerably on computer monitors and printers. Use the above images as a general guide of relative color differences. When color match is critical, please consider purchasing a sample chain.
Below is our "best guess" color match by boat brand:
Important Note
Many builders have gone through color changes and utilize different color schemes on different boats. The above list should not be considered a definitive resource. Use these suggestions at your own risk and please consider purchasing a sample chain if color match is critical.
Starboard Sample Chain Because parts are built to order, we cannot accept any returns on account of color discrepancy. We offer sample chains at cost for all customers. If you are unsure which color best matches your boat, we highly recommend purchasing a set!
Add To Cart
Additional Size Options
Like this layout, but need a slightly different size? Here are some variations we've done for this unit that may fit your exact dimensions!
Give us a call at (866) 633-7961 and let one of our project managers know the ID number to get a quote for pricing on the box that works best for you!
ID
Dims
Drawing

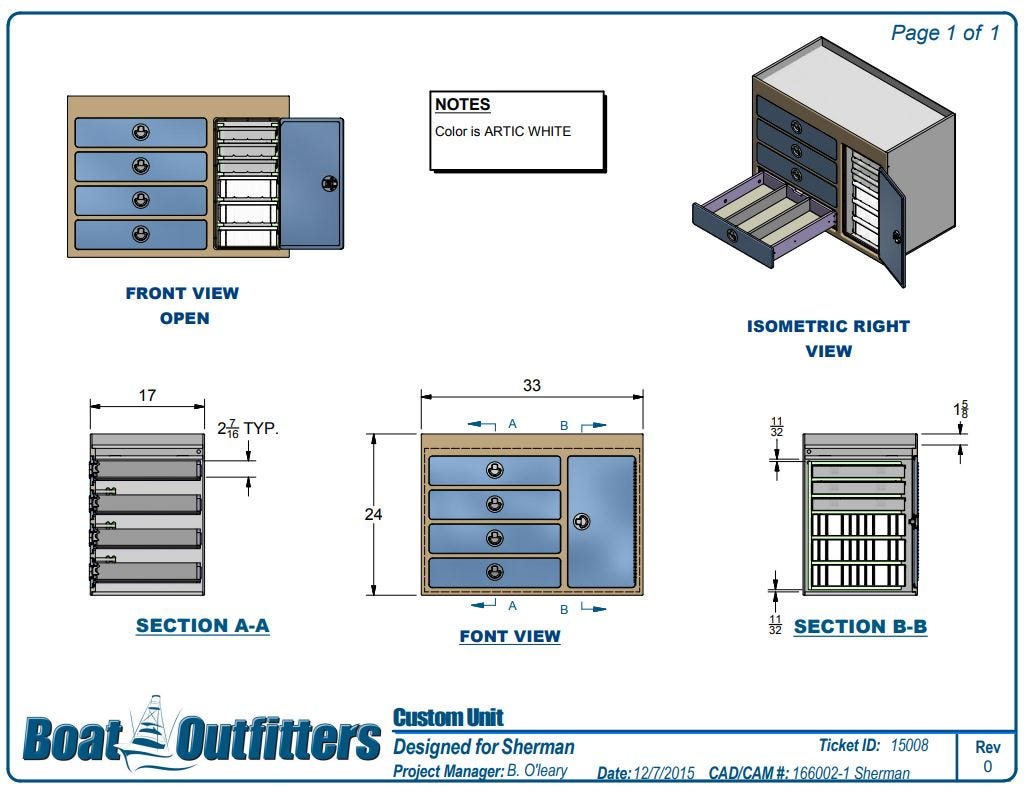

15008
Outside Dims: 24" tall x 33" wide x 17" deep
Changes: Dim Change, Rotated Plano Tray Orientation to Increase Drawer Space

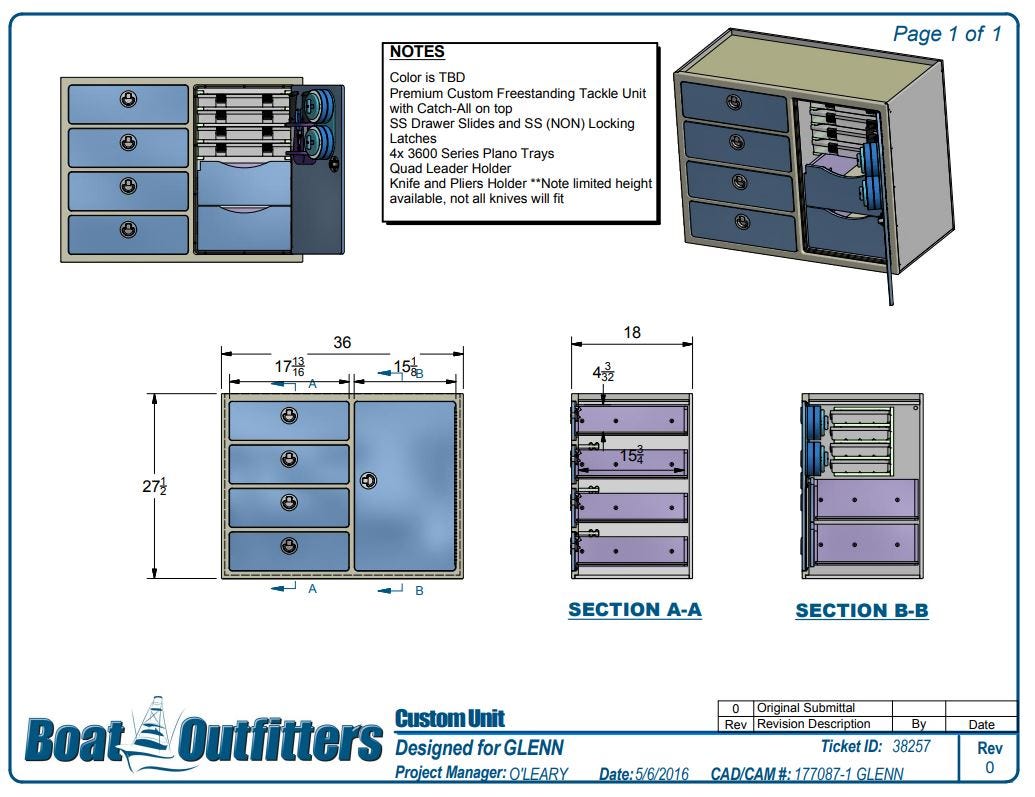

38257
Outside Dims: 27.5" tall x 36" wide x 18" deep
Changes: Dim Change, Lower Plano Trays Replaced with (2) Drawers, Dividers in Lower Drawer

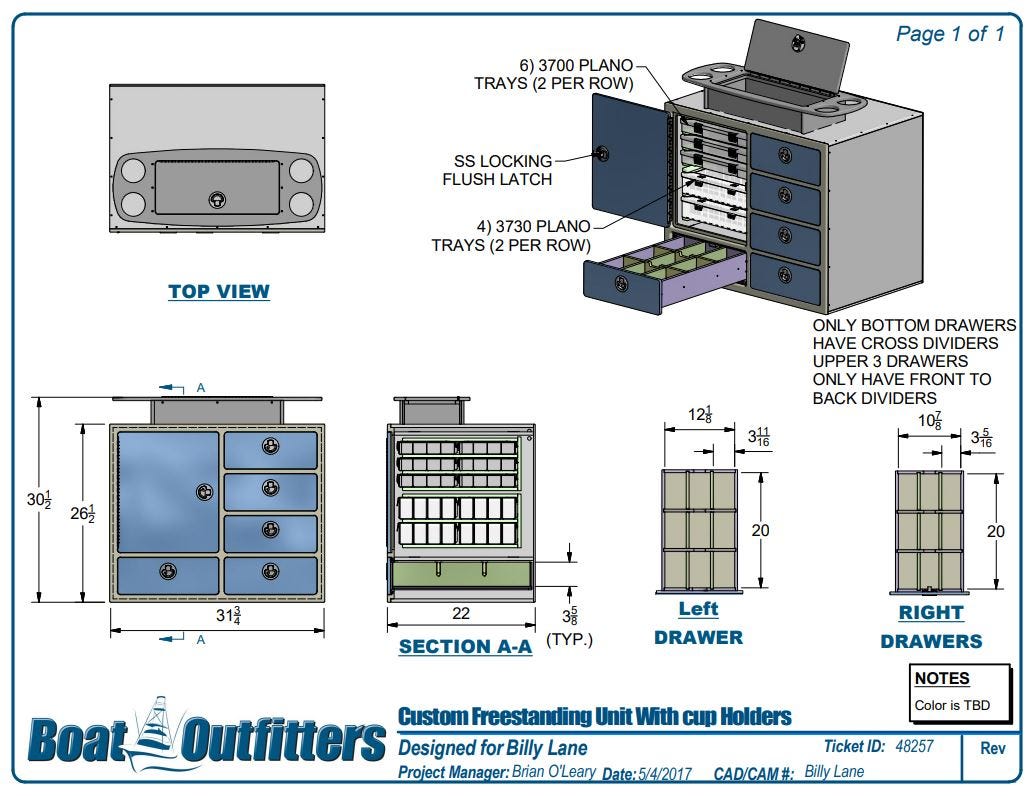

48257
Outside Dims: 30.5" tall x 31.75" wide x 22" deep
Changes: Dim Change, Drink Holders on Top, (4) Drawers on Right Side, Plano Storage and Divided Drawer on Left Side

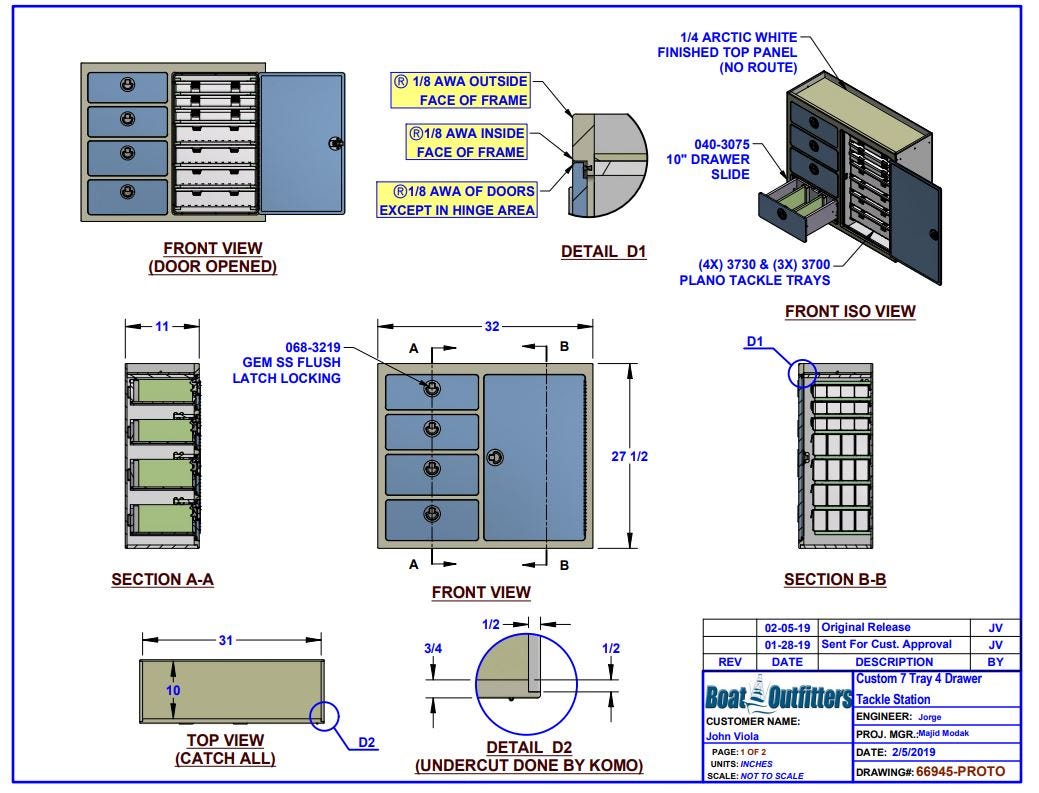

66945
Outside Dims: 27.5" tall x 32" wide x 11" deep
Changes: Dim Change, Arctic White

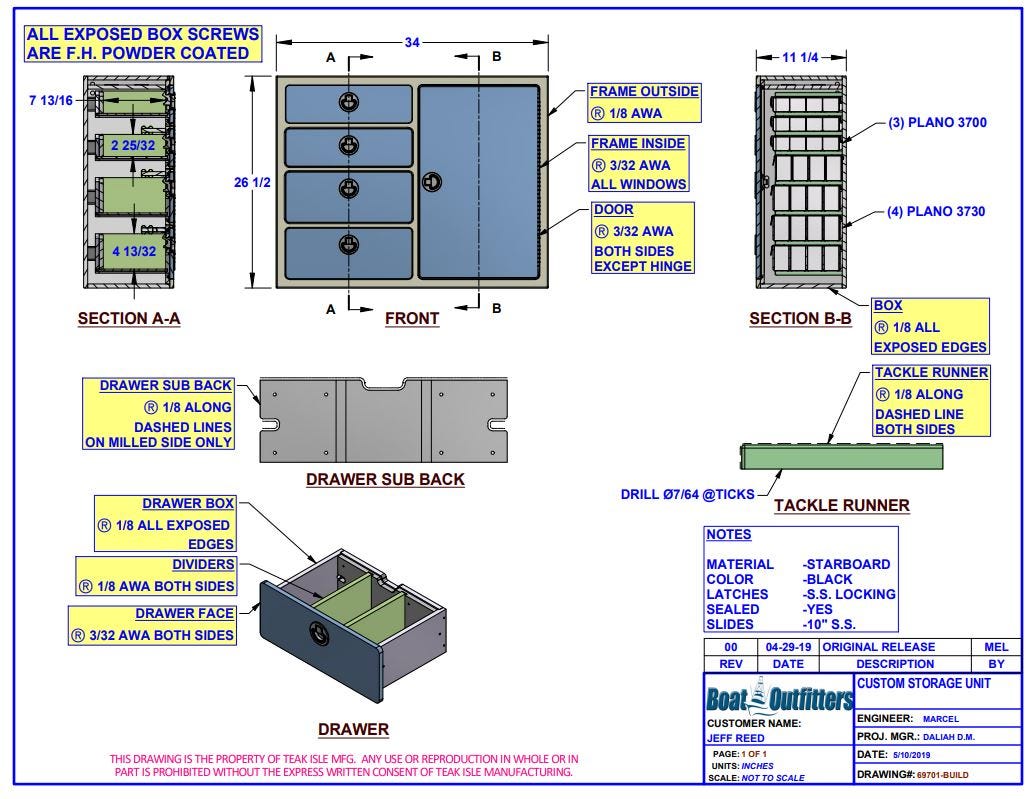

69701
Outside Dims: 26.5" tall x 34" wide x 11.25" deep
Changes: Dim Change, No Keeper on Top, Black, SS Locking Latches

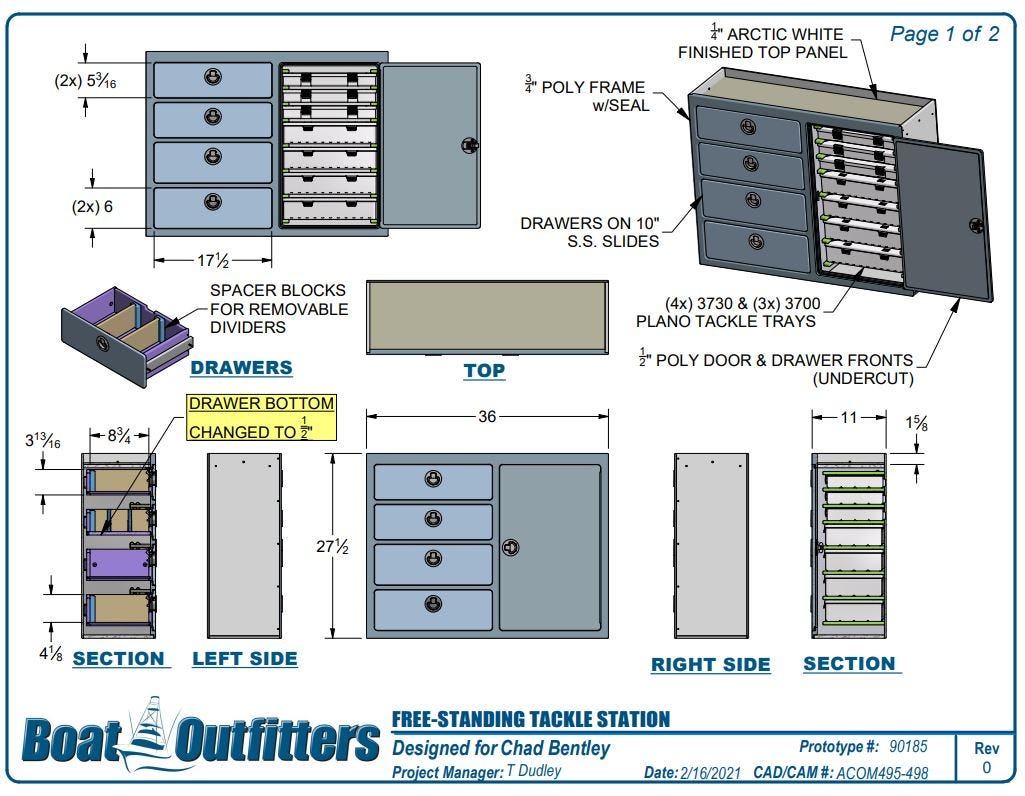

90185
Outside Dims: 27.5" tall x 36" wide x 11" deep
Changes: Dim Change, Divided (9) Compartment Drawer on Left Side,

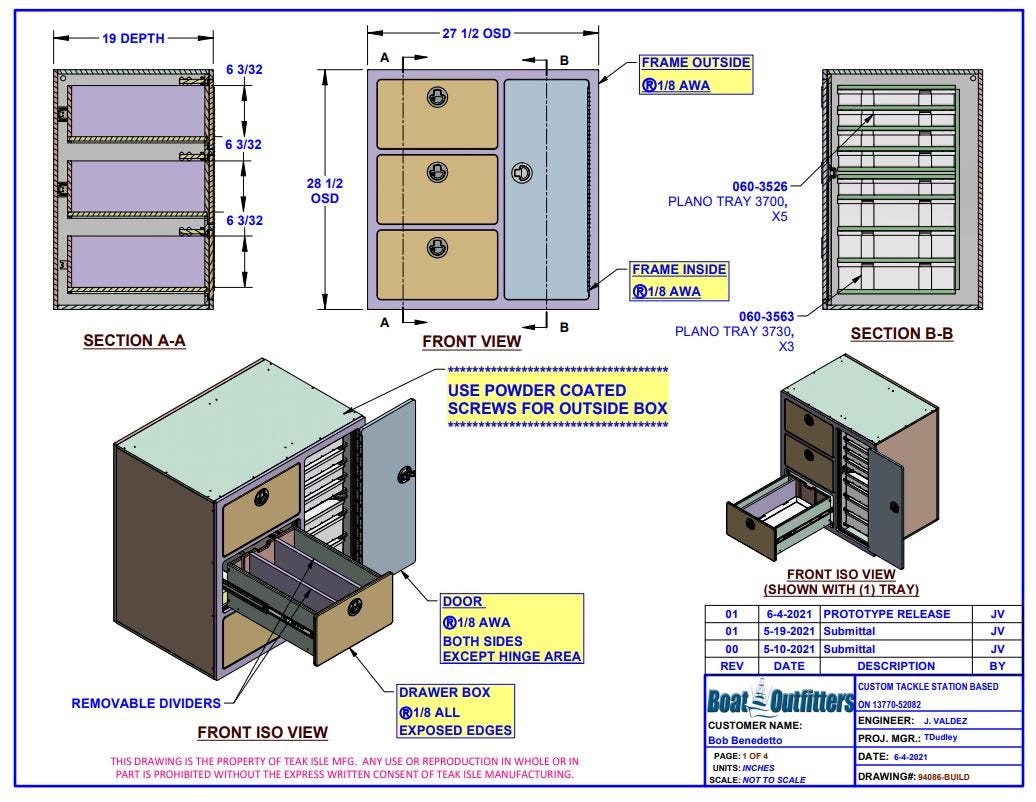

94086
Outside Dims: 28.5" tall x 27.5" wide x 19" deep
Changes: Dim Change, Removed Keeper Strips, Rotated Plano Tray Orientation, (5) 3700 and (3) 3730 Plano Trays
