Gemlux

Stainless Steel Top Mounting Friction Hinge - 2.32" x 2"

SKU
058-6038
  $42.96
Built-in friction holds compatible doors open without requiring separate gas shocks.
Ships FREE on orders over $150!

Product Details

  • Built-In Friction:
    Holds compatible doors in the open position without requiring separate gas shocks.
  • 316 Stainless Steel:
    Marine-grade construction is designed to withstand corrosive onboard environments.
  • Top-Mount Design:
    Compact hinge configuration supports straightforward installation on compatible doors, lids, and panels.
  • Compact Footprint:
    Measures 2.32" long x 2" wide for installation in space-conscious marine applications.
  • Countersunk Mounting Holes:
    Drilled and countersunk for #8 fasteners.

Tech Specs

Material316 stainless steel
Overall Dimensions2.32" L x 2" W
Hinge TypeFriction hinge
MountingTop mount; drilled and countersunk for #8 fasteners

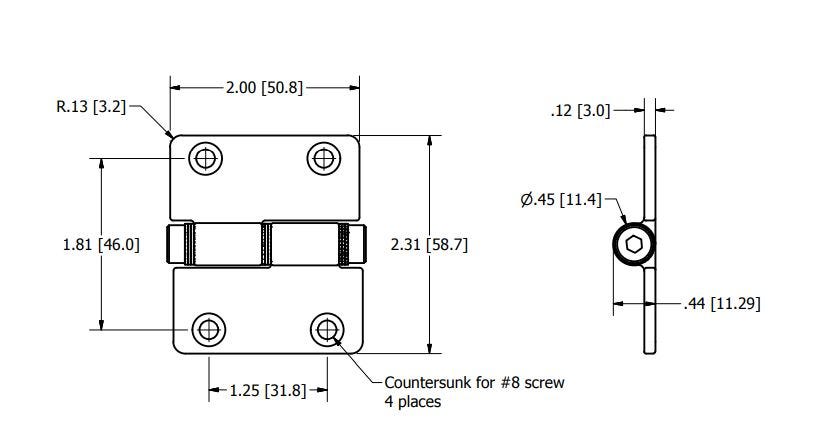

Drawing

View Drawing
