Bus Bar Terminal Block

SKU
As low as: $14.84

Description

  • Constructed of high-quality tin-plated copper and polycarbonate offering durability and anticorrosive properties in a challenging marine environment
  • Best for use with standard tinned copper marine wire for minimization of electrolytic corrosion
  • Ideal solution for power distribution for your marine electronics
  • Equipped with two strong #10-24 studs for secure main wire connection
  • Easy installation with (2) separately sold #14 fasteners
  • Available in (4) sizes

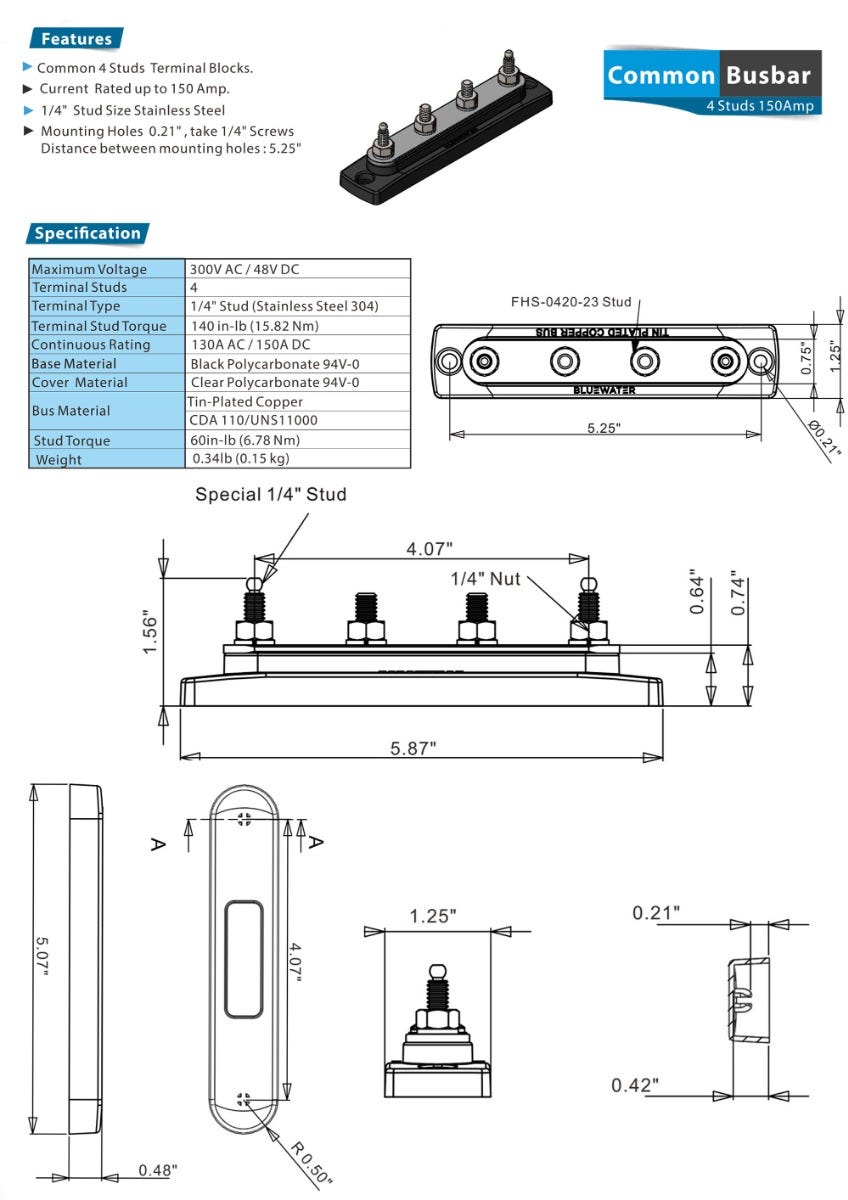

  • 4 Screw Terminals
    • Terminal size of 4 x #8-32
    • Holds a maximum voltage of 300V / 48VDC
    • Continuous rating of 130 Amps AC – 150 Amps DC
    • Separately sold Bus Bar Cover available here

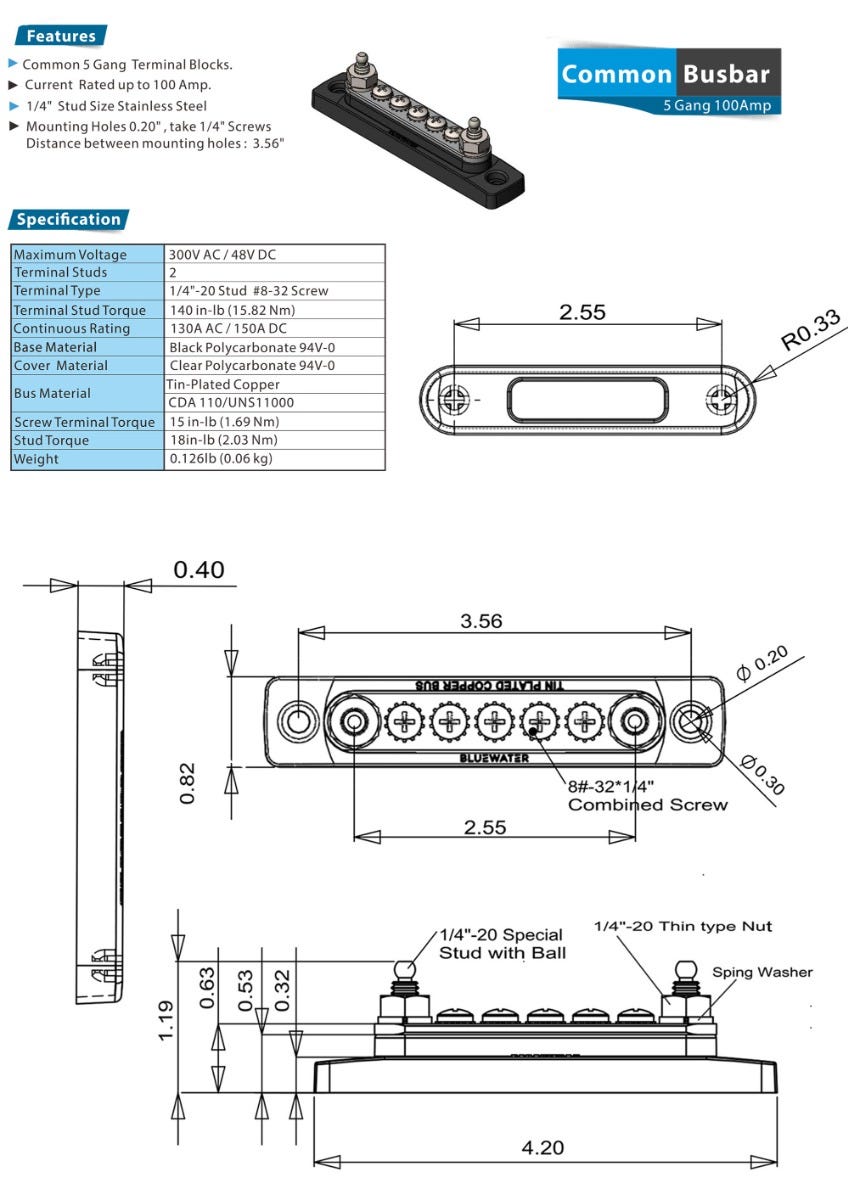

  • 5 Screw Terminals
    • Terminal size of 5 x #8-32
    • Holds a maximum voltage of 300V / 48V DC
    • Continuous rating of 100 Amps
    • Separately sold Bus Bar Cover available here

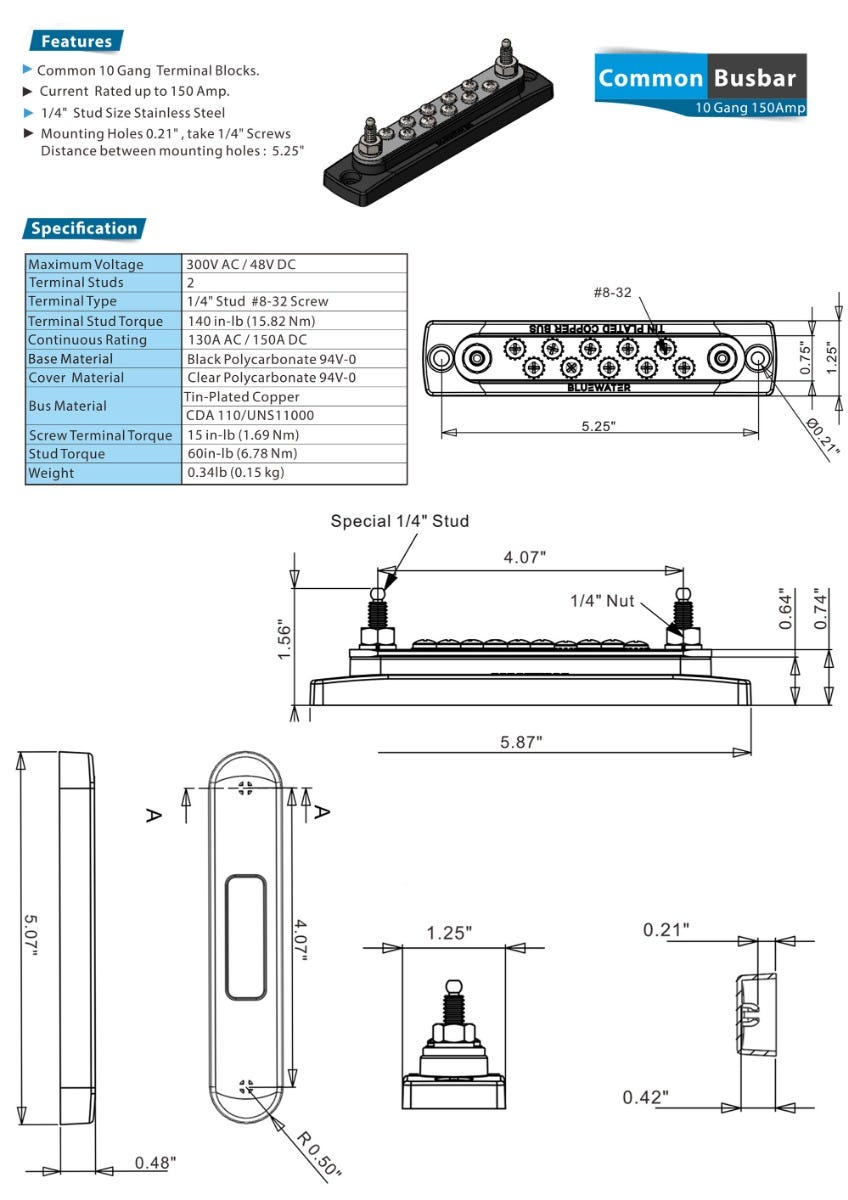

  • 10 Screw Terminals
    • Terminal size of 10 x #8-32
    • Holds a maximum voltage of 300V / 48V DC
    • Continuous rating of 130 Amps AC – 150 Amps DC
    • Separately sold Bus Bar Cover available here

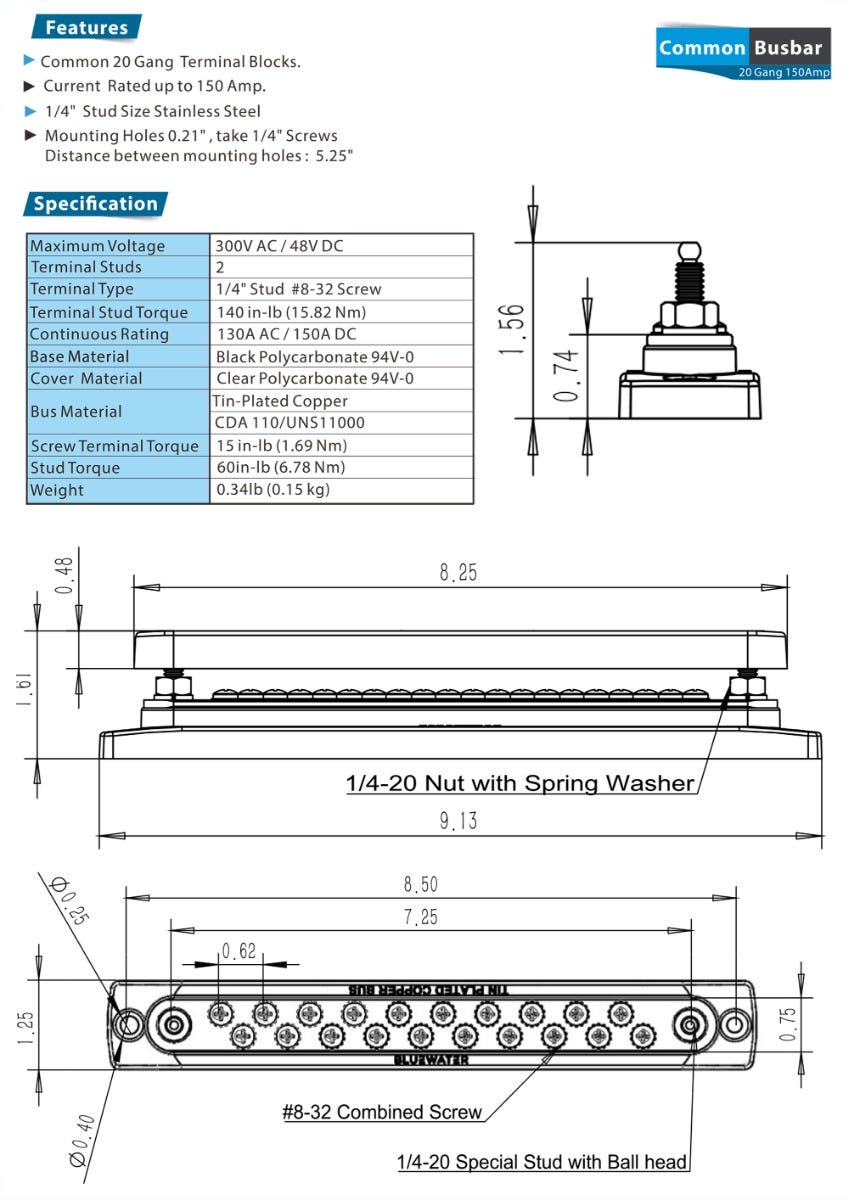

  • 20 Screw Terminals
    • Terminal size of 20 x #8-32
    • Holds a maximum voltage of 300V / 48V DC
    • Continuous rating of 130 Amps AC – 150 Amps DC
    • Separately sold Bus Bar Cover available here

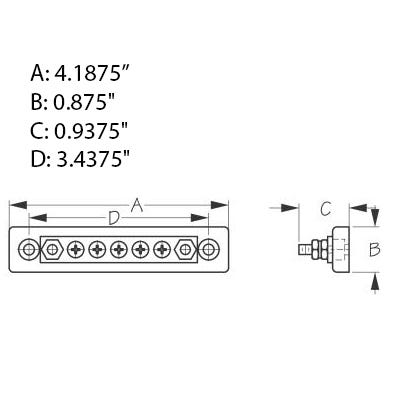

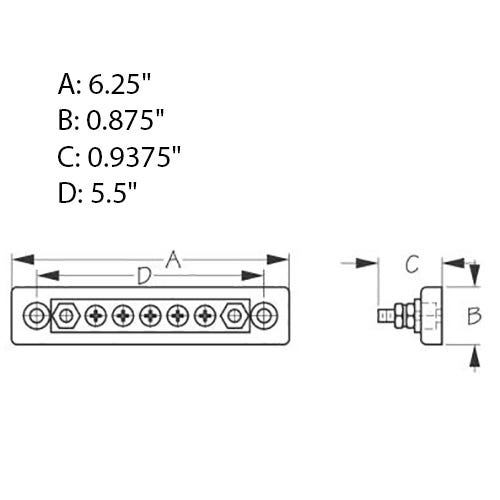

    Drawings
