- Manufactured by laser marking technology it offers a stunning backlight effect, improved readability and increased durability
- Complete switch unit which includes a switch body and labelled cover
- Laser etched “Livewell” label does not wear off easily- perfect for harsh marine environment
- Dual lamp indicator at top and bottom for effective operation
- Industry standard 1.45” X 0.83” mounting hole that it fits any Carling V-series or contura style rocker switch
- Quick and easy installation to upgrade your marine electronics!

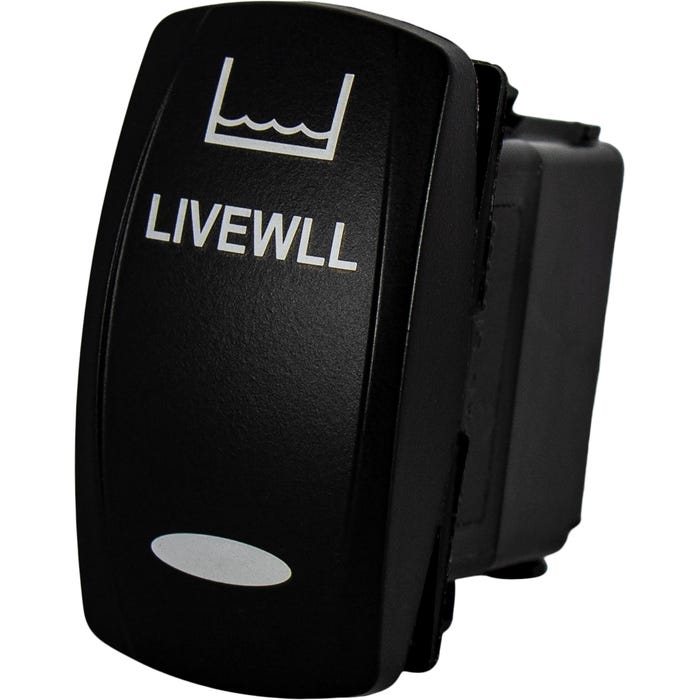

Contura Style Livewell Switch
SKU
13770-80397
$23.99
Regular Price
Ships FREE on on orders over $150!
Trusted Industry
Leader
Leader
Helping Boaters
since 1979
since 1979
Honest Expert
Advice
Advice
100% Satisfaction
Guarantee
Guarantee
Description
Specs
- Marking: “LIVEWELL”
- Backlighting color: White
- Voltage Rating: 12Vdc
- Current Rating: 20A
- Circuit: SPST
- Position: ON-OFF
- Water Protection: IP68 (waterproof to >1m submersion)
- Terminal Count: 4
- Terminal Style: 0.250″ Quick Connect (spades)
- Contact Life: 150,000 cycles
- Lamp Life: 10,000 hours
- Terminal Style: 0.250″ Quick Connect (spades)
- Contact Life: 150,000 cycles
- Lamp Life: 10,000 hours
Drawings
Switch Compatibility
These covers will fit all carling rocker switches, examples shown below.
