Complete Switch Unit:
Includes both the switch body and labeled cover for a ready-to-install rocker switch assembly.Nav and Anchor Labeling:
Laser-etched markings show “NAV LIGHTS” at the top and “ANCHOR” at the bottom.White Backlighting:
White backlighting creates a clean illuminated label effect for improved readability.Durable Laser Marking:
Laser marking technology helps prevent the label from wearing off in harsh marine environments.Top Indicator Lamp:
Single lamp indicator at the top provides clear visual operation status.Standard Rocker Fit:
Fits an industry-standard 1.45" x 0.83" mounting hole for Carling V-Series or Contura-style rocker switch openings.Marine-Rated Protection:
IP68 water protection rating supports use in demanding boat switch panel applications.

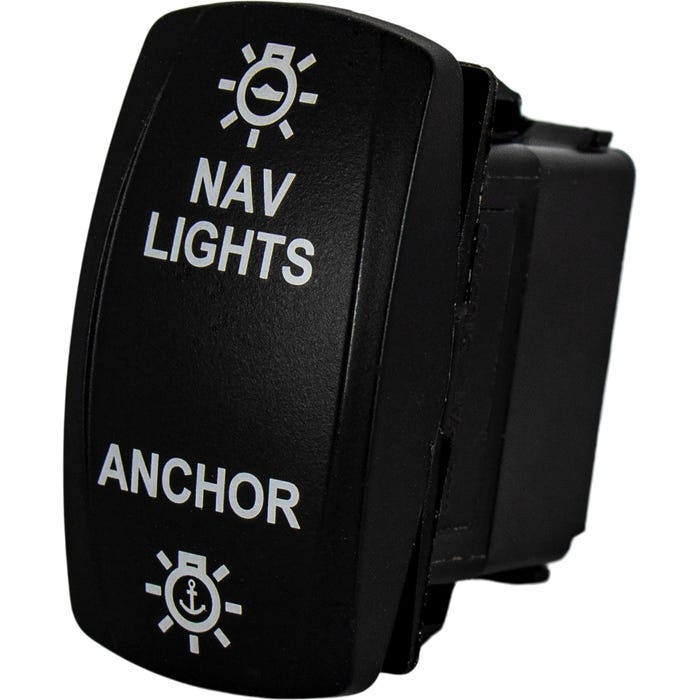

Contura Style Nav & Anchor Lights Switch
SKU
13770-80390
$27.82
Regular Price
Ships FREE on orders over $150!
Helping Boaters
since 1979
since 1979
Honest Expert
Advice
Advice
100% Satisfaction
Guarantee
Guarantee
Product Details
Tech Specs
| Switch Style | Contura-style rocker switch |
| Included Components | Switch body and labeled cover |
| Marking | “NAV LIGHTS” at top; “ANCHOR” at bottom |
| Marking Method | Laser etched |
| Backlighting Color | White |
| Indicator | Single top lamp indicator |
| Voltage Rating | 12 VDC |
| Current Rating | 20A |
| Circuit | SPST |
| Switch Position | ON-OFF-ON |
| Mounting Hole | 1.45" x 0.83" |
| Switch Compatibility | Carling V-Series or Contura-style rocker switch openings |
| Water Protection | IP68; waterproof to >1m submersion |
| Terminal Count | 4 |
| Terminal Style | 0.250" quick-connect spades |
| Contact Life | 150,000 cycles |
| Lamp Life | 10,000 hours |
Drawings
Switch Compatibility
These covers will fit all carling rocker switches, examples shown below.
