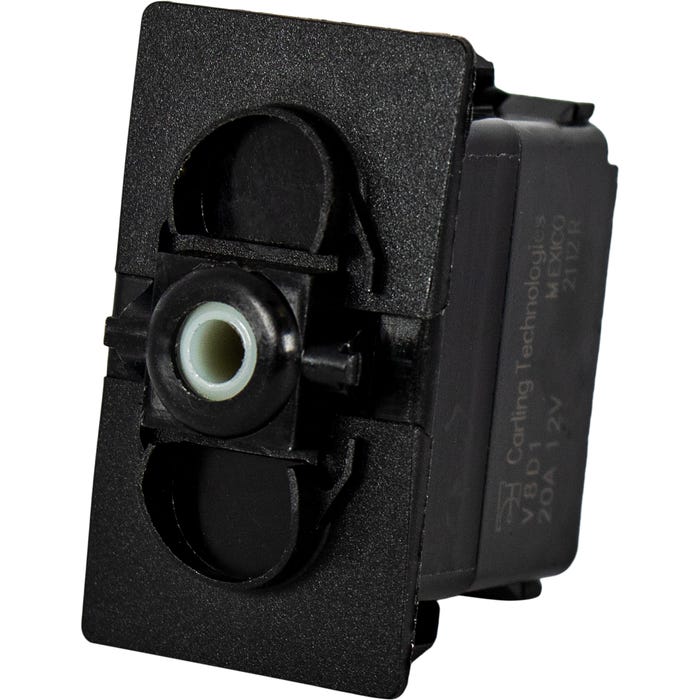

Contura Style Momentary Switch Base (On)/Off/(On)

SKU
260-2361
  $12.45
Ships FREE on orders over $150!

Description

  • Interchangeable actuators offers instant change of labeling as required
  • V-Series Contura Sealed Rocker Switch with silver plated butt contact mechanism for extended life cycle and increased performance
  • Brass roller pin eliminates the need for lubricating and increases durability
  • Dual seal protection provides excellent protection from water, dust, and debris
  • Clean connections allows for multitude of circuit options while providing ease of assembly
  • Switch base only- labeled actuator sold separately
  • Quick and easy installation to upgrade your marine electronics!
  • This switch does not have illumination

    Specs

    • No illumination
    • Circuit: Single Pole- Uses terminal 1,2, & 3
    • Position: 1(ON-Momentarily) - 2(OFF) - 3(ON-Momentarily)
    • Rating: 20A, 12V
    • Flush Bracket: Black, No seal
    • Life: Up to 100,000 cycles- circuit and load dependent
    • Sealing: IP66/68, for above-panel components of actual switch only
