- PREMIUM MARINE GRADE PVC: Enhanced with impact modifiers and UV inhibitors for superior outdoor performance and lasting durability
- PROTECTIVE BARRIER: Non-marking, shock-absorbing edging prevents scratches and dings while protecting both your vessel and dock
- SIMPLE INSTALLATION: Mounts easily with standard #7-8 wood screws (1-1.5" long) and stainless steel washers (sold separately)
- LONG-LASTING DEFENSE: Quality-grade UV and fungicide inhibitors provide extended protection against environmental wear and discoloration

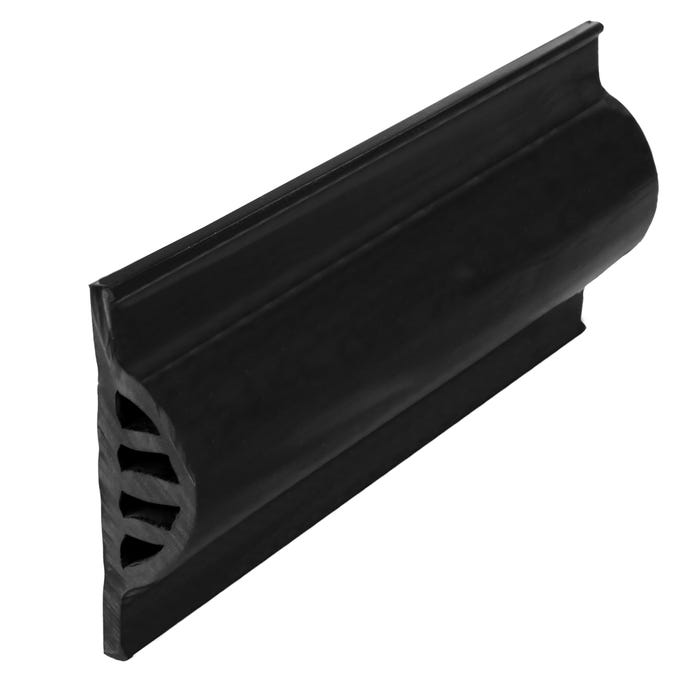

D-Profile Dock Bumper
SKU
As low as:
$36.50
As low as:
Regular Price
Product Details
Tech Specs
| Material | Marine grade PVC with UV and fungicide inhibitors |
| Applications | Dock edges, marine environments |
| Mounting | #7-8 fasteners, 1"-1.5" (Sold Separately) |

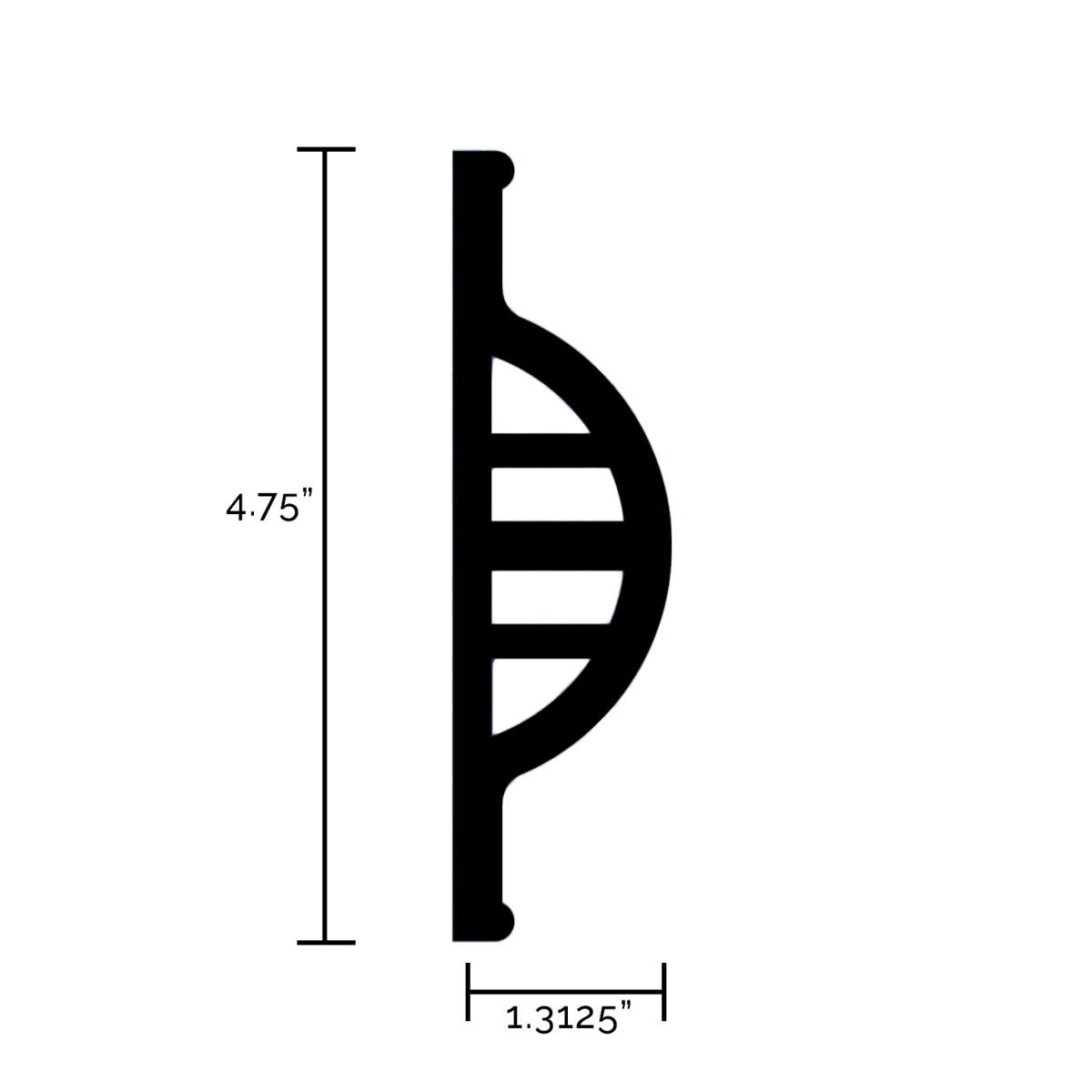

Drawing
Installation Instructions
Required Tools:
Drill
#7 or #8 Phillips Flat Head Screws
Flat or Finish Washers
⅛” Drill Bit
Do a dry fit of each piece before beginning installation to determine the exact placement, alignment, and orientation of each piece. Install the edge below the top plank of the dock. Mark position on the dock and edging to help guide your installation
Drill pilot holes every 6” thru the top and bottom of the bumper and the dock once placement is determined using a ⅛” drill bit. Start on one end
Use 1-1.5” long stainless-steel screws and flat or finish washers to mount the edging to the dock
If not using a corner bumper, the dock edges can be butted up to the corners of the dock, or mitered to form a 90° angle. Cut the sides of the bumper at a 45° angle and fit as closely as possible together at the corners. Seams can be fused with a UV curable adhesive if desired
If using the Flexible Dock Corner, install the corner bumper first with 2 screws in the top and bottom inner corner and 1 screw on the top and bottom outer edges closest to the edging. Install the D-Bumper edging to the dock at the end of the corner bumper
