Pull-Up Flush Design:
Pull the cleat up when needed and push it down flush with the deck when not in use.316 Stainless Steel:
Marine-grade construction provides durable corrosion resistance for demanding onboard environments.Integrated Drainage:
Sealed base funnels water through the bottom fitting and eliminates the need for a separate waterproofing cup.Multiple Size Options:
Available in 4.5", 6", 8", and 10" sizes to suit different docking and deck layouts.Mounting Choices:
Top Mount configurations are available across the size range, with a Hidden Stud Mount option offered in 10".Included Backing Plate:
Flat backing plate supports installations with rear access and also serves as a cutout template.Mounting Hardware:
Required fasteners vary by cleat size and are sold separately.
Product Details
Tech Specs
| Material | 316 stainless steel |
| Size Options | 4.5", 6", 8", 10" |
| Mounting Options | Top Mount; Hidden Stud Mount on 10" version |
| Drainage | Sealed base with bottom drain fitting |
| Included | Flat backing plate / cutout template |
| Fasteners | 4.5": four 3/16" screws; 6" and 8": four 1/4" screws; 10": four 5/16" screws; not included |

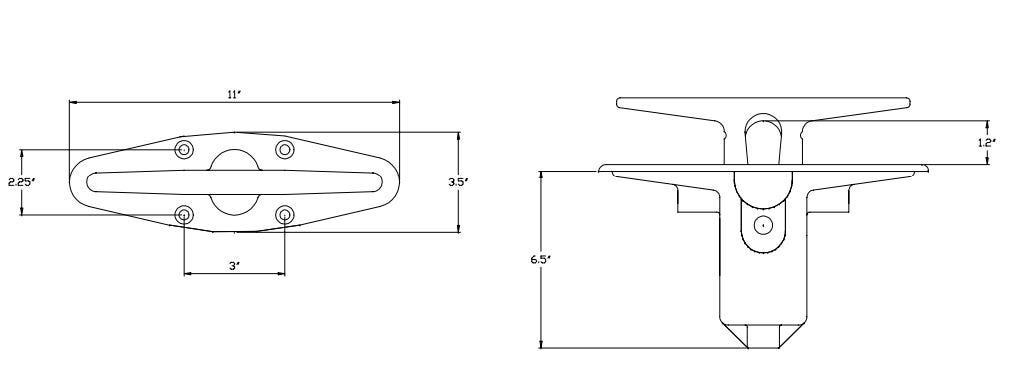

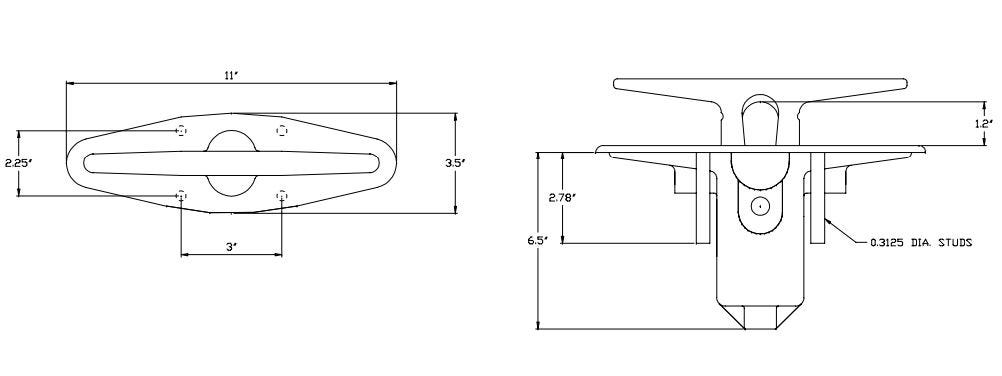

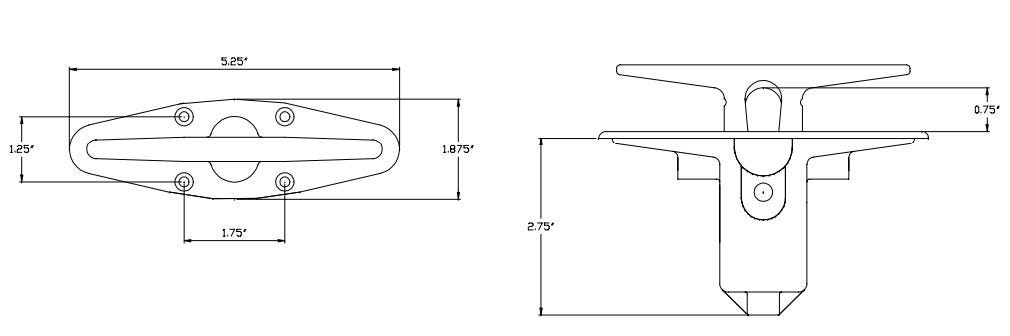

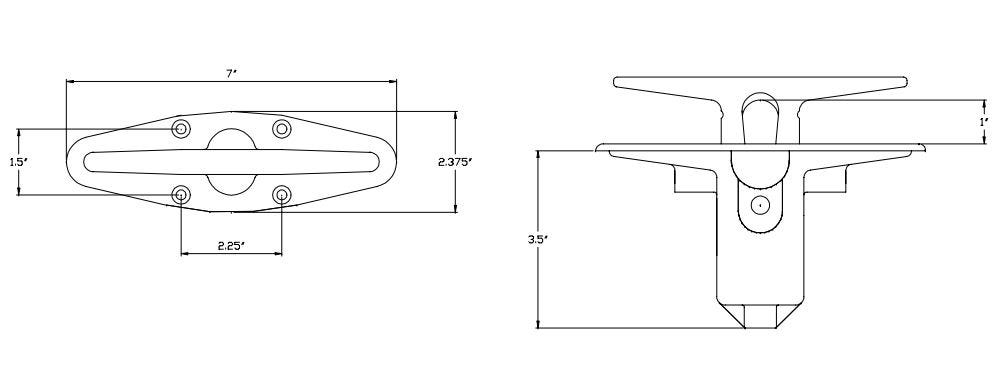

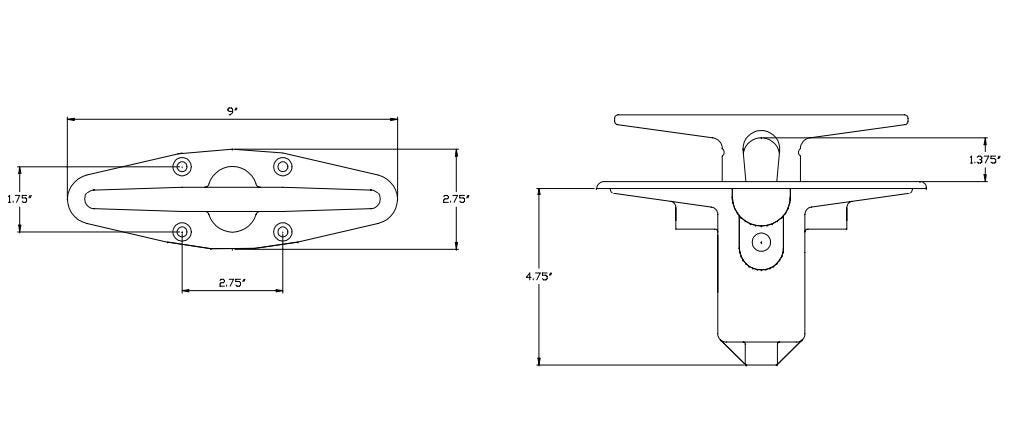

Drawings
