Hybrid Profile Dock Bumper

SKU
As low as: $5.00

Product Details

  • Marine-grade PVC dock edging absorbs shocks and won’t leave marks like rubber
  • UV-stabilized for exceptional durability
  • Easy installation with #8 stainless steel wood screws and finish washers (sold separately)
  • Can be installed on horizontal and vertical surfaces
  • Straight sections don’t get crushed and misshapen during shipping or need to be flattened like coiled rendering
  • Order in 5’ lengths (lower shipping cost) or 10’ lengths (lower cost per foot)
  • Stack lengths on top of each other for additional coverage
  • Available in (3) colors - choose black for less visible marring, white for best visibility, or gray for a clean look
  • 8” Sample sizes available in all 3 colors

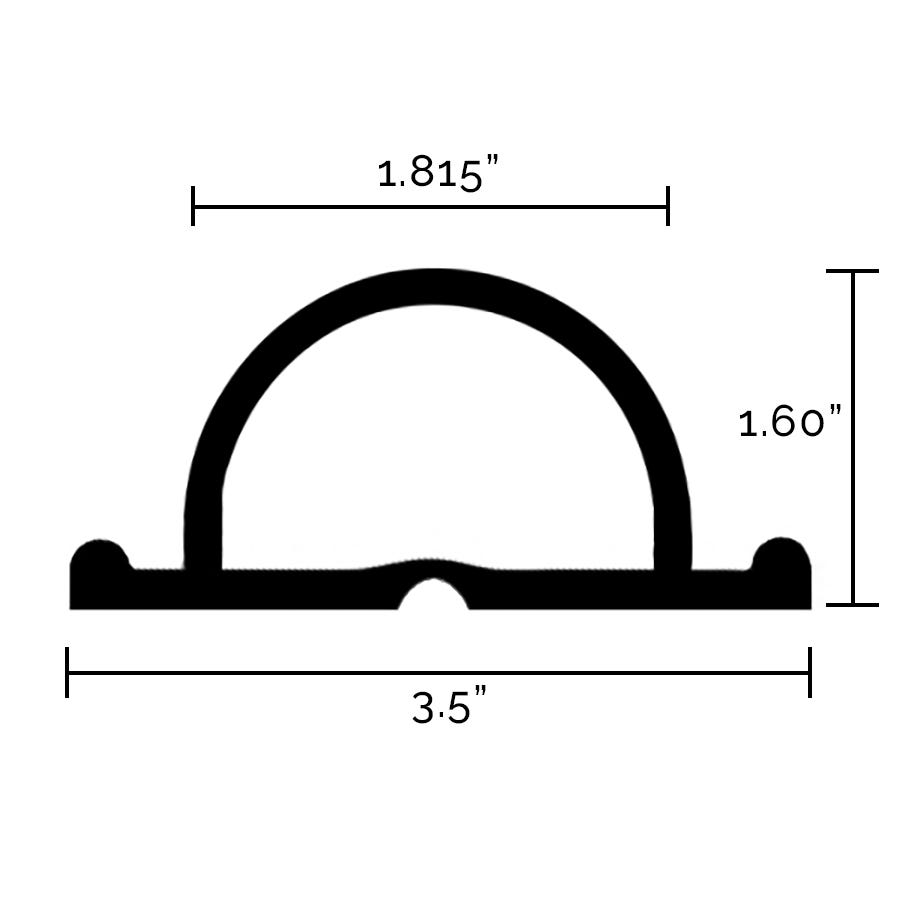

Drawing

Installation Instructions

Required Tools:
Drill
#7 or #8 Phillips Flat Head Screws
Flat or Finish Washers
⅛” Drill Bit

Do a dry fit of each piece before beginning installation to determine the exact placement, alignment, and orientation of each piece. Install the edge below the top plank of the dock. Mark position on the dock and edging to help guide your installation

Drill pilot holes every 6” thru the top and bottom of the bumper and the dock once placement is determined using a ⅛” drill bit. Start on one end

Use 1-1.5” long stainless-steel screws and flat or finish washers to mount the edging to the dock

If not using a corner bumper, the dock edges can be butted up to the corners of the dock, or mitered to form a 90° angle. Cut the sides of the bumper at a 45° angle and fit as closely as possible together at the corners. Seams can be fused with a UV curable adhesive if desired

If using the Flexible Dock Corner, install the corner bumper first with 2 screws in the top and bottom inner corner and 1 screw on the top and bottom outer edges closest to the edging. Install the D-Bumper edging to the dock at the end of the corner bumper
