Livewell Viewing Window:
Allows a quick glance into the livewell without repeatedly opening the lid.Bass Boat Retrofit:
Can be mounted in an existing livewell lid for a practical retrofit upgrade.Fog-Reducing Acrylic:
Specially formulated acrylic is designed to reduce condensation and fogging of the window.Heat Radiation Reduction:
Blocks up to 50% of heat-causing radiation from the sun.Built-in Air Vents:
Integrated vents help remove harmful metabolic gases from the livewell area.Durable Frame:
Frame is composed of King StarBoard with a 0.5" thick clear acrylic viewport.Hardware Included:
Installs with 6 included #8-32 machine screws and lock nuts.
Product Details
Tech Specs
| Frame Material | King StarBoard |
| Viewport Material | 0.5" thick clear acrylic |
| Size Options | 9" L x 6" W, 10" L x 8" W, and 13" L x 7" W |
| Installation | Retrofit mount in existing livewell lid |
| Included Hardware | 6 #8-32 machine screws and lock nuts |
| Ventilation | Built-in air vents |
| Acrylic Feature | Designed to reduce condensation and fogging |
| Sun Protection | Blocks up to 50% of heat-causing radiation |
| Model Fitment | 13" L x 7" W viewport fits Nitro Z20 model bass boats |

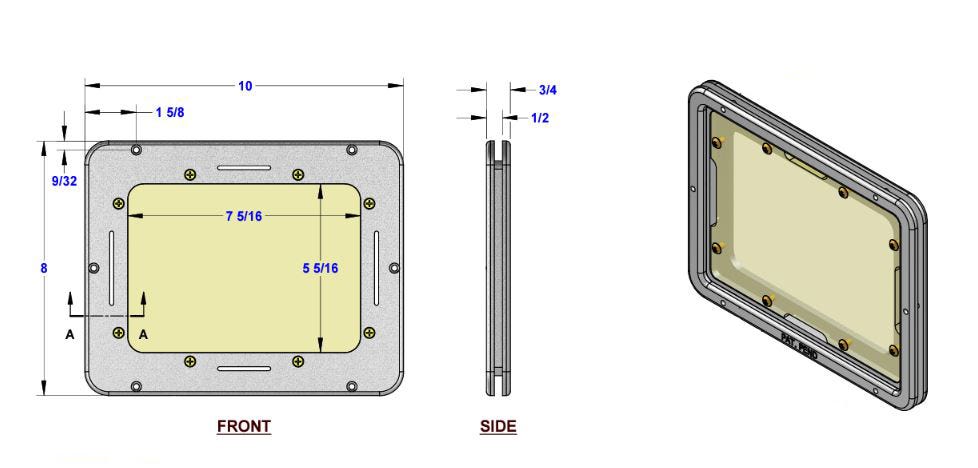

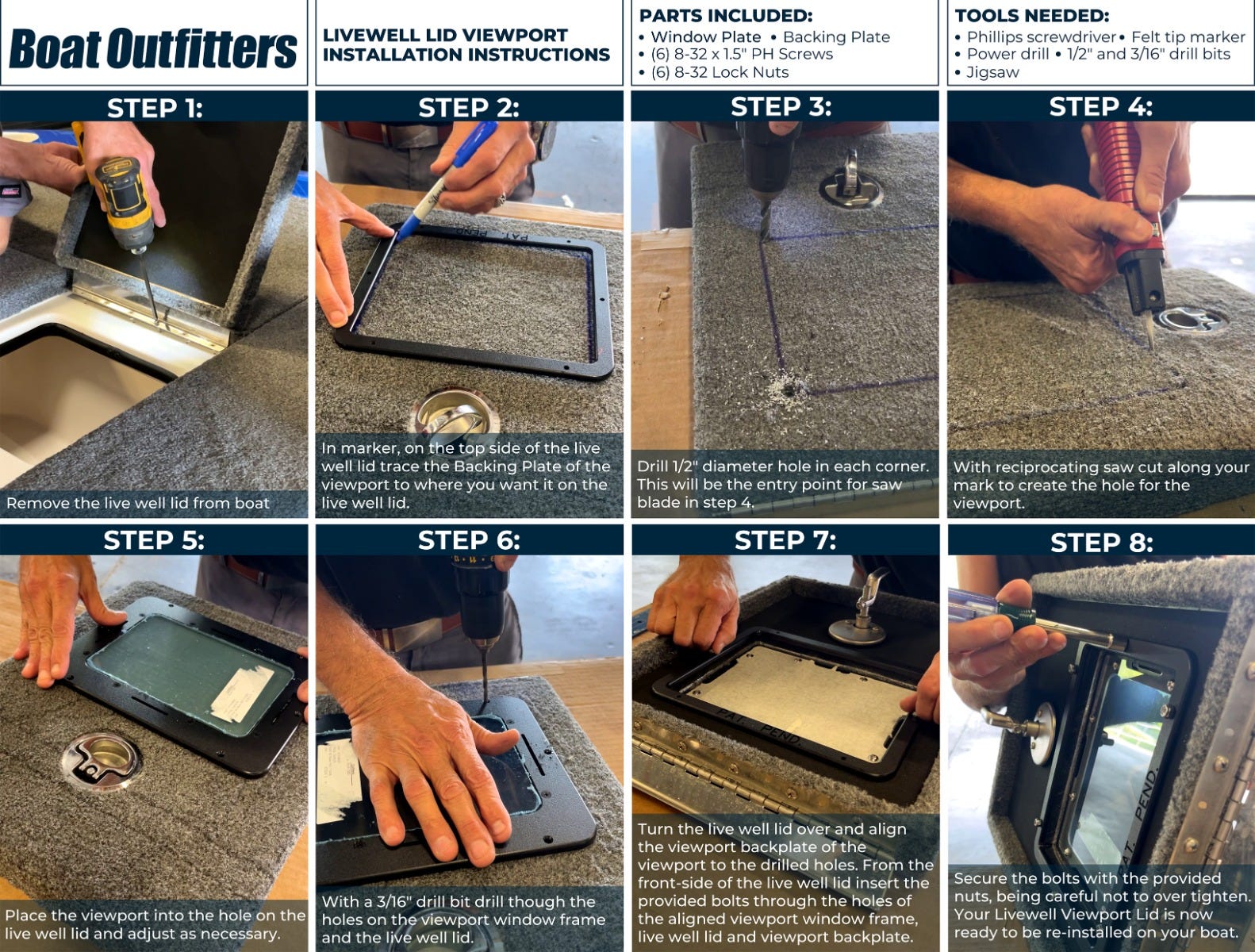

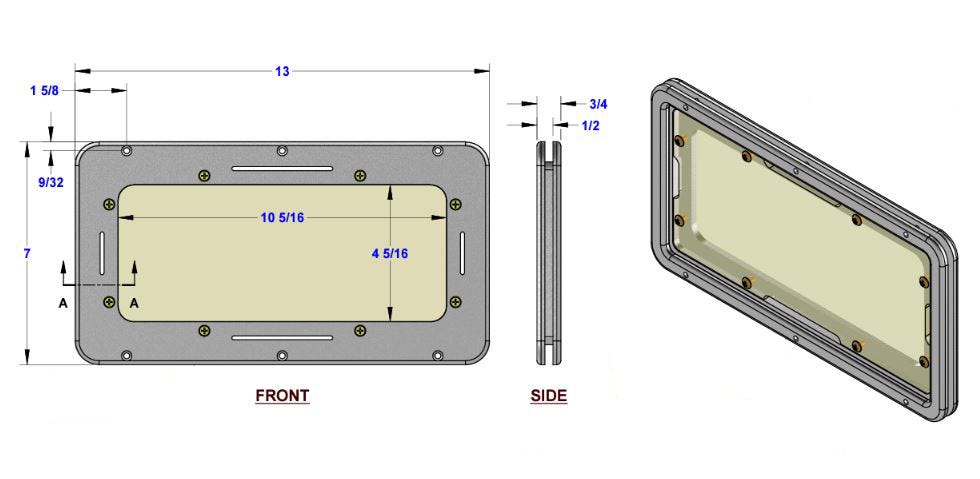

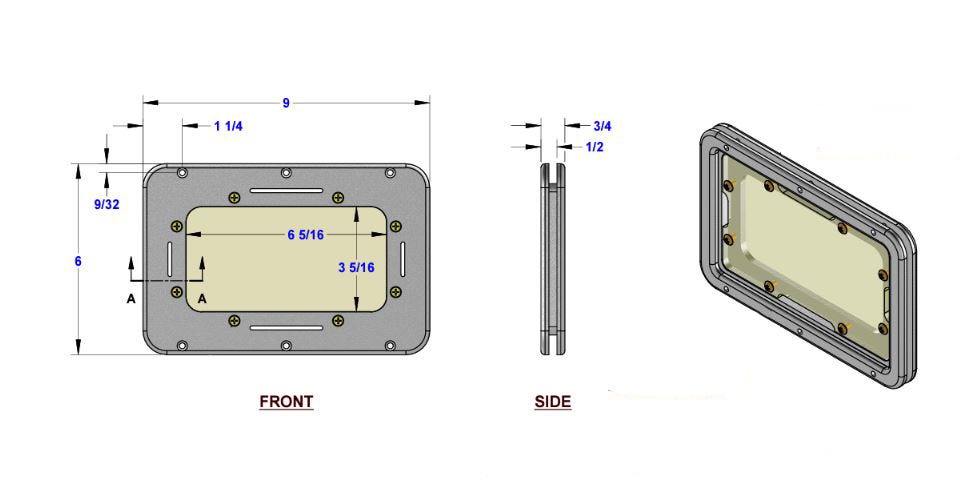

Drawings & Installation Instructions
