VIEW
260-0576-CP
Pull Up Cutting Edge Cleats - Sleek Base
SKU
260-0576-CP
As low as
$34.87
Please Select
Select your product options to view availability.
Key Features:
- Forged stainless steel for long lasting corrosion resistance and durability
- Nylon Legs reduce friction and eliminate rattle
- Lock nuts (included) ensure secure and long lasting installation
- "Cutting Edge" design ensures flush fit - even on uneven surfaces
Reviews
5.0 / 5.0
1 Review
Works perfect,
Great replacement for 2 on my boat that went bad on me..nice part.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Questions / Answers
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions
Browse 5 questions
and 5 answers
What's included with the cleat? Bolts, Nuts, Backing Plate, Gasket, Template? Any special tools or bits required to install?
BEST ANSWER: Hello Bernard, the nuts are included on the cleats for installation but there are no gaskets or backing plates. The mounting template should be with it but we also have those shown under the documents tab on page for these cleats. Please let us know if you have any other questions or if there is anything else we can do for you
- Reply
- Inaccurate
- Brian O Staff on May 15, 2018
I’m looking for a replacement for an existing cleat. Can I get the dimension between the mounting screws and the dimension between the nylon legs? Thank you

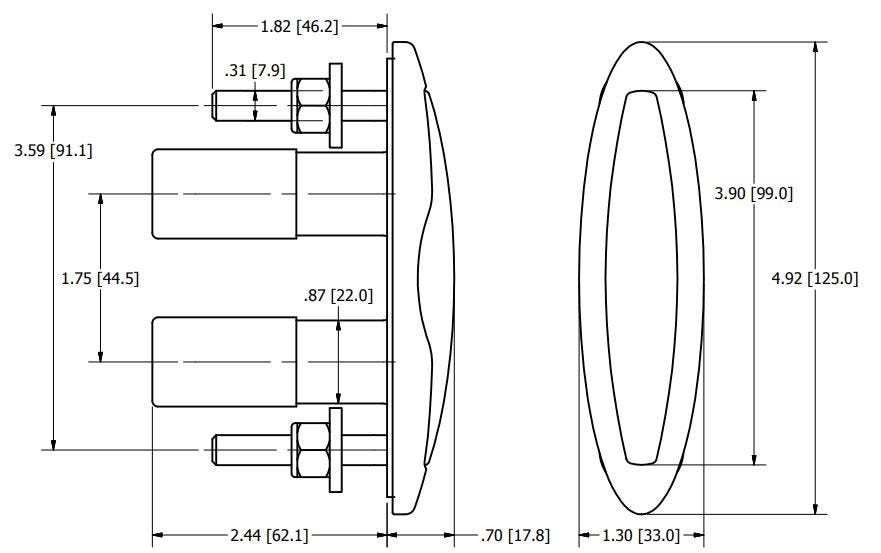

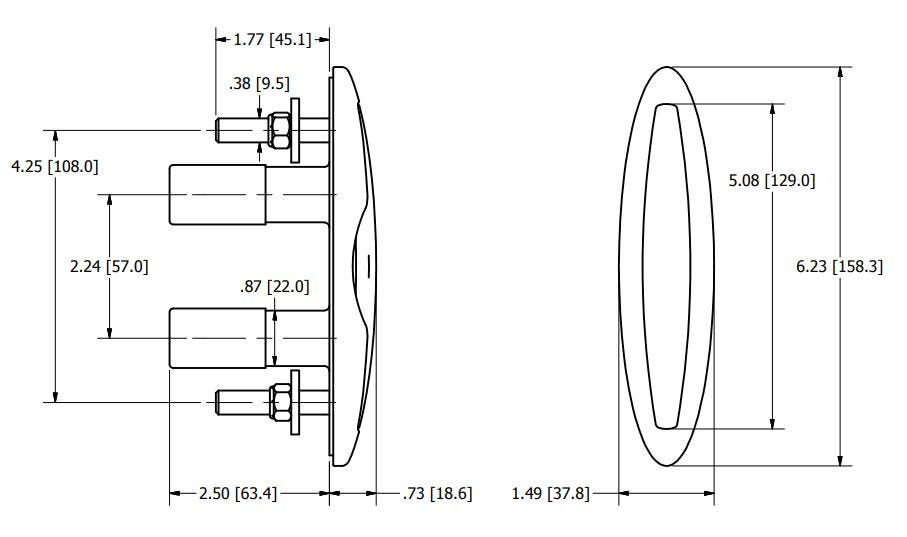

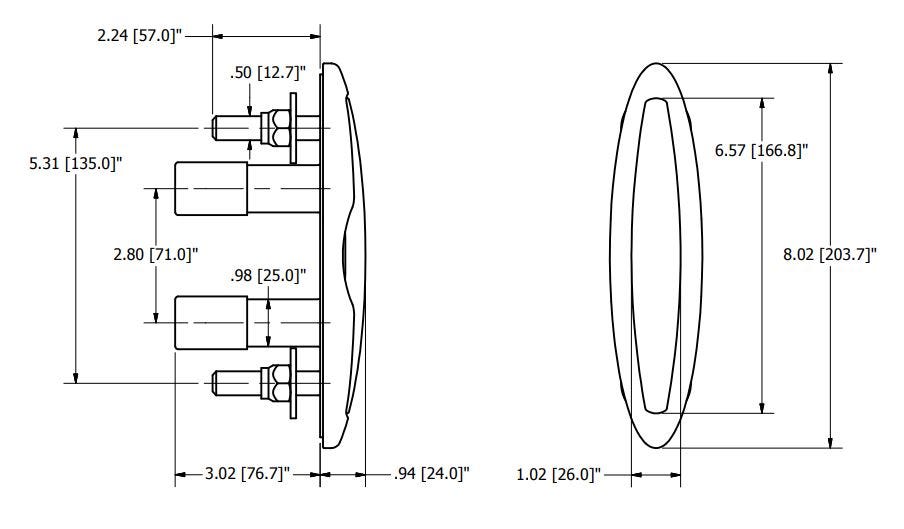

BEST ANSWER: Great question! We have drawings available for the various sizes at the following links.
https://www.boatoutfitters.com/media/wysiwyg/product-content/4_Inch_Sleek_Drawing.JPG
https://www.boatoutfitters.com/media/wysiwyg/product-content/6_Inch_Sleek_Drawing.JPG
https://www.boatoutfitters.com/media/wysiwyg/product-content/8_Inch_Sleek_Drawing.JPG
https://www.boatoutfitters.com/media/wysiwyg/product-content/4_Inch_Sleek_Drawing.JPG
https://www.boatoutfitters.com/media/wysiwyg/product-content/6_Inch_Sleek_Drawing.JPG
https://www.boatoutfitters.com/media/wysiwyg/product-content/8_Inch_Sleek_Drawing.JPG
- Reply
- Inaccurate
- Jared W Staff on Apr 20, 2018
do they come with a nylon pad to set on to keep from scraching paint when mounting .?
BEST ANSWER: Great Question Les,
There is a nylon pad that is sandwiched between the deck and the metal components of the cleat. The nylon pad is not visible when the cleat is attached to the vessel.
Thanks
There is a nylon pad that is sandwiched between the deck and the metal components of the cleat. The nylon pad is not visible when the cleat is attached to the vessel.
Thanks
- Reply
- Inaccurate
- Stephen P Staff on Mar 28, 2018
Hi guys do theses cleats have a load rating or has any load testing been done?
BEST ANSWER: Hello, as far s I know there has not been any load testing done on the cleats. Cleats in general, unless being used to lift the boat, will hold up but the mounting area around them or the fasteners would be where a failure would occur but that is a very good question! If you have a specific application in mind you may want to give us a call and we can discuss your project to see what option we have available that will work for you.
- Reply
- Inaccurate
- Brian O Staff on Jan 4, 2018
Is this Chinese made? 304 or 316 stainless?
BEST ANSWER: Hi Capt Kent, great questions. These cleats are 316 stainless steel. They are manufactured overseas, in either China, Thailand, or Vietnam.
- Reply
- Inaccurate
- Matt Porter Staff on Jul 30, 2017
