Pull Up Cutting Edge Cleats - Wide Base

SKU
260-0579-CP
As low as $37.74
Please Select
Select your product options to view availability.
Free Shipping: Qualified!
This item qualifies for free shipping on orders over $150! (Continental US only)

Key Features:

  • Forged stainless steel for long lasting corrosion resistance and durability
  • Nylon Legs reduce friction and eliminate rattle
  • Lock nuts (included) ensure secure and long lasting installation
  • "Cutting Edge" design ensures flush fit - even on uneven surfaces
Reviews
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Deck cleats
Great product and service. Love the drip less feature, as these penetrated the deck into my cabin. Installed easily and perform flawlessly
May 18, 2018
Purchased
7 months ago
Very Heavy Duty & well made
Well made & presented product. Installation Drilling Template/ Mounting Guide was not included with the product. Had to search http://www.gemlux.com/catalog/deckhardware-cleats-cuttingedge/68505 to get the Installation & Engineering Details.

Yes I would recommend this product
January 23, 2018
Purchased
11 months ago
Questions / Answers
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions Browse 5 questions and 5 answers
What is the width of the base. Want to install on 2520 Parker and cover up current cleat bolt holes. Thanks.
Anthony Berry on Oct 11, 0017
BEST ANSWER: Hey Anthony, the width of these wide base cleats is 2.40".
I own a Chris craft 28 Corsair 2009 and lost a cleat, are these the same size as my originals?
Alain B on Jun 24, 2018
BEST ANSWER: Hello Alain, unfortunately we would not be able to match up hardware items by boat model. The best thing to do would be to measure the mounting area and hole on your boat to compare to this unit. If you have any other questions or need any other measurements please feel free to give us a call and one of our sales associates would be happy to assist you.
I can’t find any information on how to install these. I need to mount them where I do not have access to the backside of them. Can you please point me in the right direction?
Dan M on Jun 15, 2018
BEST ANSWER: Hi Dan, unfortunately they require access to the underside to install.
Do you have specifications on the measurements, width between the bolts, total length, total width, how diameter of the bolts?
Eric S on Jun 6, 2018
BEST ANSWER: Hi Eric, I unsure of whether you need the measurements for the 6" or the 8". So if you click on the documents section of the product page you can see the dimensions your looking for both sides.
Will this cleat replace a broken cleat on a 2004 searay model 180?
Arthur C on May 16, 2018
BEST ANSWER: Hi Arthur, I am not sure if this cleat is a direct replacement for the cleats on your 180 Sea Ray, but if you review the dimensions of the cleats, which I have linked here, then you might be able to determine if they will work for you. Thanks Arthur!

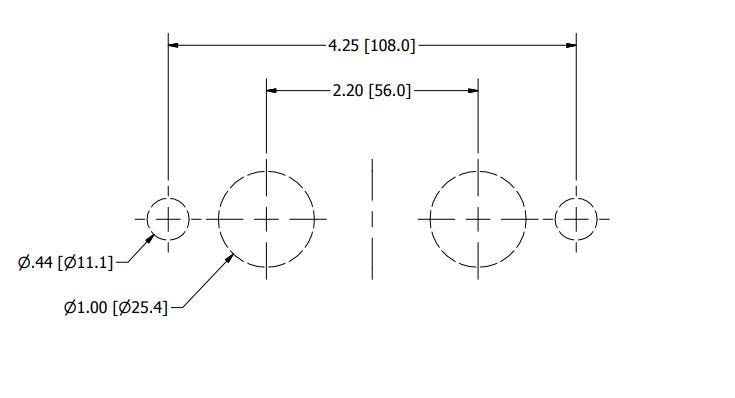

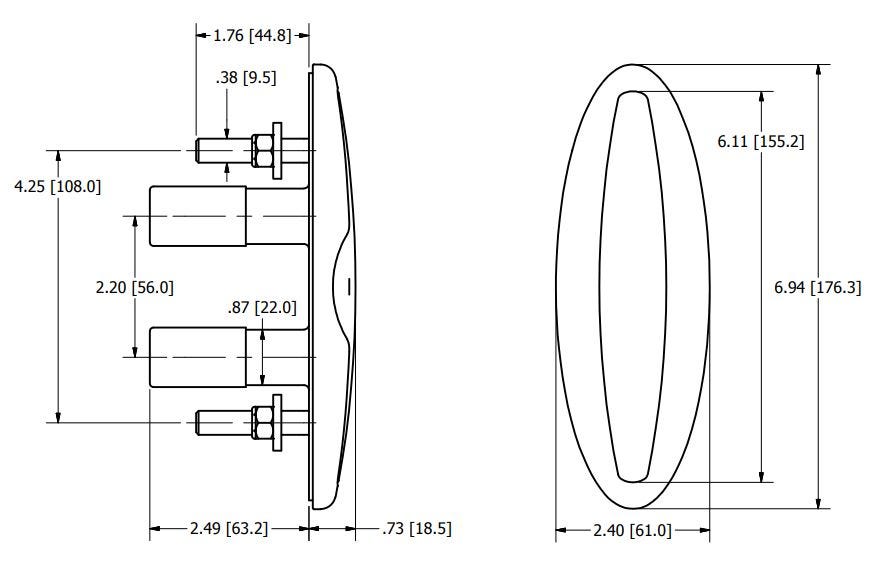

6" Cleat: https://www.boatoutfitters.com/media/wysiwyg/product-content/6_Inch_Wide_Drawing.JPG

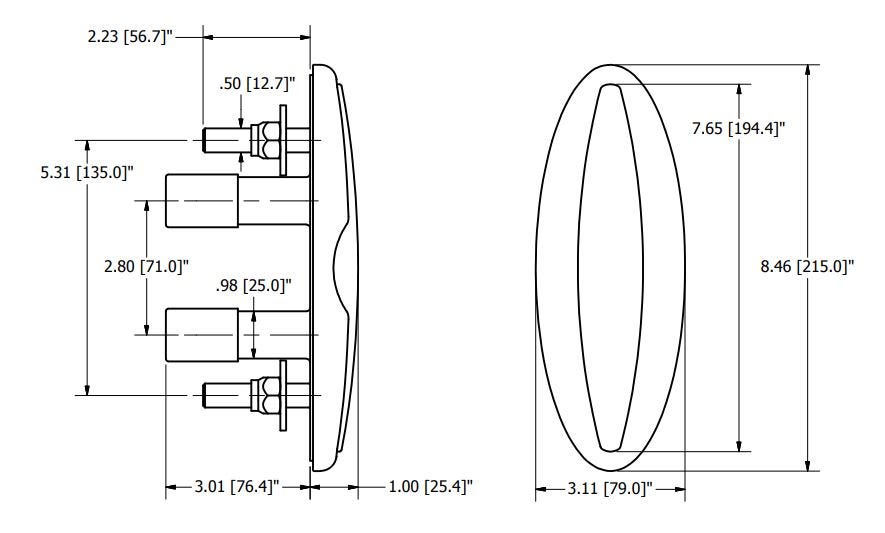

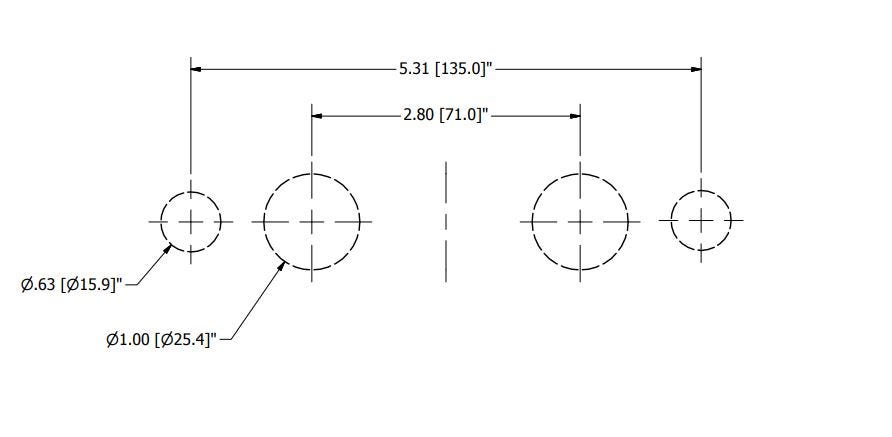

8" Cleat: https://www.boatoutfitters.com/media/wysiwyg/product-content/8_Inch_Wide_Drawing.JPG
