Sea Ray Transom Door Inserts

SKU
13770-80128-CP
$211.42
Industry Leader
Industry
Leader
Helping Boaters
Helping Boaters Since 1979
Honest Expert Advice
Honest, Expert Advice
Satisfaction Guarantee
Satisfaction Guarantee

Key Features:

  • Replacement Sea Ray Transom Door Inserts
  • Composed of durable tinted acrylic
  • 16 different size/shape options - all fabricated for Sea Ray over the years
Important Notes
  1. . This sale page is for the acrylic insert only and does not include the metal frame.

  2. . The inserts are not pre-drilled for attaching to the metal frame. This was a secondary opperation done by hand during the original installation process therefore the hole locations are not in our programs. You will need to overlay your old piece and drill out your mounting holes.

  3. We know what model the parts were originally designed for, however boat builders occasionally utilize items across different models without informing us. Given that, the model cross reference list below is simply a guide and you must compare your existing piece to our drawings to confirm a match.

  4. These parts are cut and built to order and therefore are not able to be returned due to size mismatch. Please measure twice order once!

Available Transom Door Inserts

Part Number Boat Model* Thickness Max Width Max Height Drawing

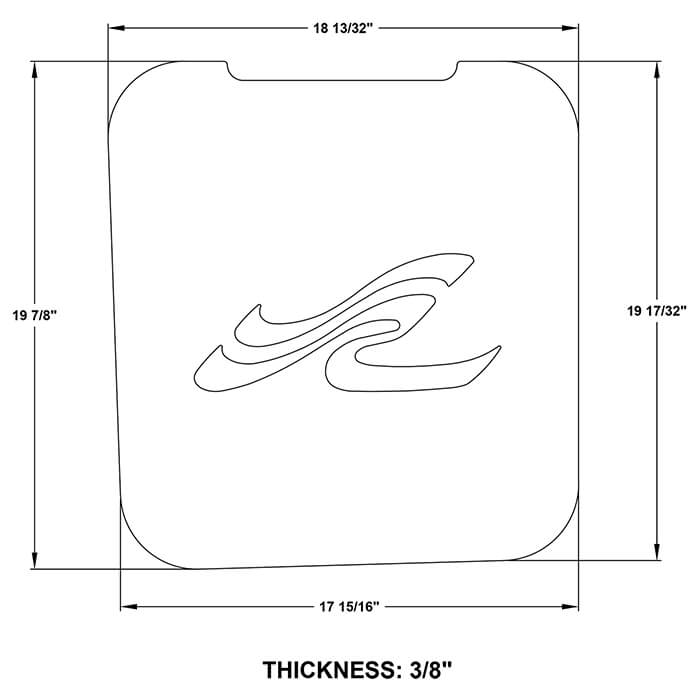

13770-80128 43 DA 3/8" 18-13/32" 19-7/8"

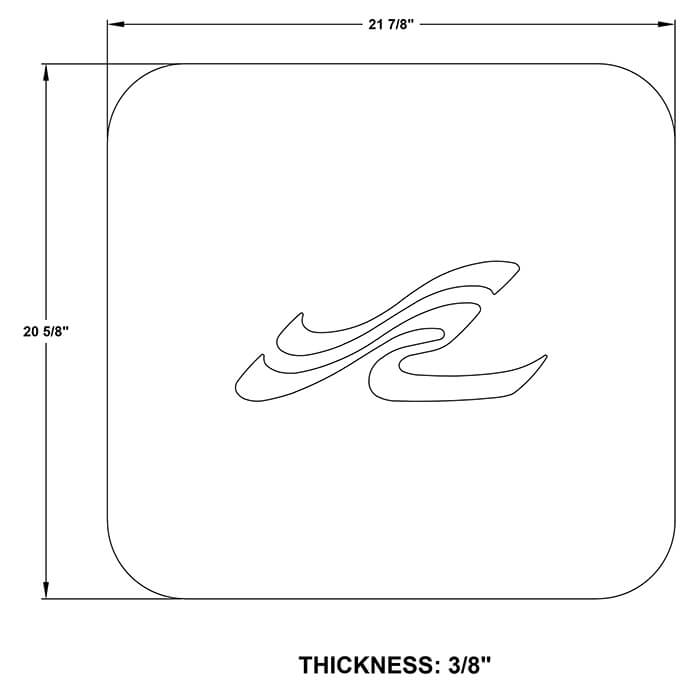

13770-80129 55 DA 3/8" 21-78" 20-5/8"

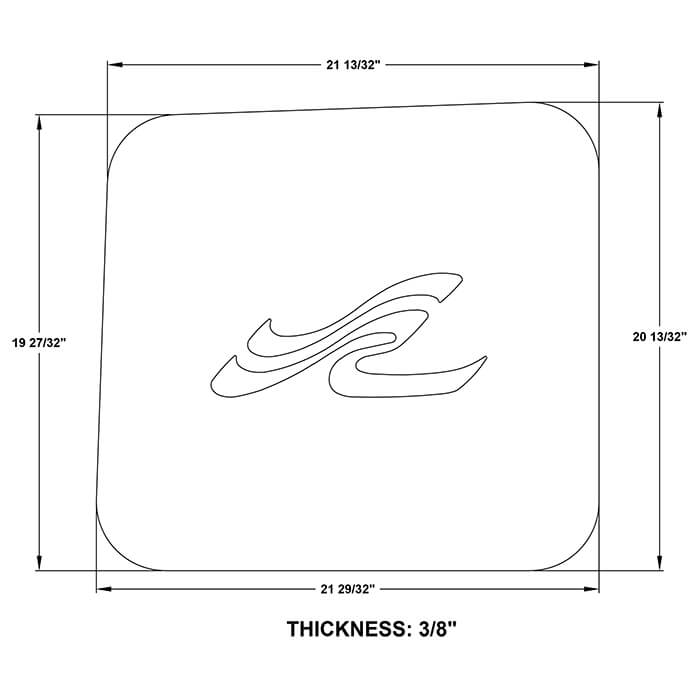

13770-80130 60 DA (Port) 3/8" 21-29/32" 20-13/32"

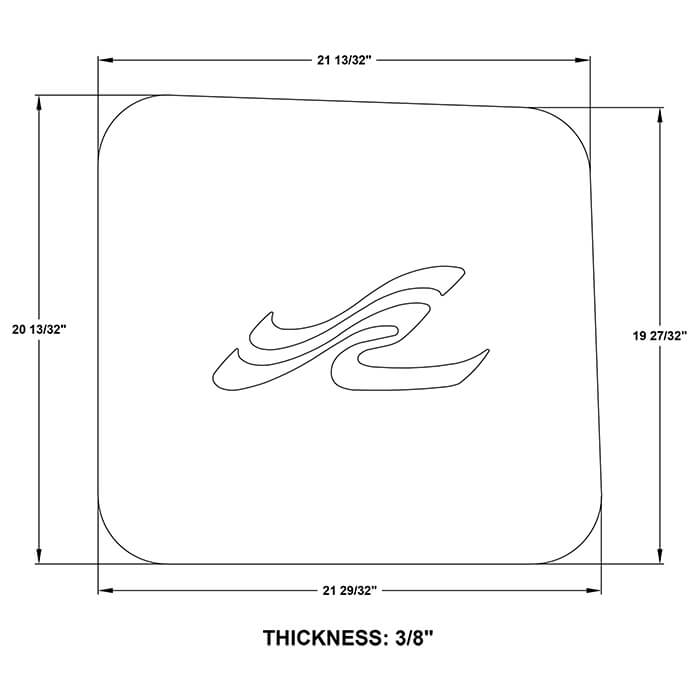

13770-80131 60 DA (Stbd) 3/8" 21-29/32" 20-13/32"

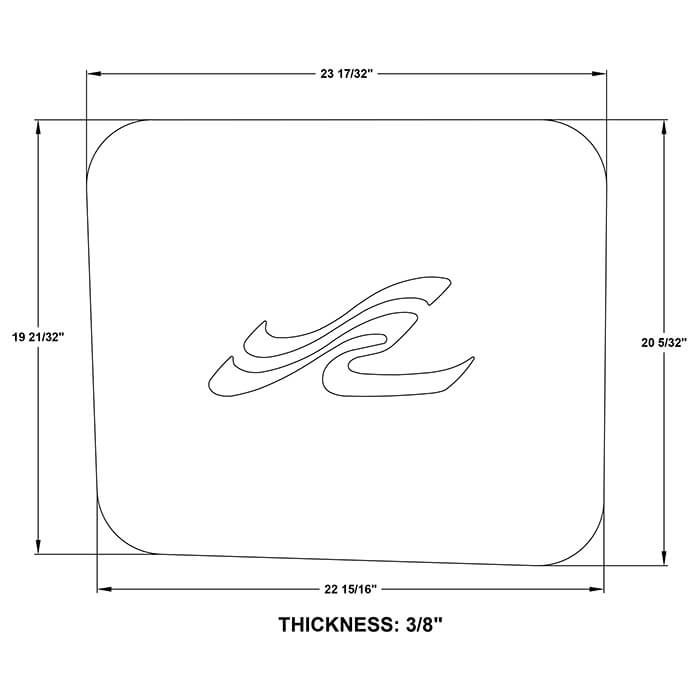

13770-80132 50 DA 3/8" 23-17/32" 20-5/32"

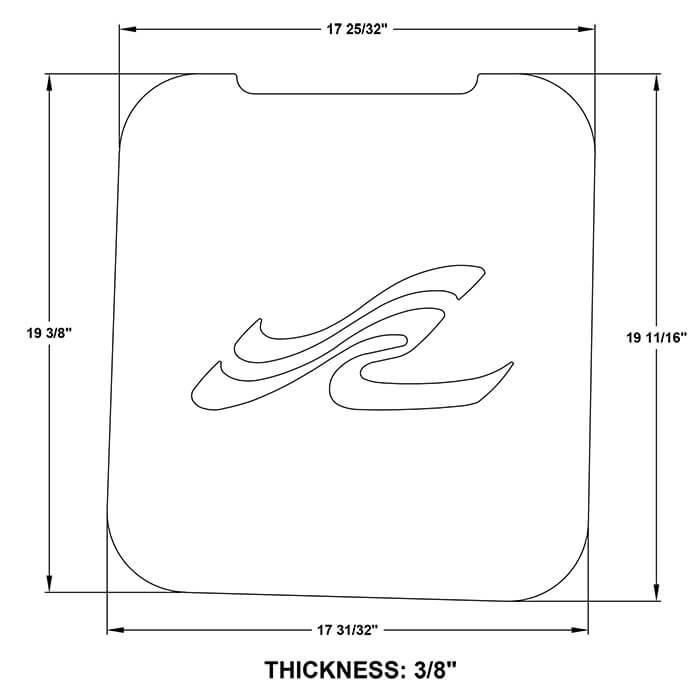

13770-80134 450 DA 3/8" 17-31/32" 19-11/16"

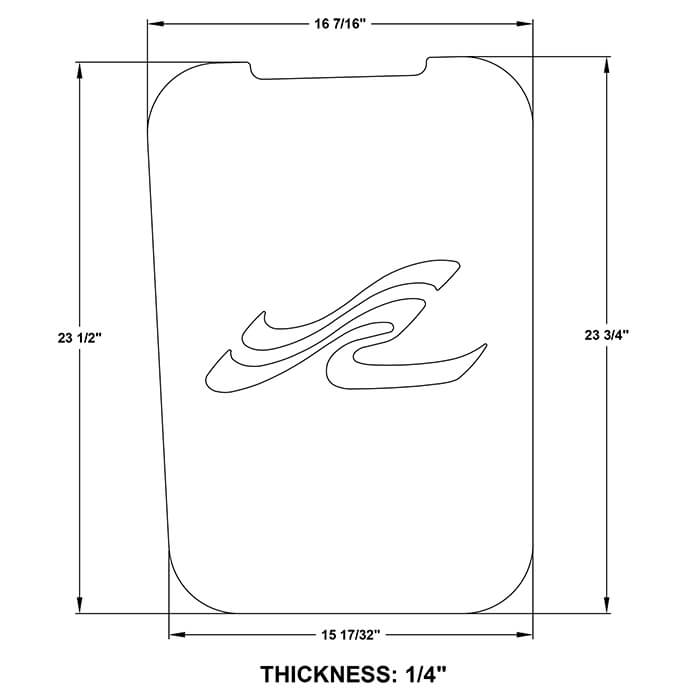

13770-80135 450 DB 1/4" 16-7/16" 23-3/4""

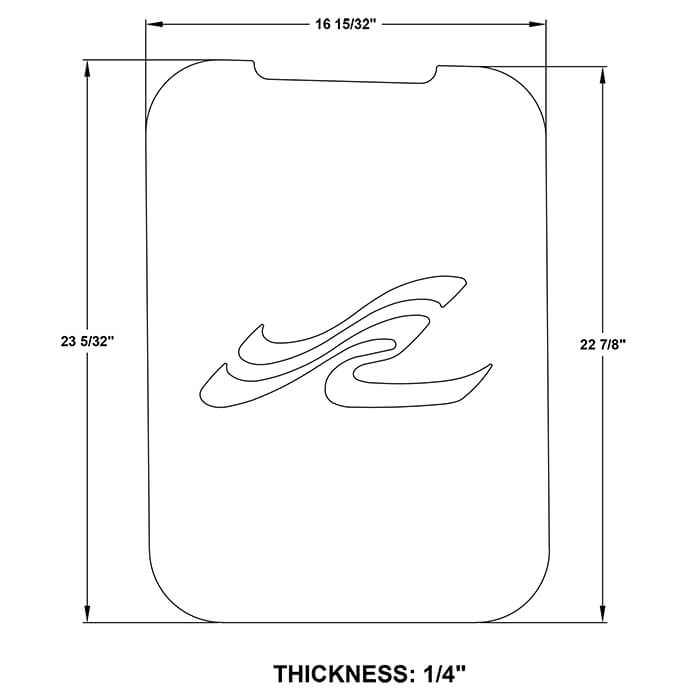

13770-80136 410 DA 1/4" 16-15/32" 23-5/32"

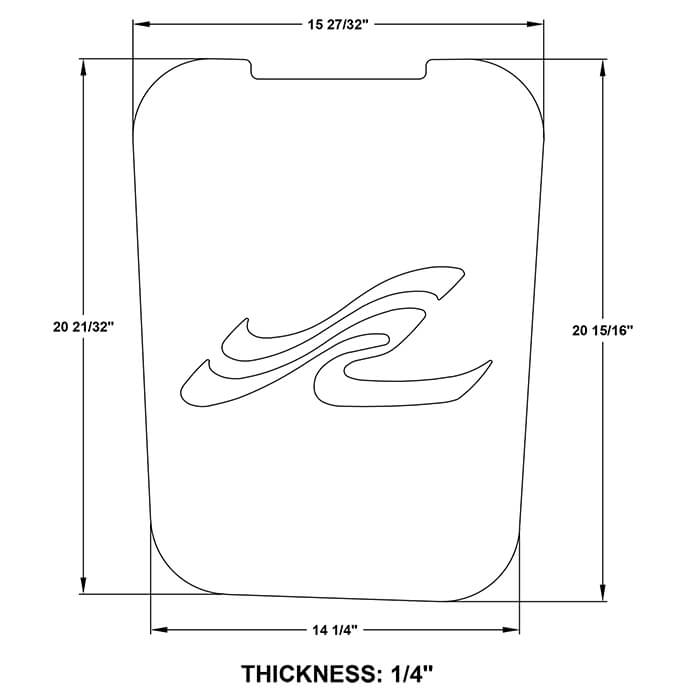

13770-80138 510 DA 1/4" 15-27/32" 20-15/16"

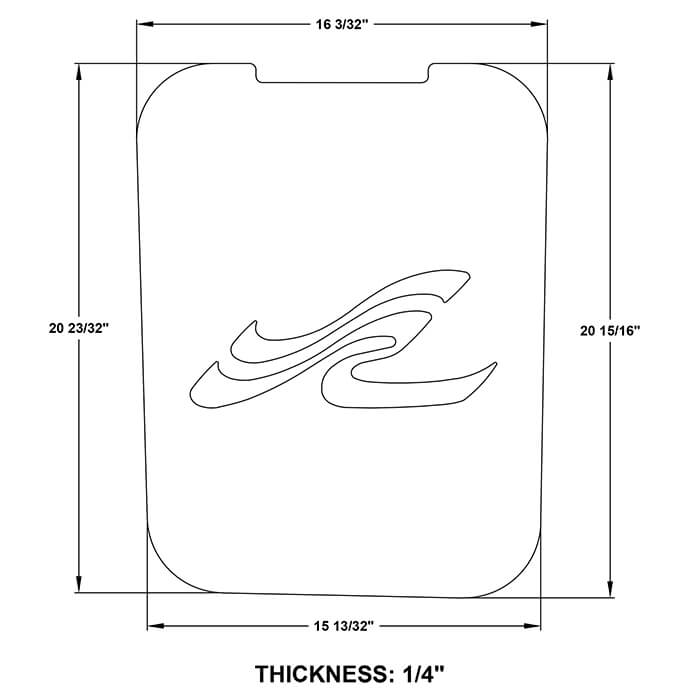

13770-80139 350 DA 1/4" 16-3/32" 20-15/16"

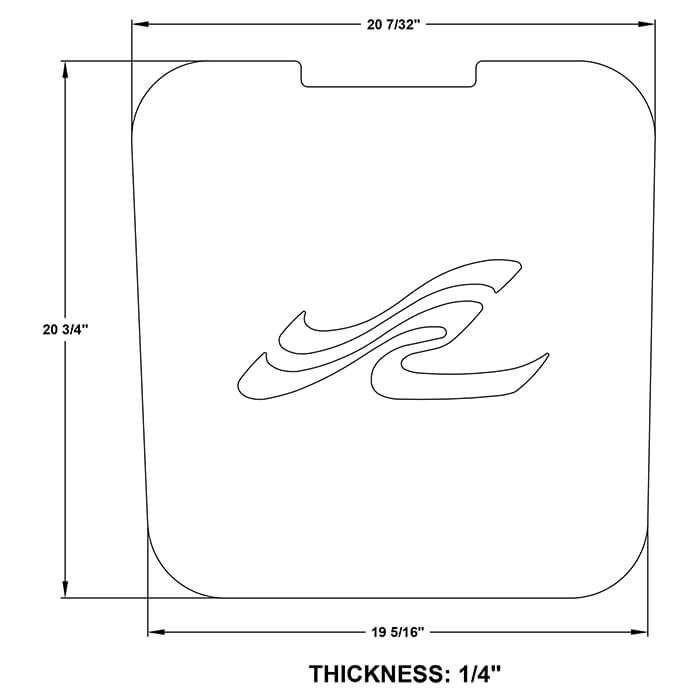

13770-80140 510 DB 1/4" 20-7/32" 20-3/4"

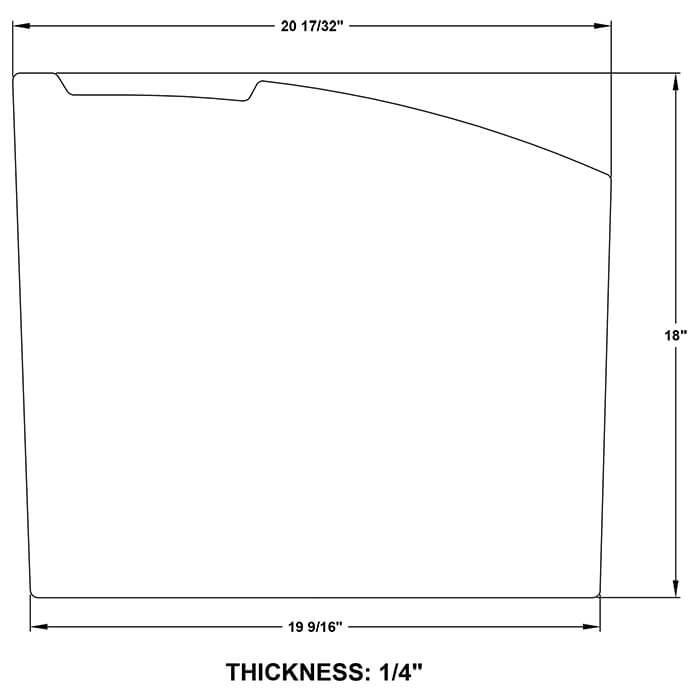

13770-80141
Port/Stbd 2 Piece Kit
650 FLY 1/4" 20-17/32" 18"

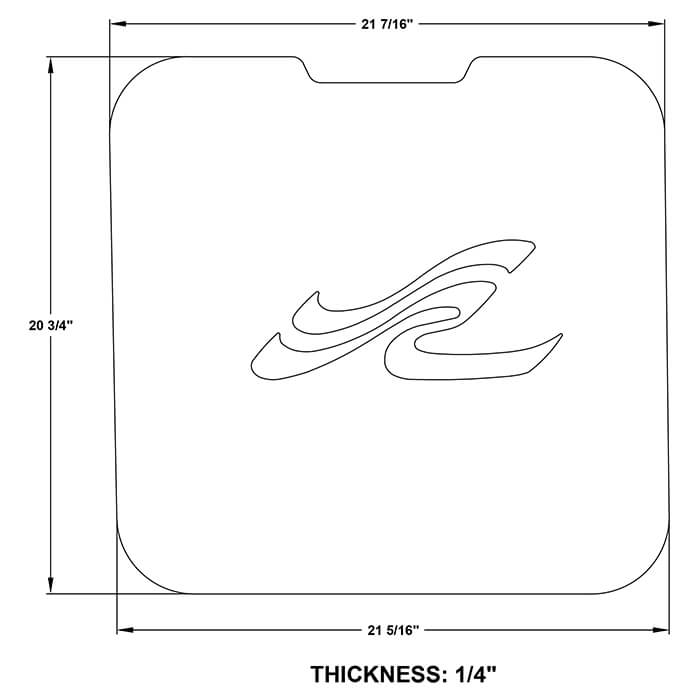

13770-80142 470 DA 1/4" 21-7/16" 20-3/4"

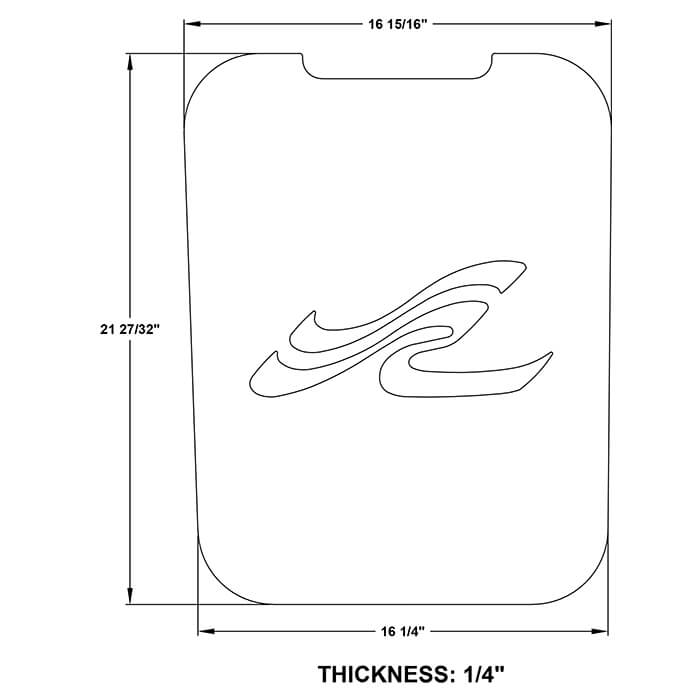

13770-80143 390 and 450 FLY 1/4" 16-15/16" 21-27/32"

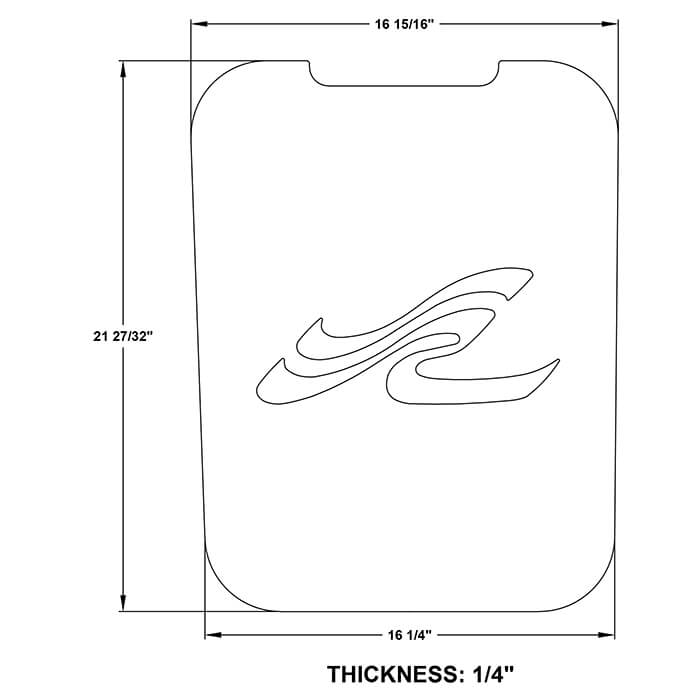

13770-80144 450 FLY 1/4" 16-15/16" 21-27/32"

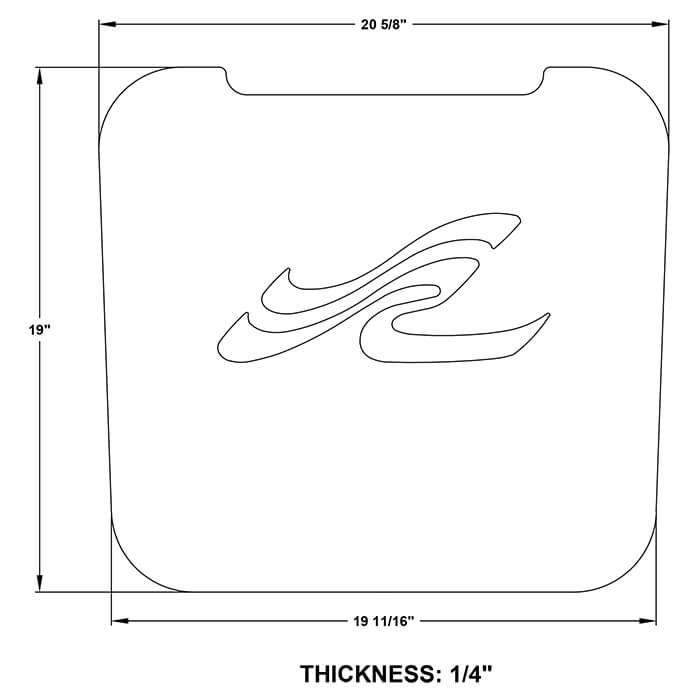

13770-80145 550 FLY 1/4" 20-5/8" 19"
