- Protects electrical circuits from short circuit thermal overloads with a push button reset
- Sealed against dust & water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- Provides robust manual circuit switching for reliable live load switching
- High Voltage (72 Vdc) Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications
- High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power
- Ignition protected safe for installation in closed compartments with potentially explosive gases
- Made with stainless steel hardware, serrated flange nuts, and silicone terminal covers to withstand the harsh marine environment
- Overall Measurements: 3.39" x 1.9" x 1"
Surface Mount Circuit Breakers - Egis 85 Series
SKU
As low as:
$34.20
As low as:
Regular Price
Product Details

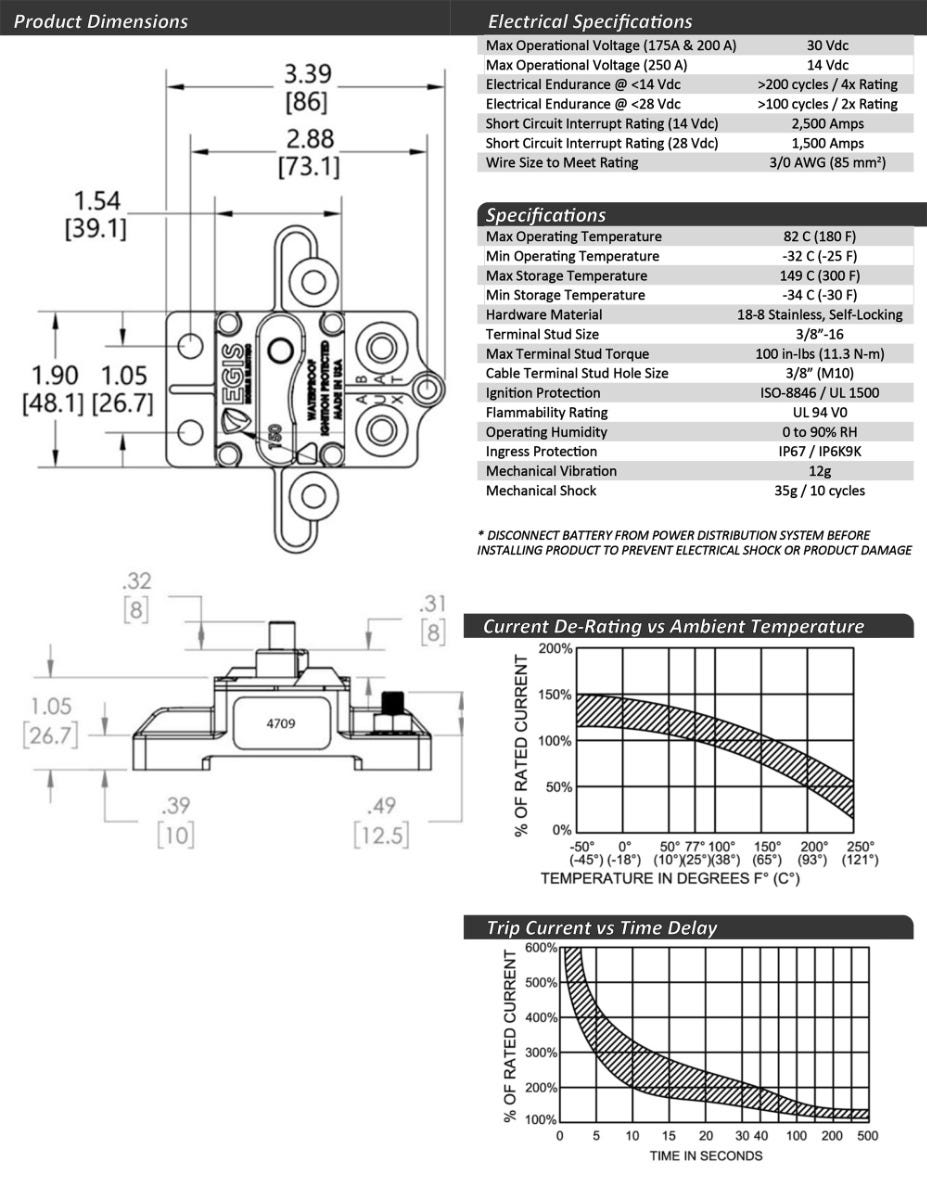

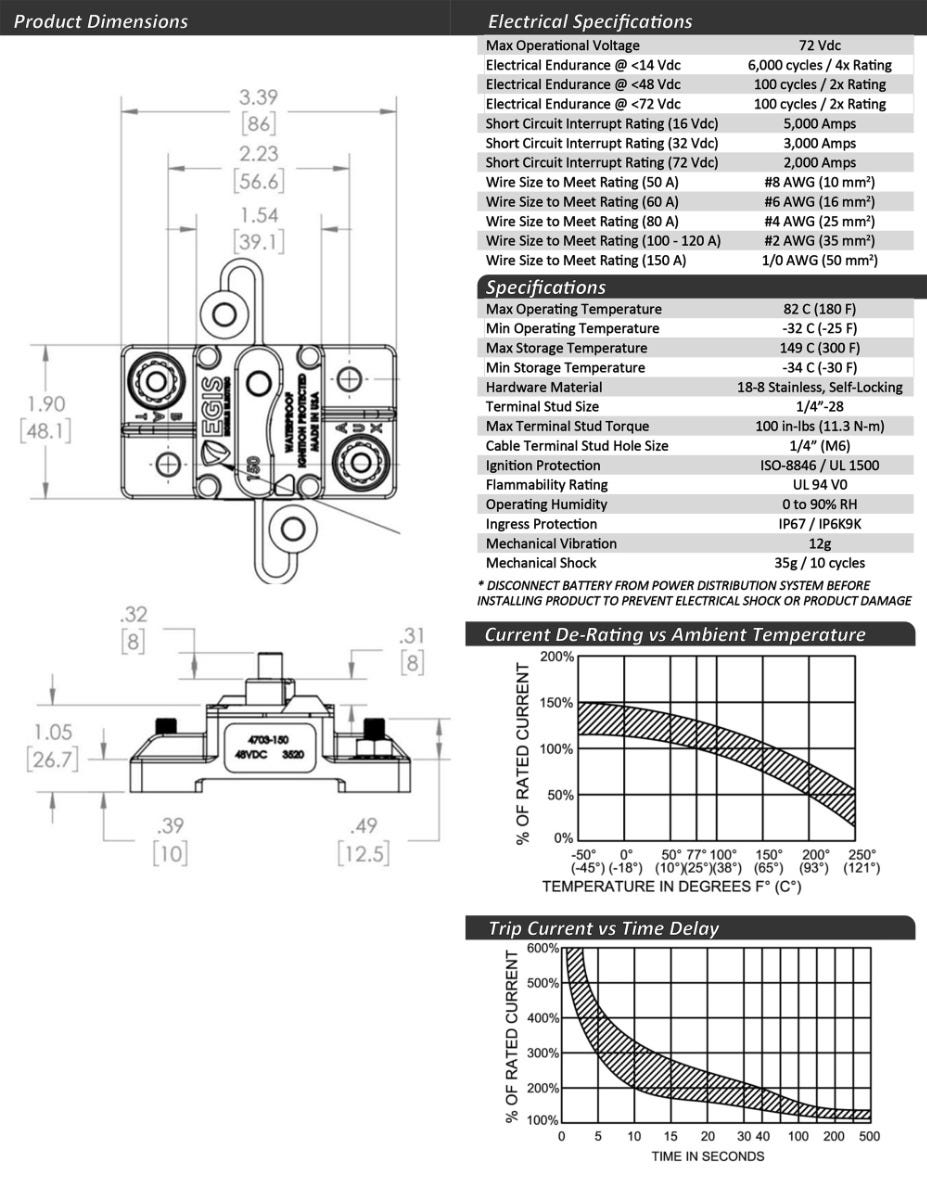

Drawing & Specifications
Instructional Videos
