Lowe Pontoon Drawer Unit
SKU
13770-54205-CP
$999.81
Please Select
Select your product options to view availability.

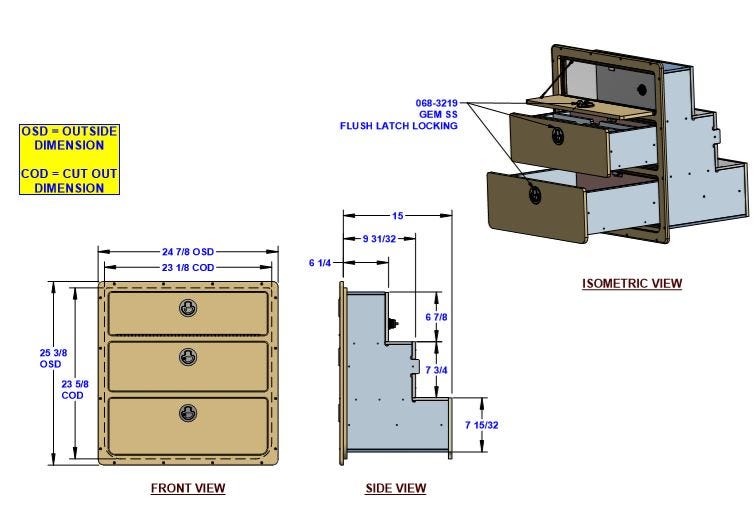

Critical Dimensions
| Measures | 25.375" tall x 24.875" wide |
| Fits Hole Cutout | 23.625" tall x 23.125" wide |
| Required Depth | 15" |
Need a Custom Size?
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Features
Entertaining while on the water requires stuff - lots of stuff! Snacks, towels, sunscreen, snorkels, tackle, wine bottles, the list goes on and on. Sure, the under-seat storage is great for life jackets, but not at all practical for regularly accessed essentials. Take the stress and mess out of your next trip by adding convenient, easily accessible storage to your boat. Replace that pop-up changing room in your lounge backrest. Next time you’re asked “Where should I toss this?”, how great would it be to have an answer?!
Entertaining while on the water requires stuff - lots of stuff! Snacks, towels, sunscreen, snorkels, tackle, wine bottles, the list goes on and on. Sure, the under-seat storage is great for life jackets, but not at all practical for regularly accessed essentials. Take the stress and mess out of your next trip by adding convenient, easily accessible storage to your boat. Replace that pop-up changing room in your lounge backrest. Next time you’re asked “Where should I toss this?”, how great would it be to have an answer?!
This part is supplied predrilled with face mounting holes.
The simplest and easiest mounting option is to mount your components through the front face of the framework using stainless steel screws or bolts. This frame is sold pre-drilled and countersunk for #8 stainless marine fasteners.
Face Mounting with Screws (Basic Steps)
- Carefully measure and cut your hole cutout.
- Place your box into your cutout.
- Drill pilot holes through the pre-drilled holes in your frame.
- Fasten #8 stainless screws into you pilot holes until box is secure.
Face Mounting with Bolts (Basic Steps)
- Carefully measure and cut your hole cutout.
- Place the box in to your cutout.
- Drill pilot holes through the pre-drilled holes in your frame.
- Slide stainless steel 8-32 bolts through frame & pilot holes.
- Tighten lock nut on bolts from rear until boat storage box is secure.
