Sea Hunt Escape 23 Wine Cabinet

SKU
13770-80634F
  $846.89
Ships FREE on on orders over $150!

Storage Unit Details

Critical Dimensions
Measures 20" tall x 17" wide
Fits Hole Cutout 19" tall x 16" wide
Required Depth 10.6875"
Need a Custom Size?
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Features

Now you can enjoy time on your boat by assuring your wine bottles and glasses are stylishly secure! This custom-designed cabinet mounts into the lounger arm of your Sea Hunt Escape 23 boat. It features secure glass storage systems as well as storage for stainless steel wine chillers keeping your wine both cool and secure. The cabinet includes a mounted bottle opener, cheese knife, and corkscrew holder.

Storage Area securely holds:

  • (2) Wine Glasses
  • (2) Champagne Flutes
  • (4) Rocks Glasses
  • (3) Wine Bottles
  • (2) Wine Chillers
  • (1) Bottle Opener
  • Cheese Knife, Wine Corkscrew, and Bottle Opener

Installation Instructions

This part mounts through the inside flange of the aluminum frame

Aluminum framed units with inside mounting provide an extremely low profile flush look. This mounting style requires at least 1/2" of panel thickness. If you do not have this wall thickness available, you must add build up strips around the inside of your cutout.

Download Full Installation Instructions

Inside Mounting (with 1/2" of Fiberglass)
  1. Carefully measure and cut your hole cutout.
  2. Evaluate wall thickness to confirm 1/2" of material to screw in to.
  3. Place the box in to your cutout.
  4. Drill pilot holes through the pre-drilled holes on the inside flange of your tackle box.
  5. Fasten #6 x 1 1/4" screws in to your pilot holes until box is secure.

Inside Mounting (without 1/2" of Fiberglass)
  1. Carefully measure and cut your hole cutout.
  2. Screw mounting strips around the inside opening to build up your available wall thickness.
  3. Place the box in to your cut out.
  4. Drill pilot holes through the pre-drilled holes on the inside flange of your tackle box.
  5. Fasten #6 x 1 1/4" screws in to your pilot holes until box is secure.

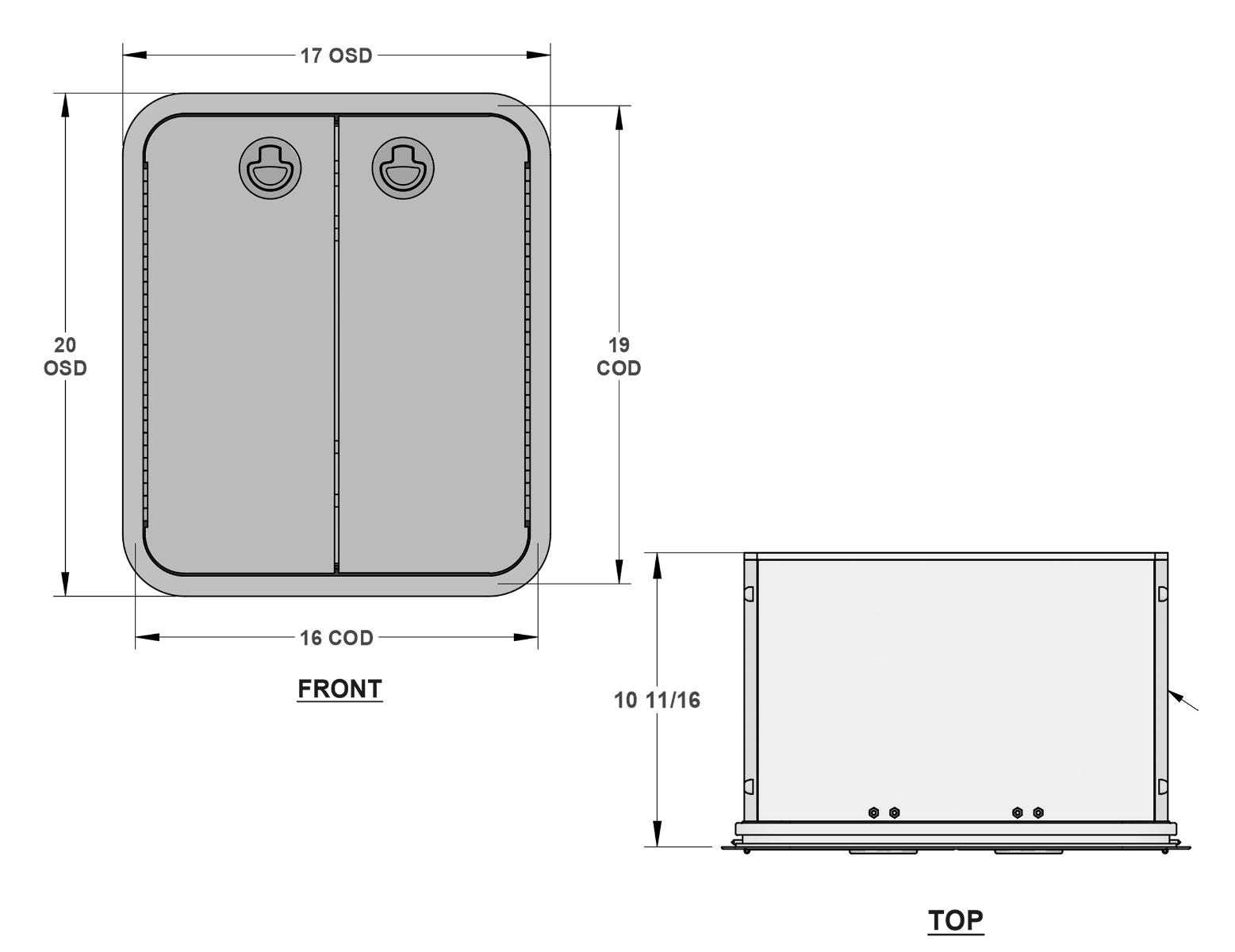

Drawing

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
How To
Installing an Inset Face-Mount Storage Unit
