Stainless Steel Butt Hinge 3" x 1.5"
SKU
058-3749
$10.69
In Stock
Orders before 2PM EST ship same day!
When will this arrive?
Key Features:
- Stainless steel butt hinge designed to withstand corrosive marine environment
- 3" Long x 1.5" Wide
- Drilled and countersunk for #10 fasteners
- Gem Hinges are the industry standard and your boat deserves the best
Reviews
5.0 / 5.0
2 Reviews
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Overbuilt, priced right and speedy delivery
I'm impressed with both this product and Boat Outfitters. I'll definitely be back !
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Questions / Answers
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions
Browse 3 questions
and 4 answers
What grade stainless steel are these?
BEST ANSWER: Hi Steve, these hinges are cast 316 stainless steel. Thank you!
- Reply
- Inaccurate
- Matt P Staff on Oct 14, 2019
Do these hinges open fully to 180 degrees or only 90?
BEST ANSWER: Hello Ron, those hinges offer a 180 degree range of motion.
- Reply
- Inaccurate
- Brian O Staff on May 14, 2018
can you tell me the measurement between the holes centers and are they consistent? item SKU 058-3749
BEST ANSWER: Great Question Richard,

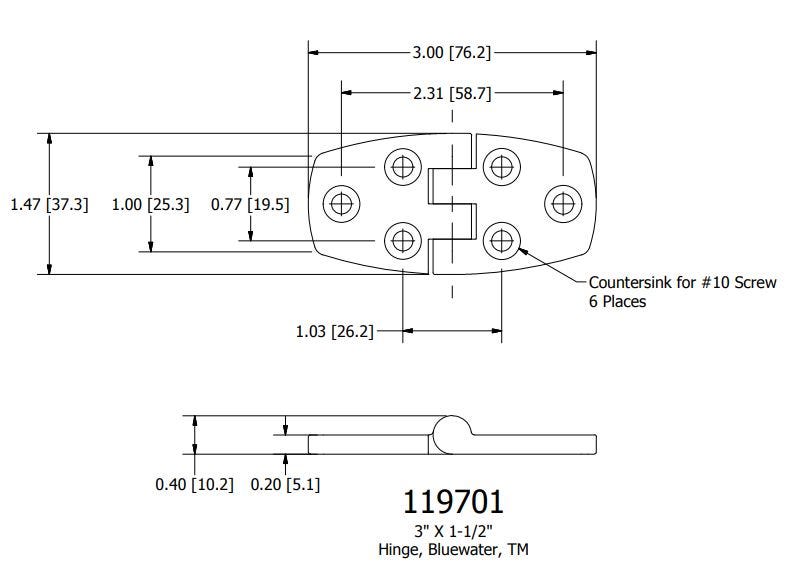

This product does have a consistent hole spacing on both sides of the pin assembly. The distance from top hole to top hole is 2.31". The spacing between the holes is 0.77 on one side. This is copied in the same way on the other side of the pin assembly.
Thanks Richard!
This product does have a consistent hole spacing on both sides of the pin assembly. The distance from top hole to top hole is 2.31". The spacing between the holes is 0.77 on one side. This is copied in the same way on the other side of the pin assembly.
Thanks Richard!
- Reply
- Inaccurate
- Stephen P Staff on Mar 5, 2018
