Built-In Friction:
Integrated friction helps hold compatible hatches, doors, lids, and panels at the desired opening angle.No Additional Supports Required:
Provides hold-open support without requiring separate gas shocks or hatch springs.316 Stainless Steel:
Constructed from 316-grade stainless steel for corrosion resistance in demanding marine environments.Flush-Mount Design:
Low-profile installation creates minimal protrusion above the surrounding panel.95-Degree Opening:
Hinge design allows compatible panels to open up to 95 degrees.Compact Dimensions:
Measures 1.5" long x 2.75" wide for space-conscious marine installations.Countersunk Mounting Holes:
Drilled and countersunk for six #8 fasteners, which are sold separately.
Stainless Steel Flush Mount Friction Hinge 1.5" x 2.75"
SKU
058-6039
$39.77
Regular Price
Ships FREE on orders over $150!
Helping Boaters
since 1979
since 1979
Honest Expert
Advice
Advice
100% Satisfaction
Guarantee
Guarantee
Product Details
Tech Specs
| Material | 316-grade stainless steel |
| Hinge Type | Friction hinge |
| Mounting Style | Flush mount |
| Overall Dimensions | 1.5" L x 2.75" W |
| Maximum Opening Angle | 95° |
| Hold-Open Function | Built-in friction; no gas shocks or hatch springs required |
| Mounting Holes | 6 drilled and countersunk holes |
| Fastener Size | #8 fasteners |
| Mounting Hardware | Sold separately |

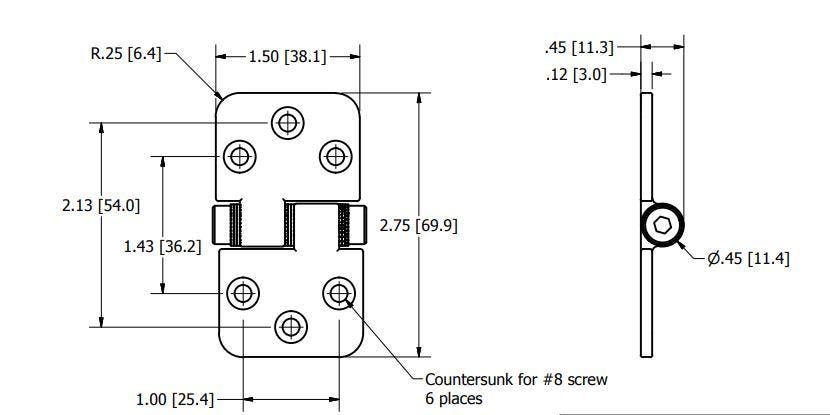

Drawings
