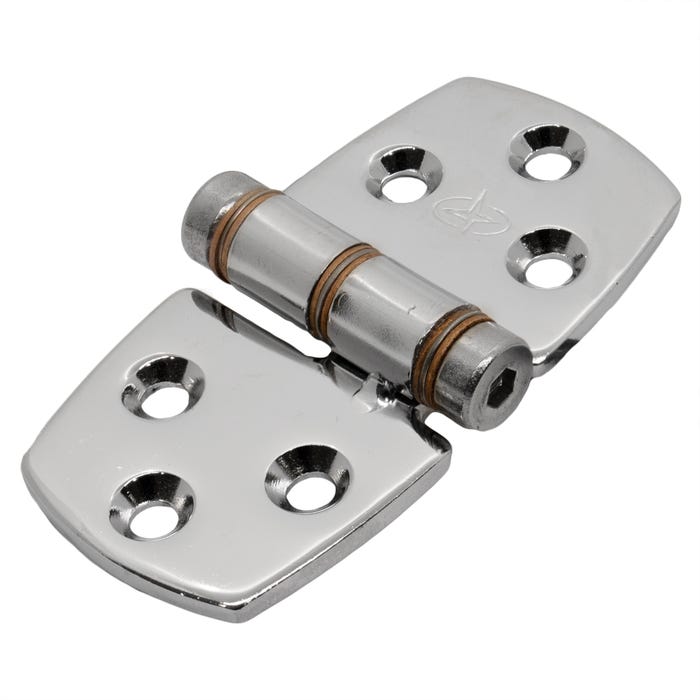

Stainless Steel Top Mount Friction Hinge 3" x 1.5"

SKU
058-6052
  $36.25
Ships FREE on orders over $150!

Product Details

  • Conveniently holds doors in open position without requiring gas shocks
  • 316 grade stainless steel friction hinge designed to withstand corrosive marine environment
  • Maximum opening angle: 180°
  • Torque Rating: 45 lbs
  • Measures 3" Long x 1.5" Wide
  • Drilled and countersunk for #8 fasteners
  • It’s recommended to through-bolt this hinge with backing support to ensure it can handle the constant load and pressure applied by the friction mechanism

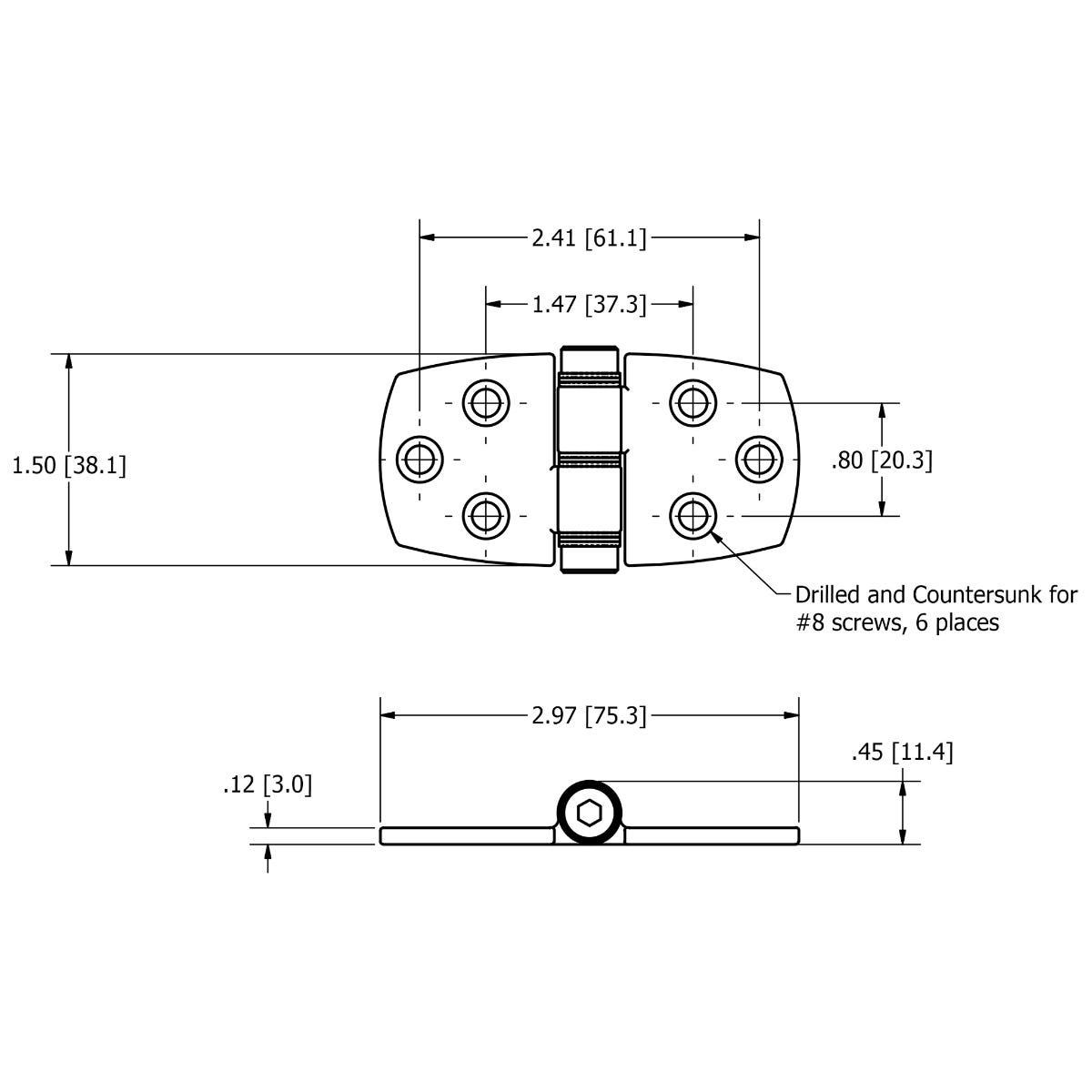

Drawing
