058-6033
Stainless Steel Top Mounting Friction Hinge 2.75" x 1.5"
SKU
058-6033
Special Price
$19.46
Regular Price
$24.32
In Stock
Orders before 2PM EST ship same day!
When will this arrive?
Key Features:
- Stainless steel friction hinge designed to withstand corrosive marine environment
- Conveniently holds doors in open position without requiring gas shocks

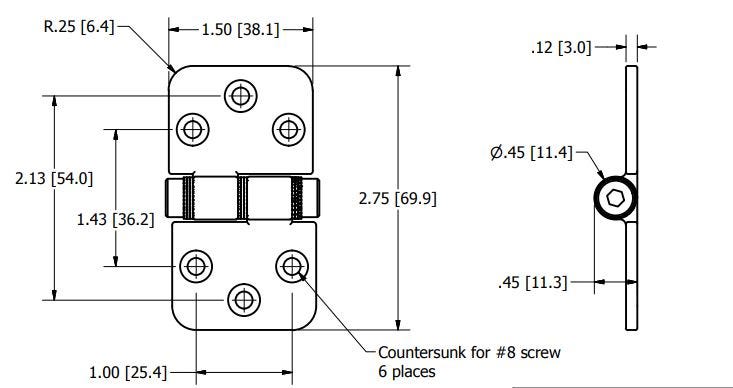

- Measures 2.75" Long x 1.5" Wide
- Drilled and countersunk for #8 fasteners
Reviews
4.0 / 5.0
2 Reviews
It worked, but I couldn't find the exact hinge I needed
I was able to make this work, but it isn't exactly what I needed which I can't seem to find. Essentially I needed this exact hinge, bur with the bump from the hing on the bottom. I was able to work by putting it on upside down, but would love to find the correct hinge.
- Was this review helpful? Yes (0) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (1)
- Flag as Inappropriate
Response from Boat Outfitters
Hi Jarrod, thank you for sending this in! The hinge you ordered is the Top Mount hinge, and it sounds like you need the Flush Mount hinge. The part number you need is 058-6039, and this can be found in this link: https://www.boatoutfitters.com/stainless-steel-flush-mount-friction-hinge-1-5-x-2-75 Please give us a call so that we can discuss getting the hinges you have back to us, and getting the hinges you need sent out. Thank you Jarrod!
March 12, 2019
Matt P
Friction Hinges
We at RCO Engineering build prototype...almost anything.
What we put these hinges on is a proprietary prototype mock up for the marine industry, so we cannot share photos or details.
We can say they worked perfectly for what we needed.
We will keep Boat Outfitters in mind going forward.
What we put these hinges on is a proprietary prototype mock up for the marine industry, so we cannot share photos or details.
We can say they worked perfectly for what we needed.
We will keep Boat Outfitters in mind going forward.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Questions / Answers
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions
Browse 4 questions
and 5 answers
Do these hinges come with stainless steel screws?
BEST ANSWER: Mine did not. The screw length required will vary between applications.
- Reply
- Inaccurate
- Sam M on Feb 13, 2019
- Purchased on Mar 12, 2017
Is the tension on the hinge adjustable?
BEST ANSWER: Great Question Andrew,
Unfortunately, This product does not allow for the tensions to be adjustable.
Thanks Andrew!
Unfortunately, This product does not allow for the tensions to be adjustable.
Thanks Andrew!
- Reply
- Inaccurate
- Stephen P Staff on Jul 5, 2018
what is thickness? 316 ss? stamped or cast? Thanks!
BEST ANSWER: These are 304 stainless and are .12" thick on each leaf.
- Reply
- Inaccurate
- Brian O Staff on May 15, 2018
Will they also help hold doors shut?
