4 Position Mini Selector Battery Switch

SKU
260-2211
  $33.32
Ships FREE on orders over $150!

Product Details

  • (4) switch positions
  • Ability to switch isolated battery banks to all loads or combine battery banks to all loads
  • Tin-plated copper studs for increased conductivity and corrosion resistance
  • Compatible with 0.375”-16 ring terminals
  • Cover with (3) snap-off sides protects rear contacts and allows for wire access in any direction
  • 300A continuous duty
  • 500A intermittent duty
  • Max Volts: 32V DC
  • Amp Draw: 175A
  • Max Amp Draw: 300 A

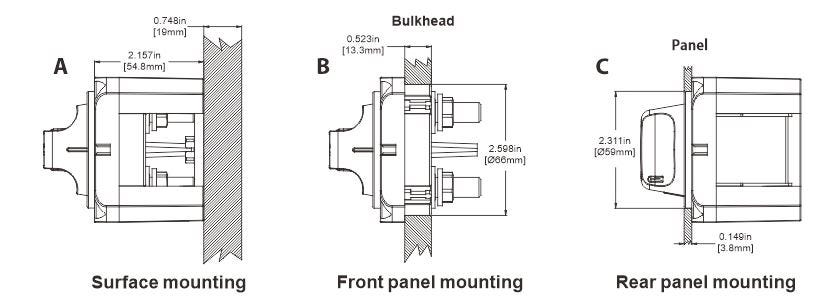

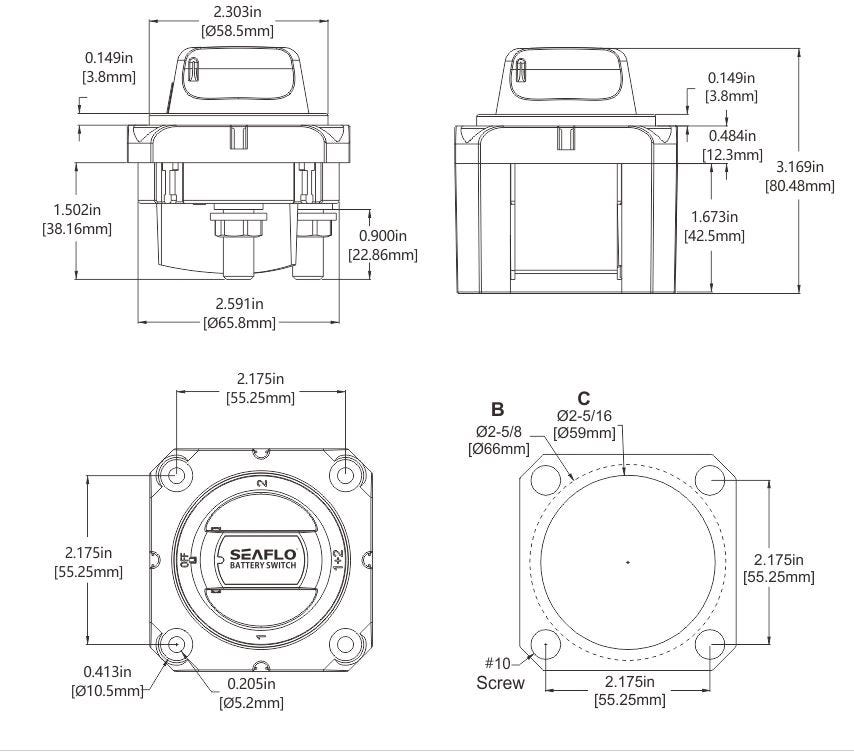

    Drawings
