Yellowfin Gunnel Tilt Out Storage Unit
SKU
13770-80362
$787.75
Built To Order
Usually ships in 3-5 Business Days
When will this arrive?

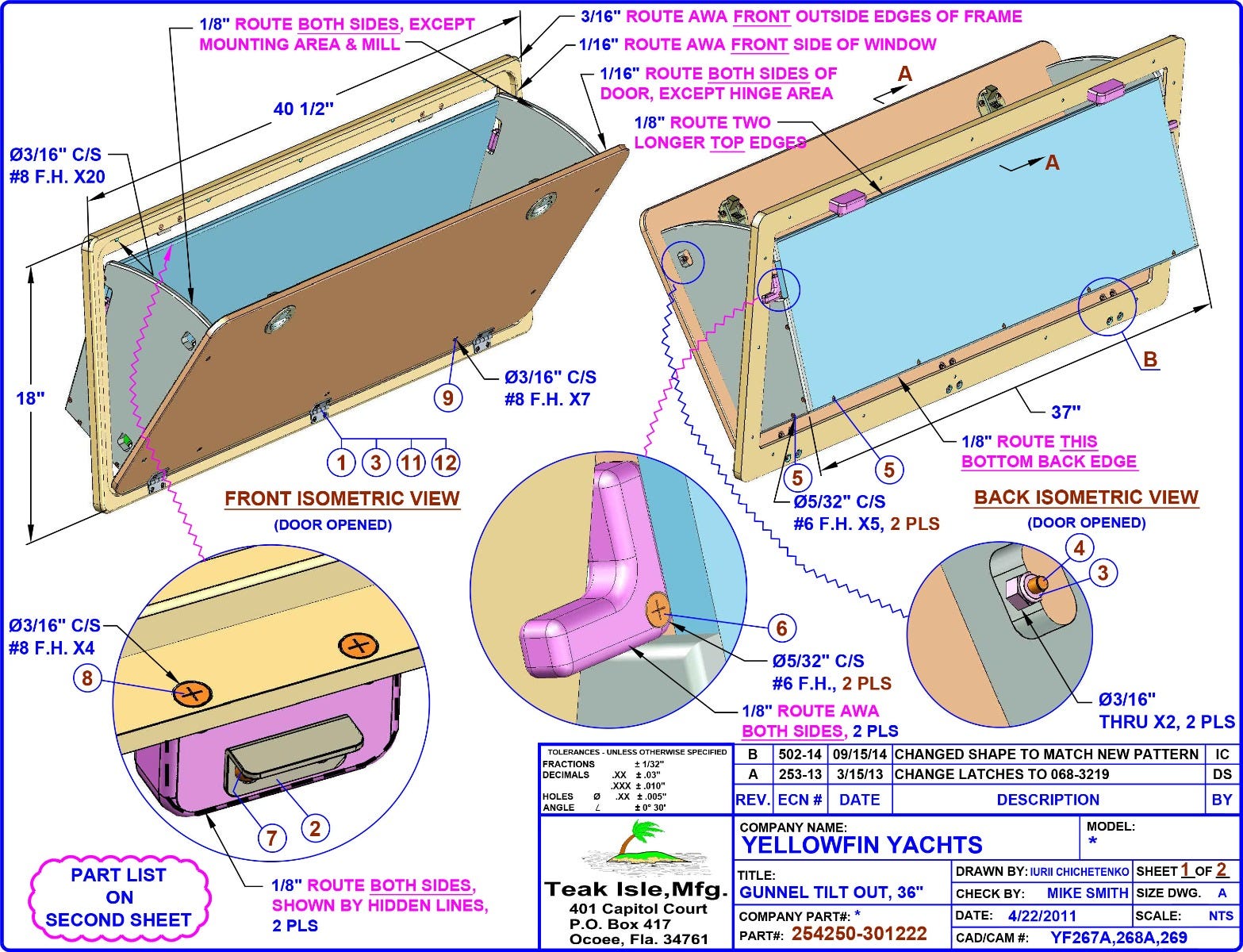

Critical Dimensions
| Measures | 18" tall x 40.5" wide |
| Fits Hole Cutout | 16.8" tall x 39" wide |
| Required Depth | 5.875" |
Need a Custom Size?
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Features
- Measures 18” tall x 40.5” wide x 5.875 deep
- Exact OEM replacement for Yellowfin 36’
- Manufactured from White/White King Starboard made to withstand the harsh marine elements
- Fasteners sold separately
This part is supplied predrilled with face mounting holes.
The simplest and easiest mounting option is to mount your components through the front face of the framework using stainless steel screws or bolts. This frame is sold pre-drilled and countersunk for #8 stainless marine fasteners.
Face Mounting with Screws (Basic Steps)
- Carefully measure and cut your hole cutout.
- Place your box into your cutout.
- Drill pilot holes through the pre-drilled holes in your frame.
- Fasten #8 stainless screws into you pilot holes until box is secure.
Face Mounting with Bolts (Basic Steps)
- Carefully measure and cut your hole cutout.
- Place the box in to your cutout.
- Drill pilot holes through the pre-drilled holes in your frame.
- Slide stainless steel 8-32 bolts through frame & pilot holes.
- Tighten lock nut on bolts from rear until boat storage box is secure.
Color accuracy can vary considerably on computer monitors and printers. Use the above images as a general guide of relative color differences. When color match is critical, please consider purchasing a sample chain.
Below is our "best guess" color match by boat brand:
Starboard Sample ChainBecause parts are built to order, we cannot accept any returns on account of color discrepancy. We offer sample chains at cost for all customers. If you are unsure which color best matches your boat, we highly recommend purchasing a set! Add To Cart
