Godfrey Lounge Backrest Tackle Storage Box - SWX, SWX-LUX, & FD 1960-2260 Models

Name: Godfrey Lounge Backrest Tackle Storage Box - SWX, SWX-LUX, & FD 1960-2260 Models
SKU: 13770-54980-CP
Price: 999.95 USD
Availability: InStock

SKU

13770-54980-CP

$999.95

Please Select

Select your product options to view availability.

Qty

Trusted Industry
Leader

Helping Boaters
since 1979

Honest Expert
Advice

100% Satisfaction
Guarantee

Industry
Leader

Helping Boaters Since 1979

Honest, Expert Advice

Satisfaction Guarantee

Storage Unit Details

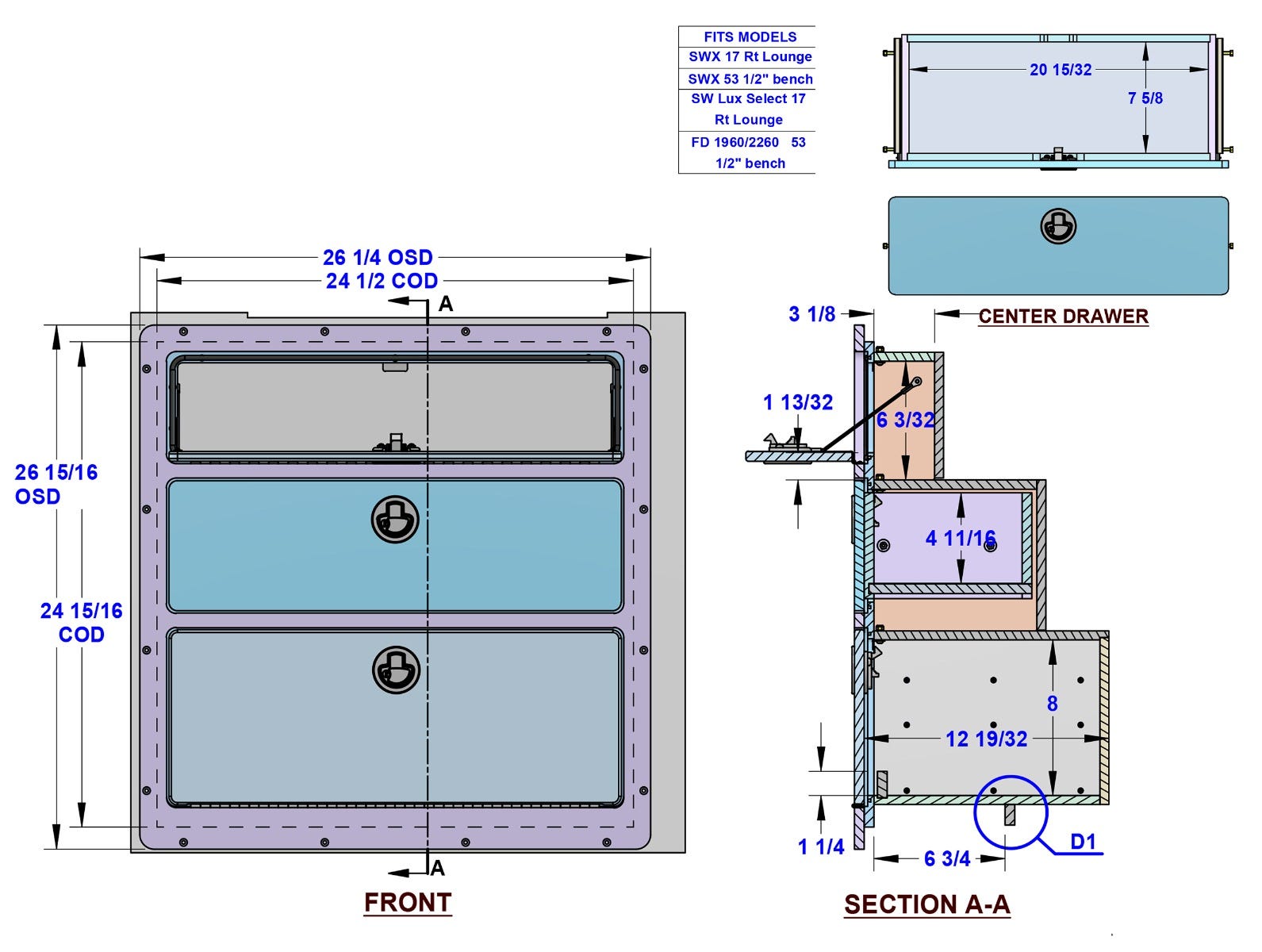

Critical Dimensions

Measures	26.94" tall x 26.25" wide
Fits Hole Cutout	24.94" tall x 24.5" wide
Required Depth	12.6"

Need a Custom Size?
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote

Features

Constantly caught with your gear strewn all over the boat when you are on the water? Tired of worrying those left-out hooks will puncture your perfect vinyl on your furniture? Our pontoon lounge backrest tackle unit is the solution to all of your problems. Featuring a variety of Plano tackle trays as well as a drawer for storing larger items. As an added bonus, the upper compartment is a locking glovebox that is perfect for storing your wallet, keys, or cell phones.

(1) Top Locking Glovebox Storage
(1) Middle Drawer
(1) Bottom Storage Area with:

(2) Plano 3630 Tray Tackle Boxes
(4) Plano 3650 Tray Tackle Boxes

Installation Instructions

This part is supplied predrilled with face mounting holes.

The simplest and easiest mounting option is to mount your components through the front face of the framework using stainless steel screws or bolts. This frame is sold pre-drilled and countersunk for #8 stainless marine fasteners.

Face Mounting with Screws (Basic Steps)

Carefully measure and cut your hole cutout.
Place your box into your cutout.
Drill pilot holes through the pre-drilled holes in your frame.
Fasten #8 stainless screws into you pilot holes until box is secure.

Full Installation Instructions

Face Mounting with Bolts (Basic Steps)

Carefully measure and cut your hole cutout.
Place the box in to your cutout.
Drill pilot holes through the pre-drilled holes in your frame.
Slide stainless steel 8-32 bolts through frame & pilot holes.
Tighten lock nut on bolts from rear until boat storage box is secure.

Full Installation Instructions

Color Options

Color accuracy can vary considerably on computer monitors and printers. Use the above images as a general guide of relative color differences. When color match is critical, please consider purchasing a sample chain.

Below is our "best guess" color match by boat brand:

Starboard Sample Chain
Because parts are built to order, we cannot accept any returns on account of color discrepancy. We offer sample chains at cost for all customers. If you are unsure which color best matches your boat, we highly recommend purchasing a set! Add To Cart
