Regulator Leaning Post Tackle Unit

SKU
13770-80428
$954.83
Built To Order
Usually ships in 3-5 Business Days
When will this arrive?
You get FREE shipping on this product!

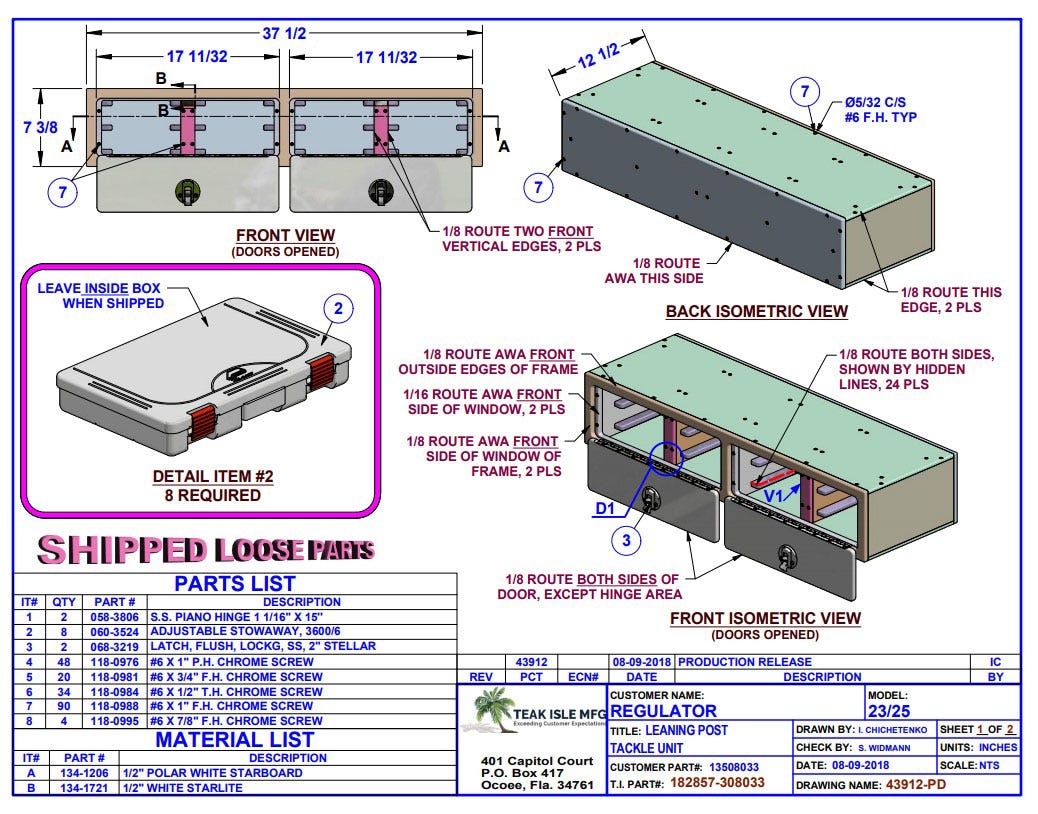

Critical Dimensions
Measures 7.375" tall x 37.5" wide
Fits Hole Cutout 7.375" tall x 37.5" wide
Required Depth 12.5"
Need a Custom Size?
Most units can be customized to fit your specs. Call (866)-633-7961 to discuss!
» Request Quote
Features
  • Measures 7.375” tall x 37.5” wide x 12.5” deep
  • Includes (8) 3650 Plano Trays 10.875" wide x 7.375" deep x 1.75" tall
  • Exact OEM replacement part
  • Fits Regulator models 23 and 25
  • Fasteners sold separately

This part is supplied predrilled with inside mounting holes

Inside mounting allows you to mount your box without any visible fastenersThis mounting style requires at least 3/4" of panel thickness. If you do not have this wall thickness available, you must add build up strips around the inside of your cutout.

Download Full Installation Instructions

Inside Mounting (with 3/4" of Fiberglass)
  1. Carefully measure and cut your hole cutout.
  2. Evaluate wall thickness to confirm 3/4" of material to screw in to.
  3. Place your box into your cutout.
  4. Drill pilot holes through the pre-drilled holes on the inside flange of your tackle box.
  5. Fasten #8 1 1/4" screws in to your pilot holes until box is secure.

Inside Mounting (without 3/4" of Fiberglass)
  1. Carefully measure and cut your hole cutout.
  2. Screw mounting strips around the inside opening to build up your available wall thickness.
  3. Place the box in to your cut out.
  4. Drill pilot holes through the pre-drilled holes on the inside flange of your tackle box .
  5. Fasten #8 1 1/4" screws in to your pilot holes until boat storage box is secure.
