This part is supplied predrilled with face mounting holes.
The simplest and easiest mounting option is to mount your components through the front face of the framework using stainless steel screws or bolts. This frame is sold pre-drilled and countersunk for #8 stainless marine fasteners.
Face Mounting with Screws (Basic Steps)
Carefully measure and cut your hole cutout.
Place your box into your cutout.
Drill pilot holes through the pre-drilled holes in your frame.
Fasten #8 stainless screws into you pilot holes until box is secure.
Color accuracy can vary considerably on computer monitors and printers. Use the above images as a general guide of relative color differences. When color match is critical, please consider purchasing a sample chain.
Below is our "best guess" color match by boat brand:
Important Note
Many builders have gone through color changes and utilize different color schemes on different boats. The above list should not be considered a definitive resource. Use these suggestions at your own risk and please consider purchasing a sample chain if color match is critical.
Starboard Sample Chain Because parts are built to order, we cannot accept any returns on account of color discrepancy. We offer sample chains at cost for all customers. If you are unsure which color best matches your boat, we highly recommend purchasing a set!
Add To Cart
Additional Size Options
Like this layout, but need a slightly different size? Here are some variations we've done for this unit that may fit your exact dimensions!
Give us a call at (866) 633-7961 and let one of our project managers know the ID number to get a quote for pricing on the box that works best for you!
ID
Dims
Drawing

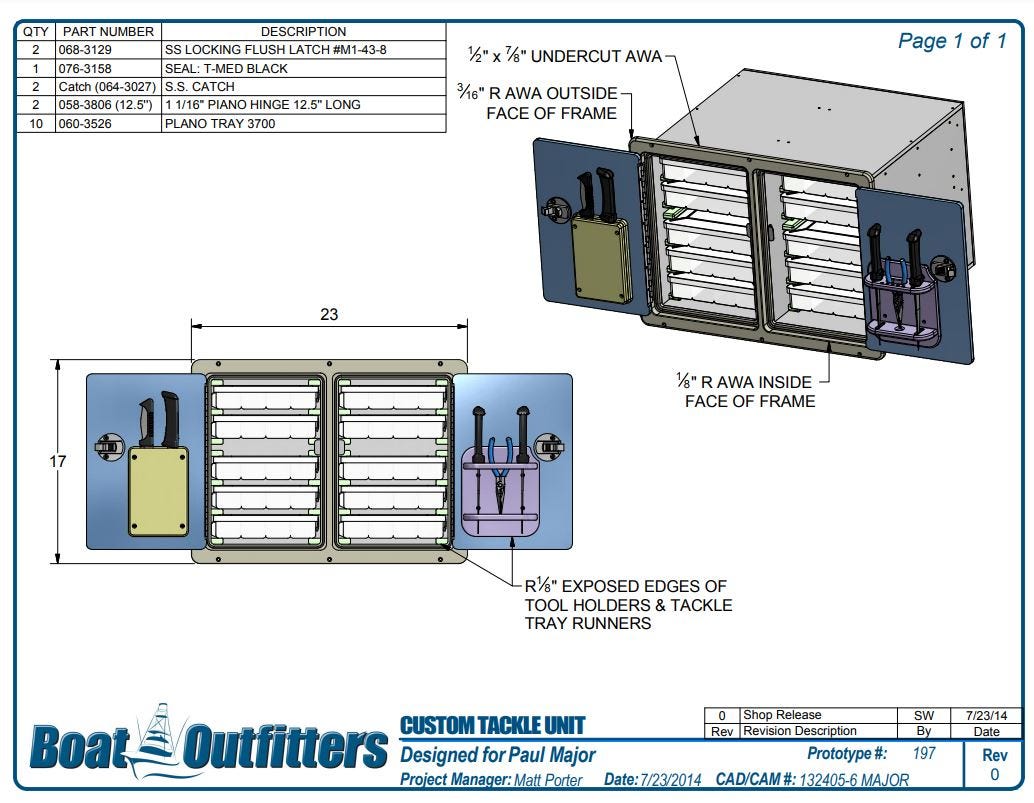

197
Outside Dims: 17" tall x 23" wide x 18" deep
Fits Hole Cutout: 15.25" tall x 21.25" wide
Changes: Dim Change, (2) Doors, Tray Orientation, Added Tool Holders

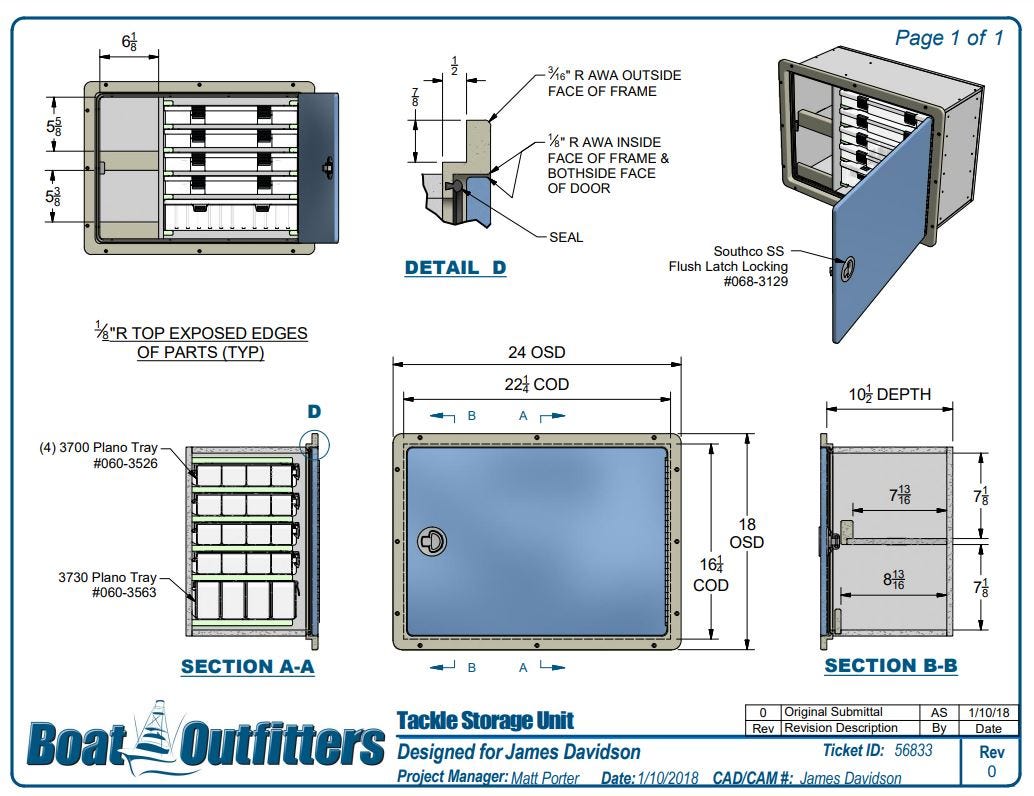

56833
Outside Dims: 18" tall x 24" wide x 10.5" deep
Fits Hole Cutout: 16.25" tall x 22.25" wide
Changes: Dim Change, Door Hinges on Right, Added (1) 3730 Plano Tray

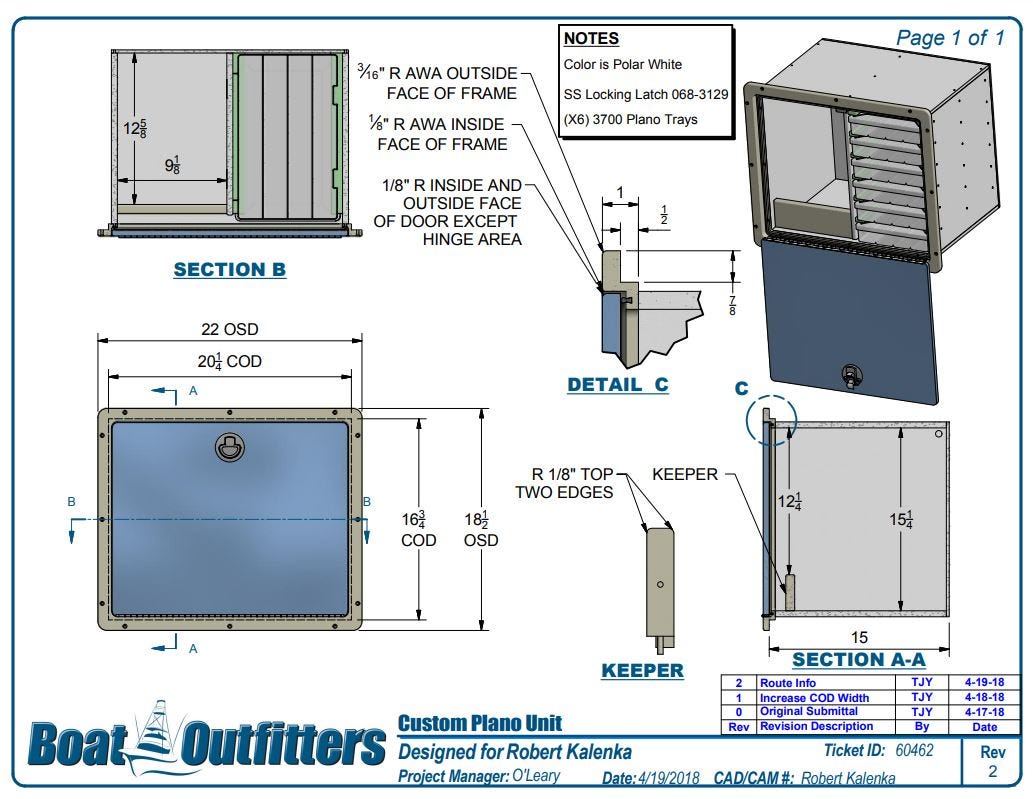

60462
Outside Dims: 18.5" tall x 22" wide x 15" deep
Fits Hole Cutout: 16.75" tall x 20.25" wide
Changes: Dim Change, Tray Orientation

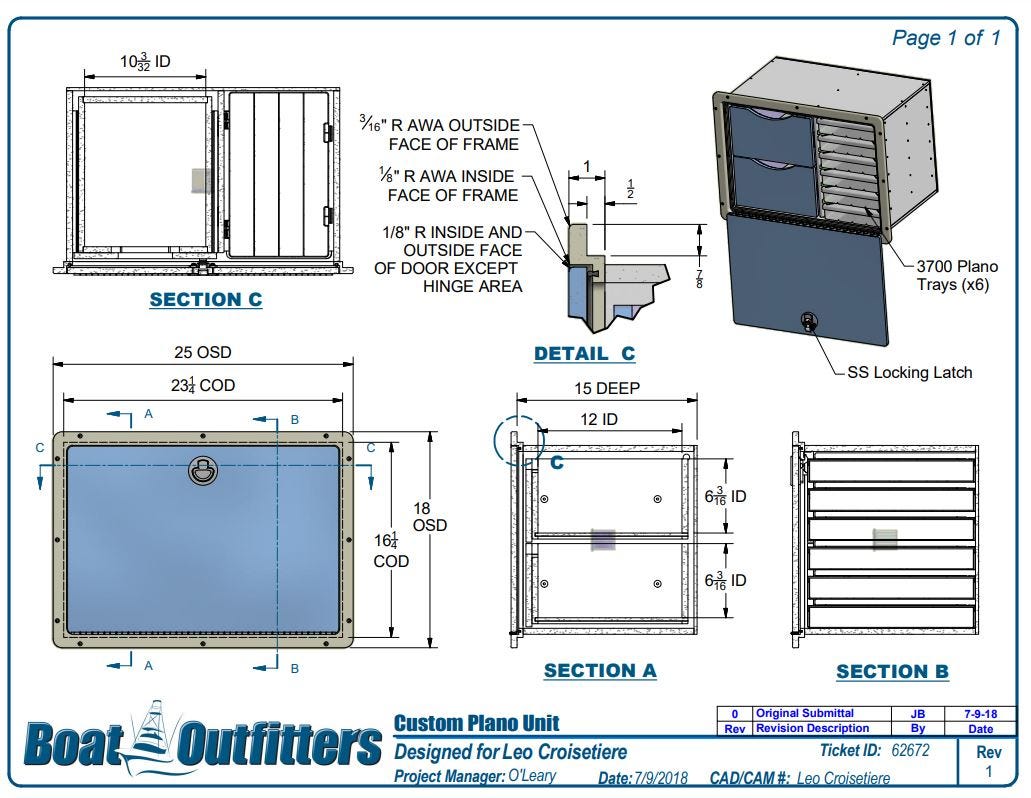

62672
Outside Dims: 18" tall x 25" wide x 15" deep
Fits Hole Cutout: 16.25" tall x 23.25" wide
Changes: Dim Change, Tray Orientation, Added (2) Drawers on Left Side

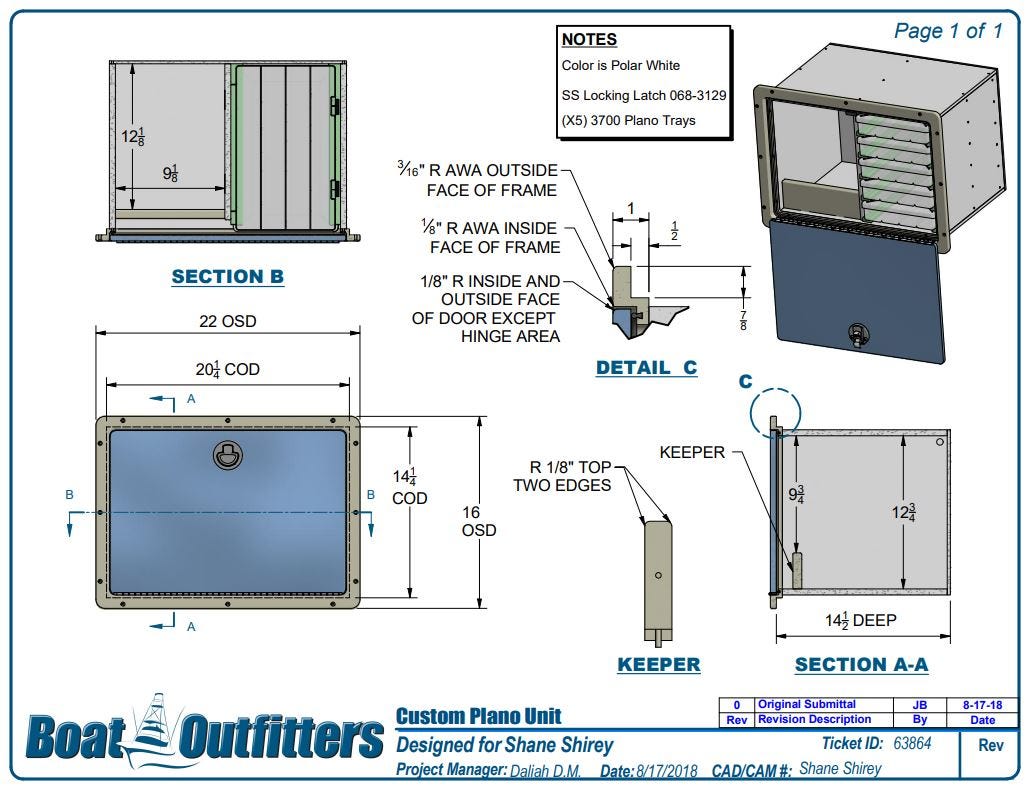

63864
Outside Dims: 16" tall x 22" wide x 14.5" deep
Fits Hole Cutout: 14.25" tall x 20.25" wide
Changes: Dim Change

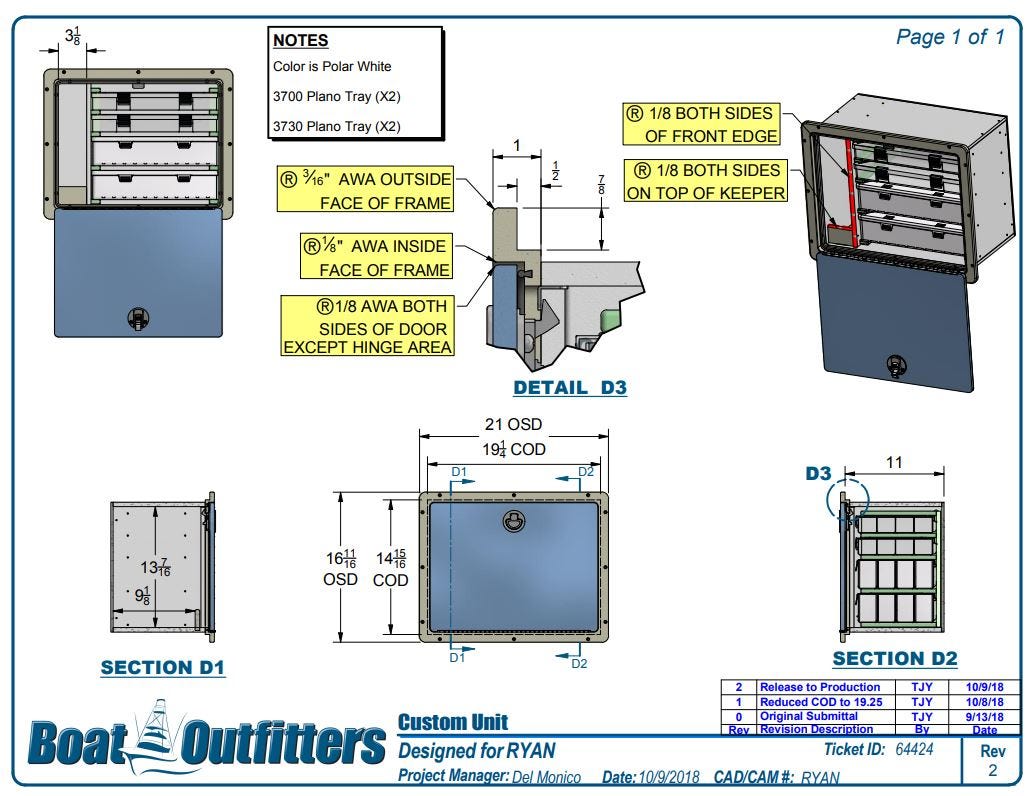

64424
Outside Dims: 16.6875" tall x 21" wide x 11" deep
Fits Hole Cutout: 14.9375" tall x 19.25" wide
Changes: Dim Change, Switched (2) Plano Trays to 3730s

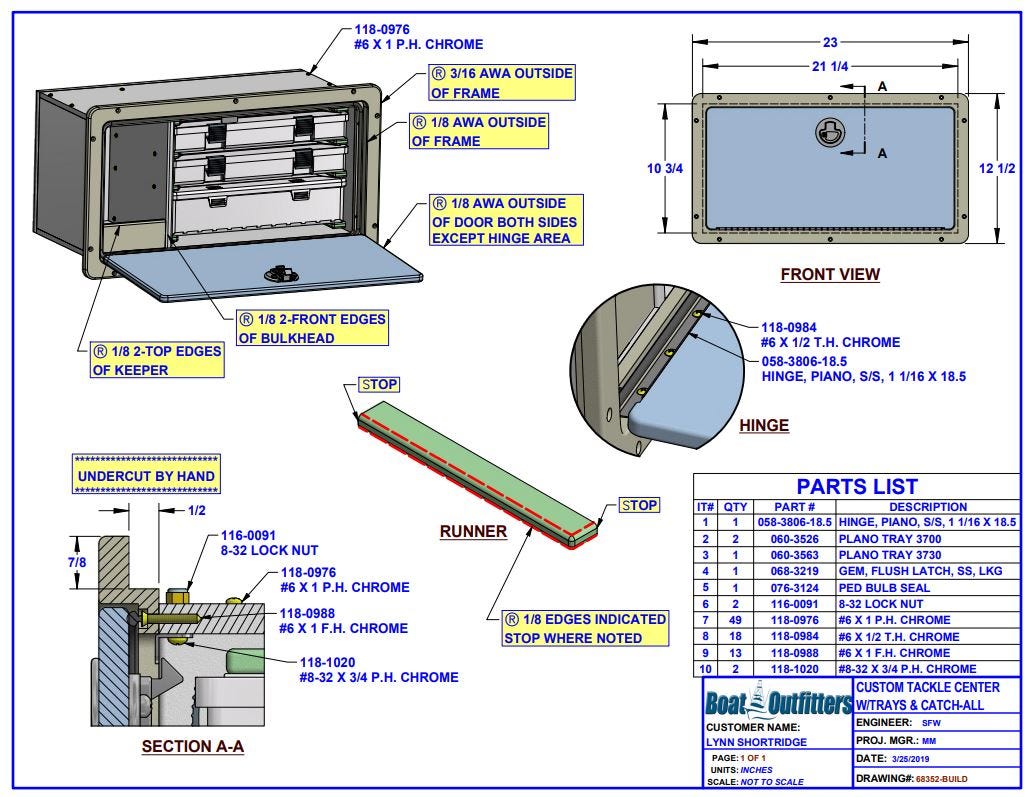

68352
Outside Dims: 12.5" tall x 23" wide x 10.5" deep
Fits Hole Cutout: 10.75" tall x 21.25" wide
Changes: Dim Change

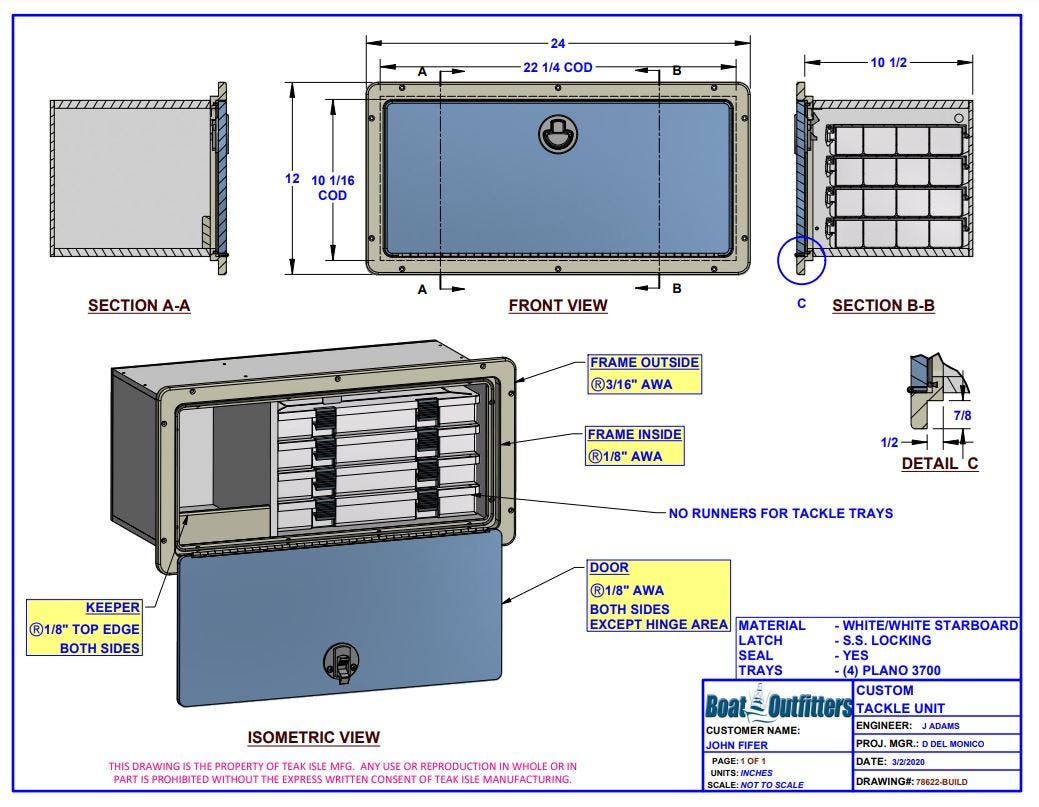

78622
Outside Dims: 12" tall x 24" wide x 10.5" deep
Fits Hole Cutout: 10.0625" tall x 22.25" wide
Changes: Dim Change, Removed Runners

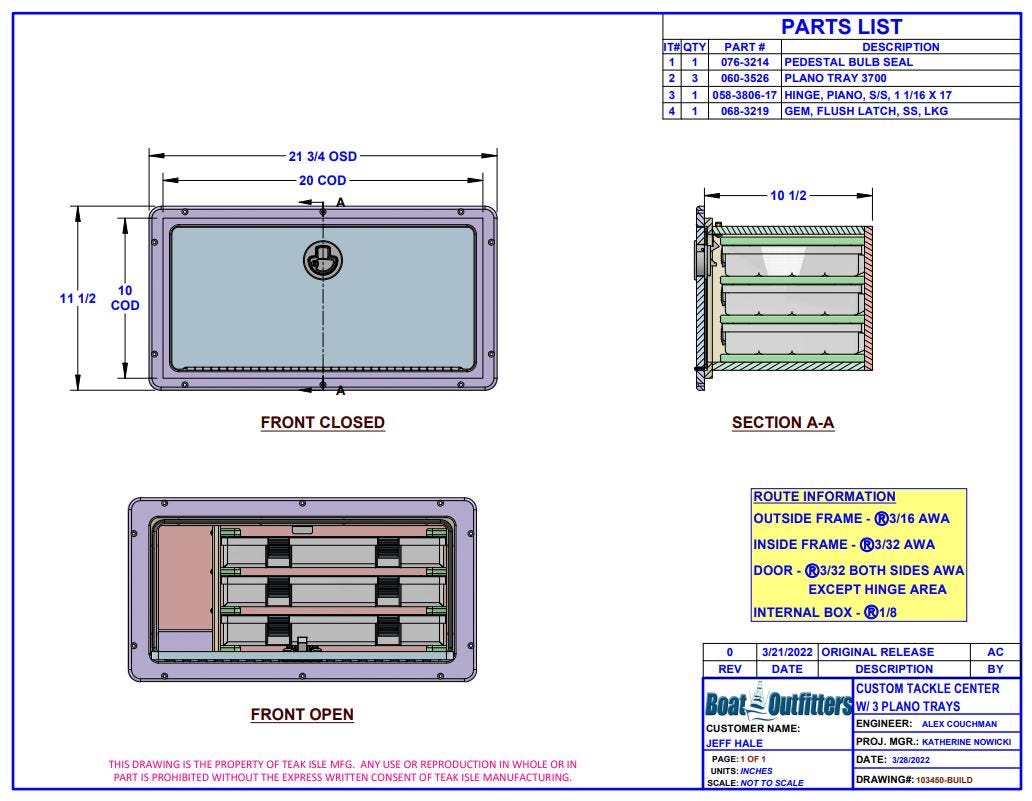

103450
Outside Dims: 11.5" tall x 21.75" wide x 10.5" deep
Fits Hole Cutout: 10" tall x 20" wide
Changes: Dim Change, (3) 3700 Plano Trays
34455
Outside Dims: 16.375" tall x 24.875" wide x 11" deep
Fits Hole Cutout: 14.75" tall x 23.25" wide
Changes: Dim Change

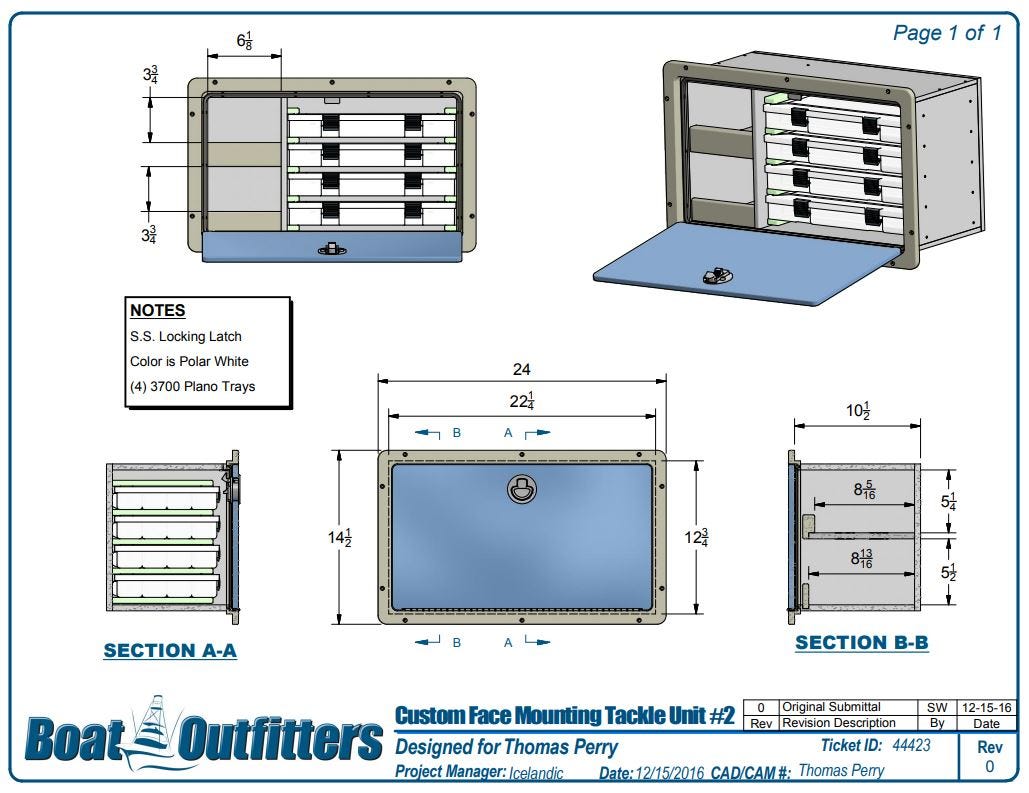

44423
Outside Dims: 14.5" tall x 24" wide x 10.5" deep
Fits Hole Cutout: 12.75" tall x 22.25" wide
Changes: Dim Change, Add Middle Shelf and Keeper on Left

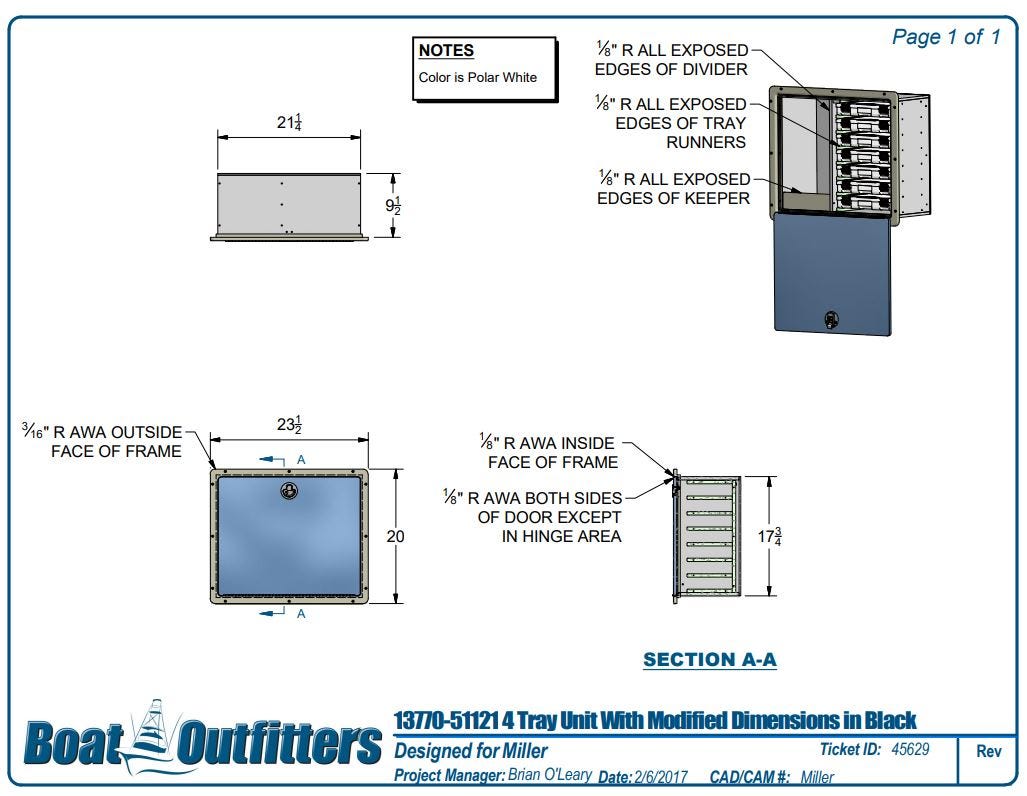

45629
Outside Dims: 20" tall x 24" wide x 9.5" deep
Fits Hole Cutout: 17.75" tall x 21.25" wide
Changes: Dim Change, Black Color, Locking Latch

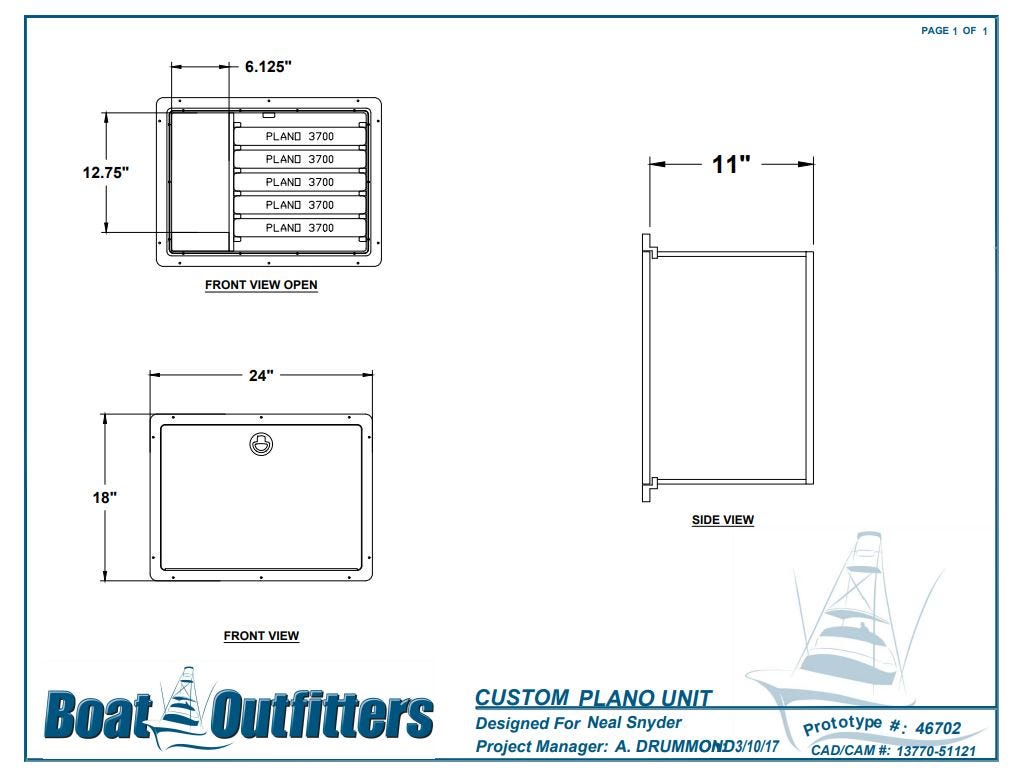

46702
Outside Dims: 18" tall x 24" wide x 11" deep
Fits Hole Cutout: 16.25" tall x 22.25" wide
Changes: Dim Change, Add an Extra 3700 Plano Tray, Locking Latch
