This part is supplied predrilled with face mounting holes.
The simplest and easiest mounting option is to mount your components through the front face of the framework using stainless steel screws or bolts. This frame is sold pre-drilled and countersunk for #8 stainless marine fasteners.
Face Mounting with Screws (Basic Steps)
Carefully measure and cut your hole cutout.
Place your box into your cutout.
Drill pilot holes through the pre-drilled holes in your frame.
Fasten #8 stainless screws into you pilot holes until box is secure.
Below is our "best guess" color match by boat brand:
Important Note
Many builders have gone through color changes and utilize different color schemes on different boats. The above list should not be considered a definitive resource. Use these suggestions at your own risk and please consider purchasing a sample chain if color match is critical.
Starboard Sample Chain Made-to-order parts are non-returnable for color issues. To ensure accuracy, we recommend purchasing a Starboard sample chain.Add To Cart
*Special Order Colors: These "special order" colors require a surcharge. Call for availability. Color accuracy may vary by monitor/printer. Use swatches as a guide. For exact matching, consider a sample chain.
Additional Size Options
Like this layout, but need a slightly different size? Here are some variations we've done for this unit that may fit your exact dimensions!
Give us a call at (866) 633-7961 and let one of our project managers know the ID number to get a quote for pricing on the box that works best for you!
ID
Dims
Drawing

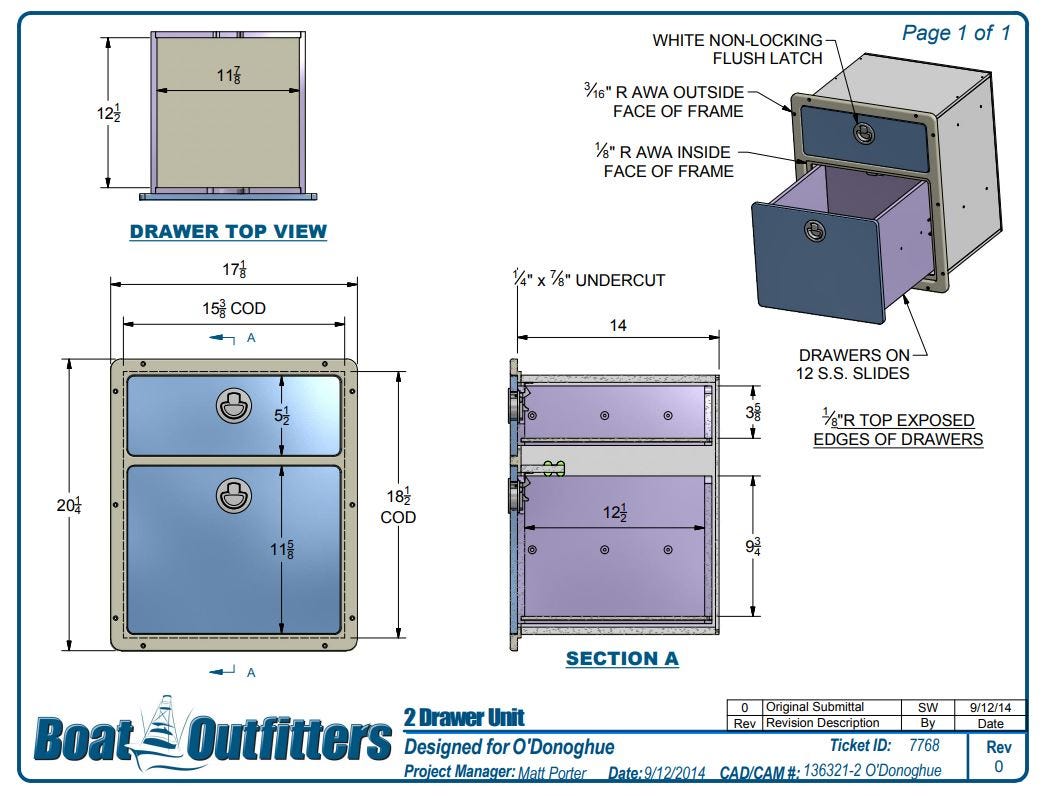

7768
Outside Dims: 20.25" tall x 17.125" wide x 14" deep
Fits Hole Cutout: 18.5" tall x 15.375" wide
Changes: One Large Bottom Drawer, SS Drawer Slides

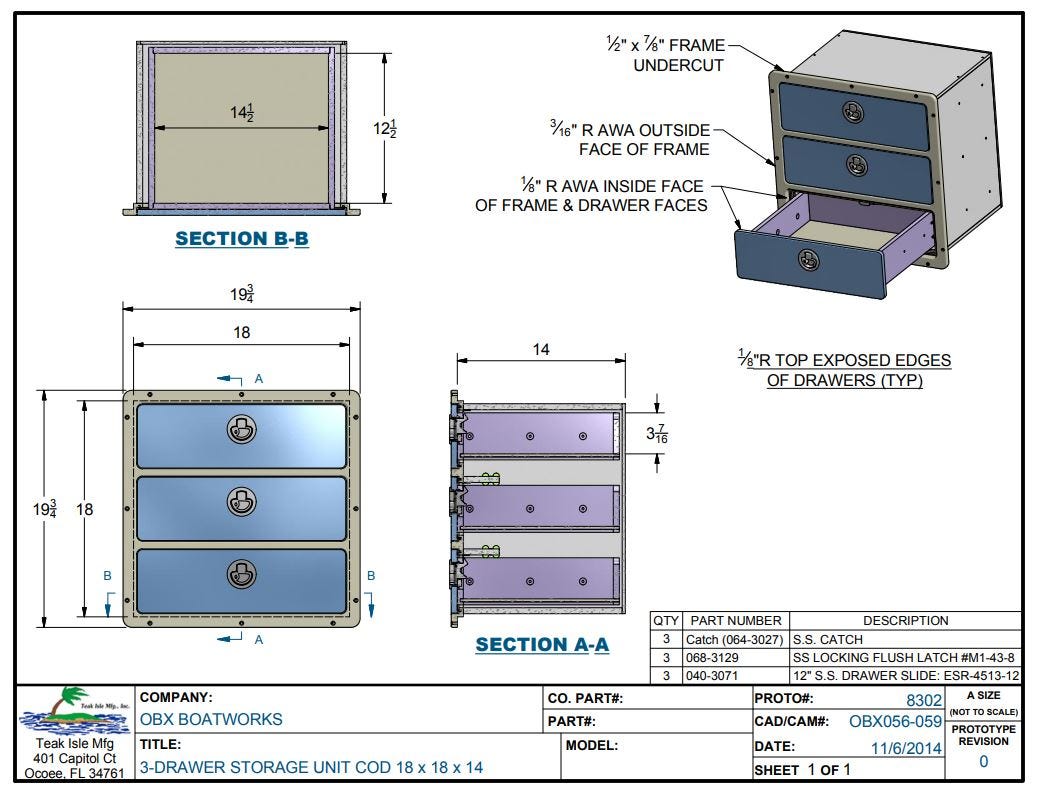

8302
Outside Dims: 19.75" tall x 19.75" wide x 14" deep
Fits Hole Cutout: 18" tall x 18" wide
Changes: Dim Change

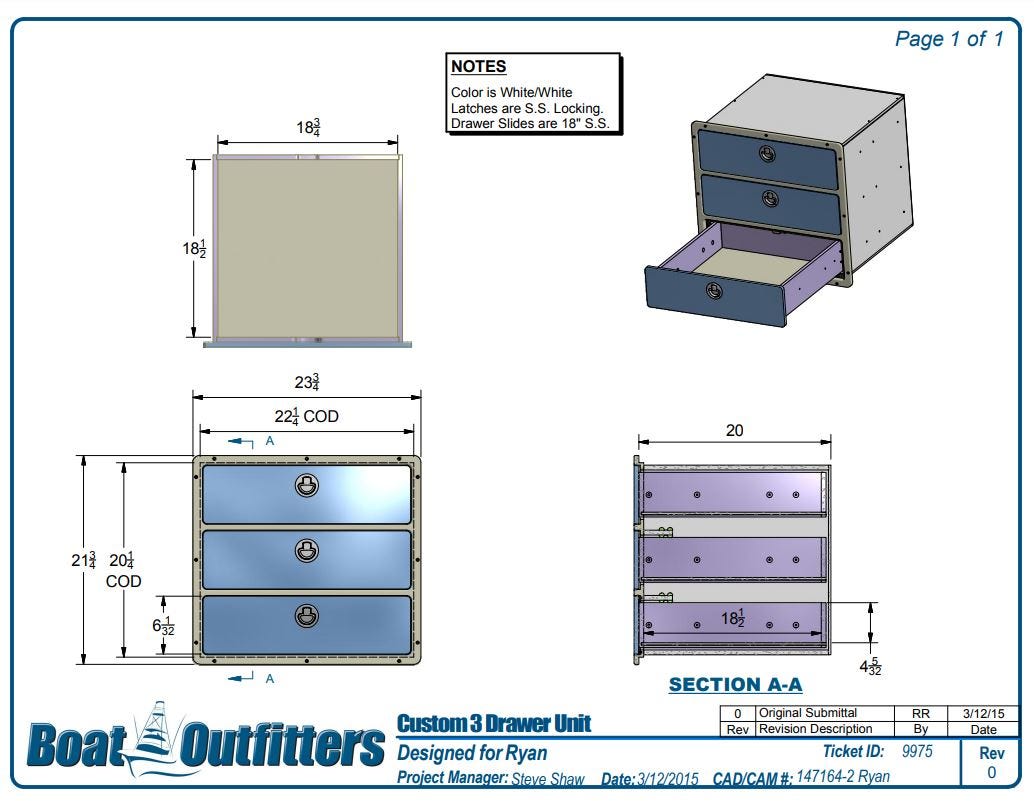

9975
Outside Dims: 21.75" tall x 23.75" wide x 20" deep
Fits Hole Cutout: 20.25" tall x 22.25" wide
Changes: Dim Change, SS Drawer Slides

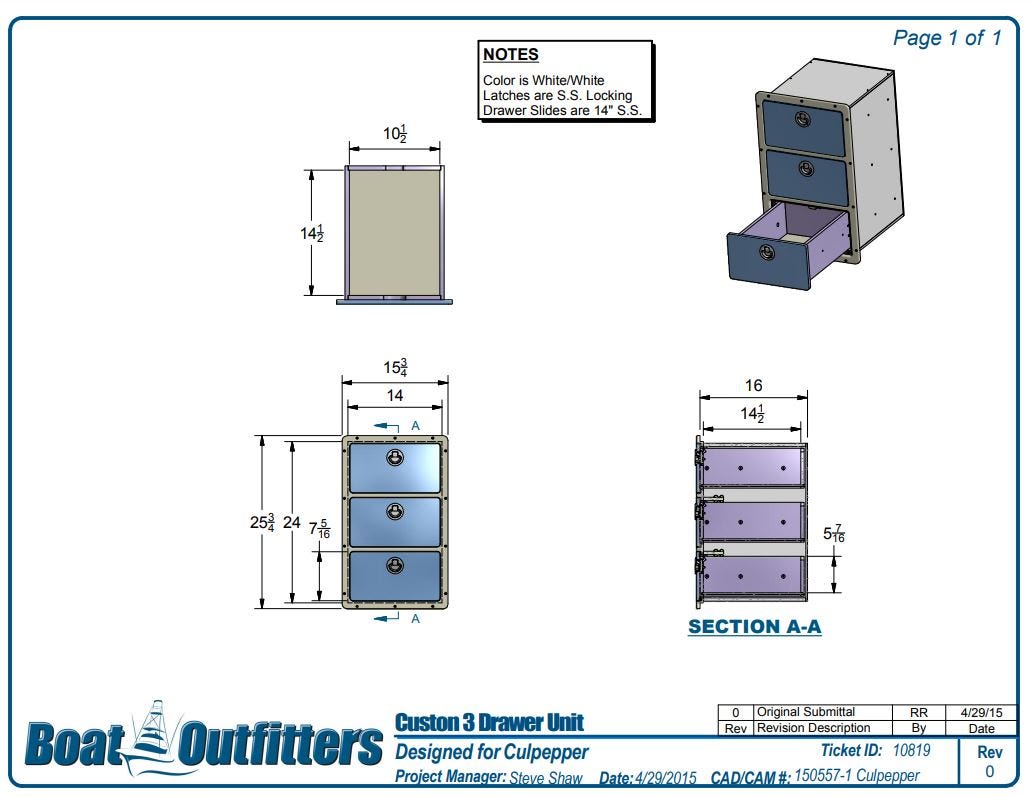

10819
Outside Dims: 25.75" tall x 15.75" wide x 16" deep
Fits Hole Cutout: 24" tall x 14" wide
Changes: Dim Change, SS Drawer Slides and Locking Latches

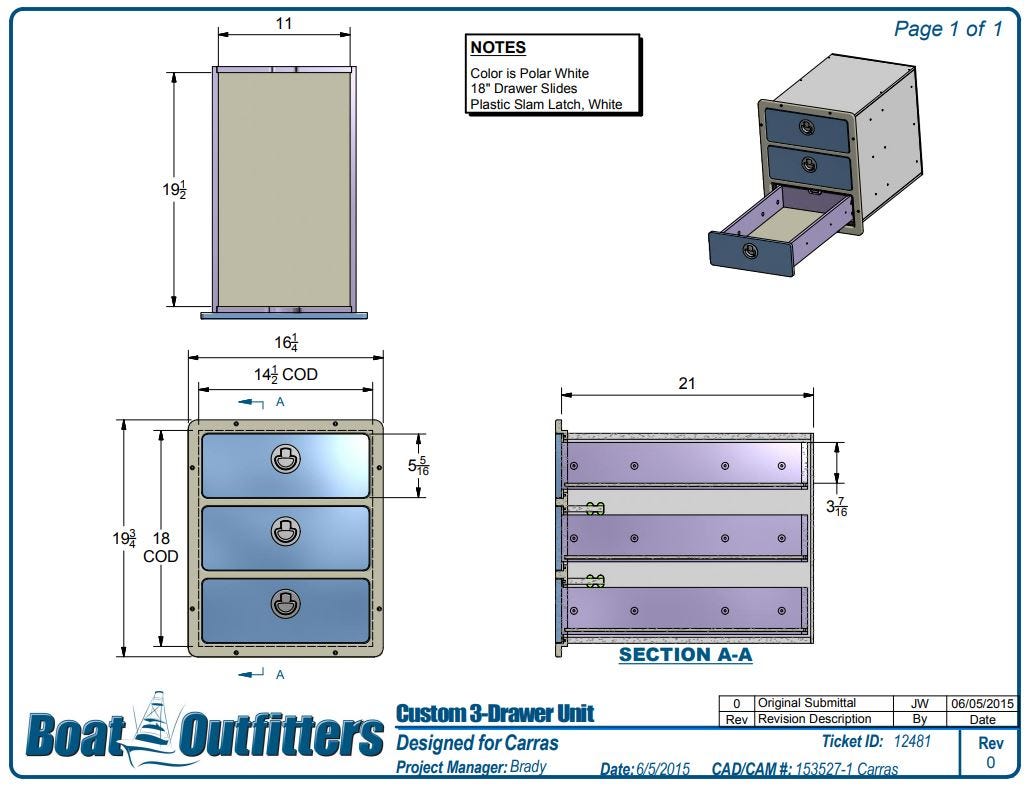

12481
Outside Dims: 19.75" tall x 16.25" wide x 21" deep
Fits Hole Cutout: 18" tall x 14.5" wide
Changes: Dim Change, SS Drawer Slides

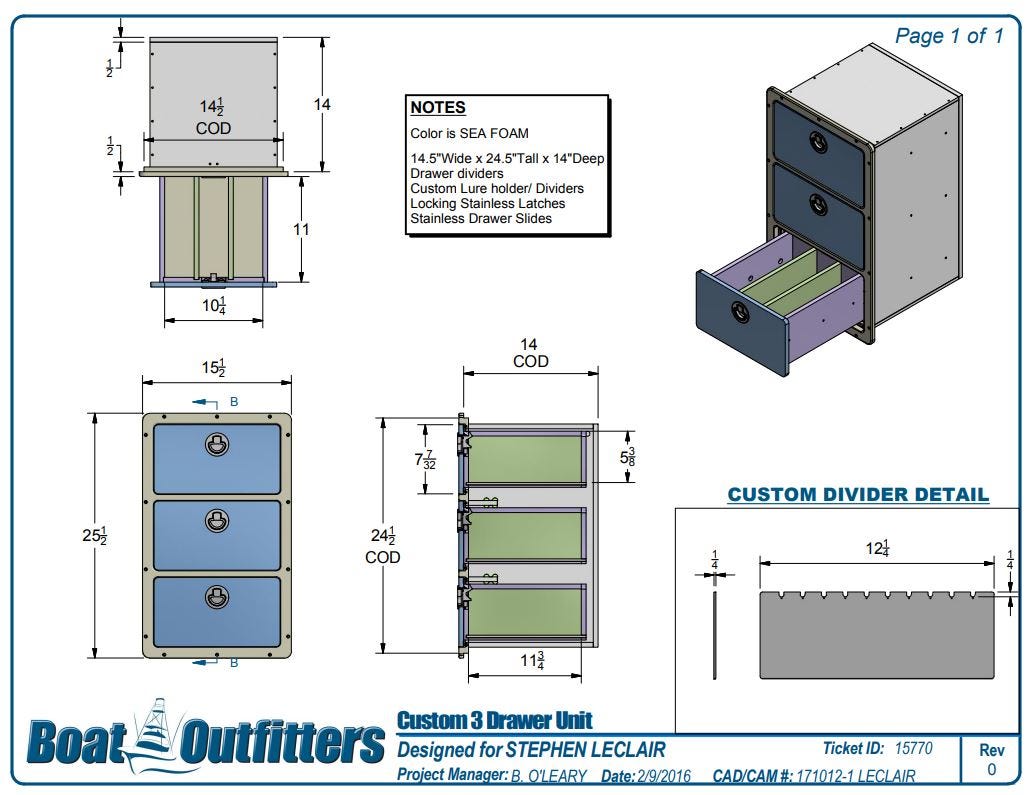

15770
Outside Dims: 25.5" tall x 15.5" wide x 14" deep
Fits Hole Cutout: 24.5" tall x 14.5" wide
Changes: Dim Change, Added Drawer Dividers, Lure Notches, SS Drawer Slide and Locking Latches

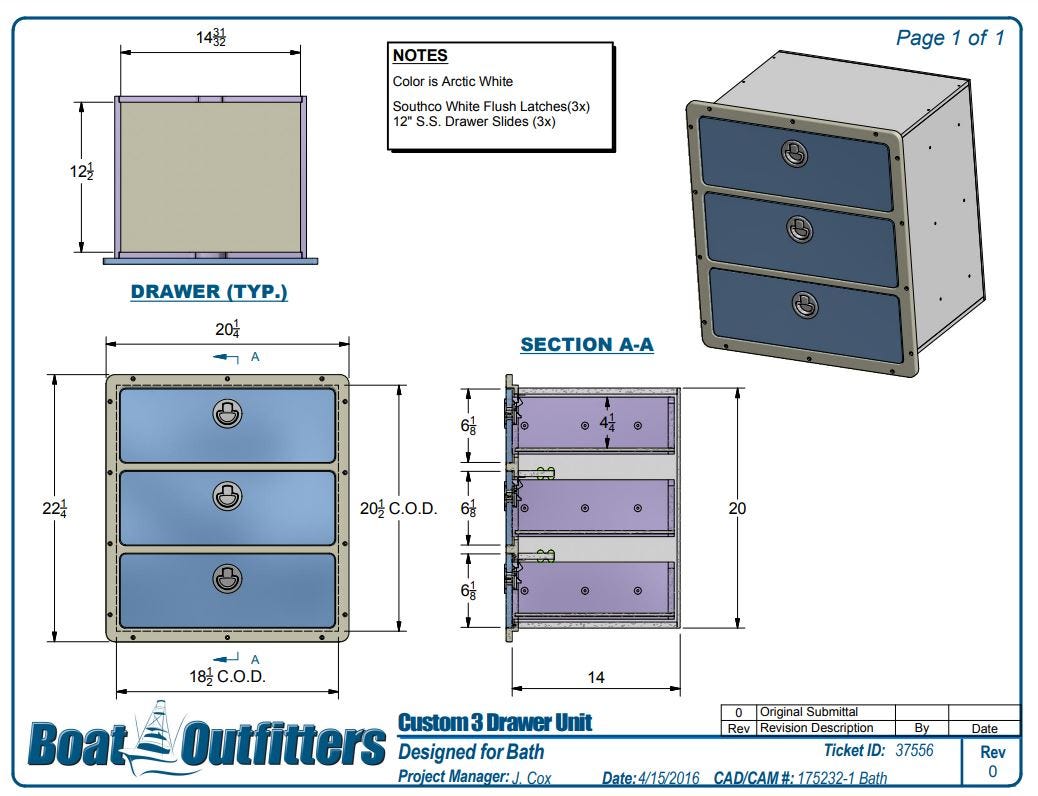

37556
Outside Dims: 22.25" tall x 20.25" wide x 14" deep
Fits Hole Cutout: 20.5" tall x 18.5" wide
Changes: Dim Change
43991
Outside Dims: 16" tall x 41.25" wide x 5.25" deep
Fits Hole Cutout: 14.25" tall x 39.5" wide
Changes: Dim Change, SS Drawer Slides and Locking Latches

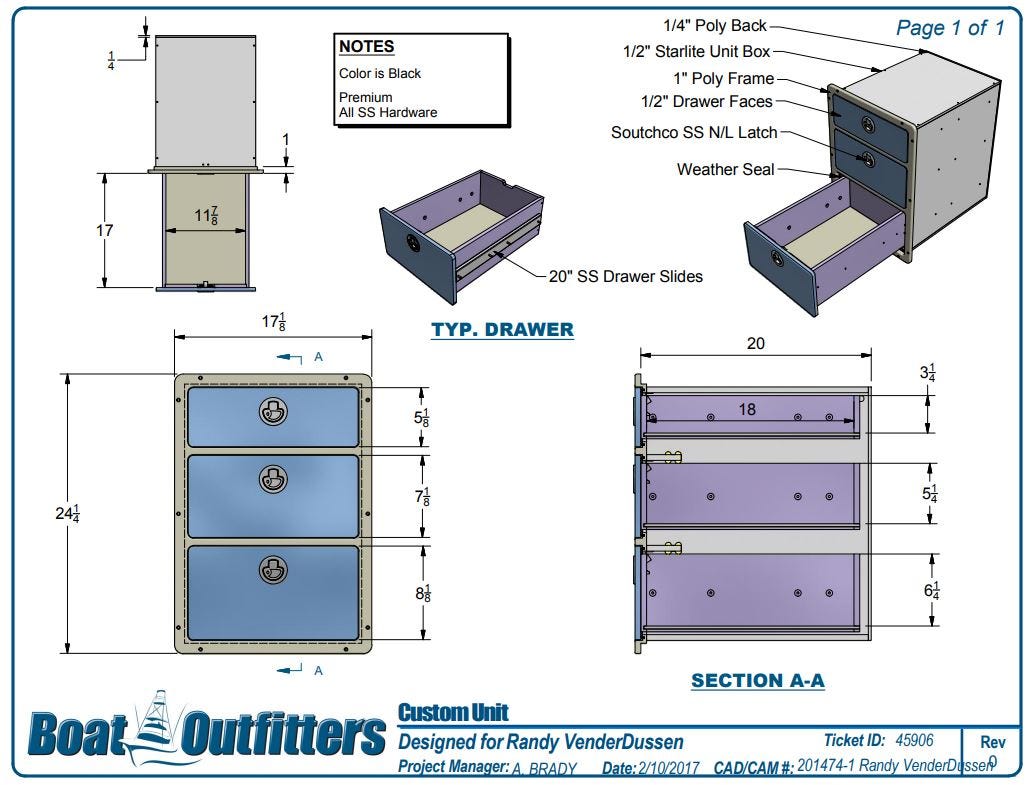

45906
Outside Dims: 24.25" tall x 17.125" wide x 20" deep
Fits Hole Cutout: 22.5" tall x 15.375" wide
Changes: Dim Change, All SS Hardware, Black
49214
Outside Dims: 26.875" tall x 15.75" wide x 14" deep
Fits Hole Cutout: 25.125" tall x 14" wide
Changes: Dim Change, SS Drawer Slides and Latches
56779
Outside Dims: 16" tall x 41.25" wide x 5.25" deep
Fits Hole Cutout: 14.25" tall x 39.5" wide
Changes: Dim Change, (1) SS Locking Latch and (2) SS Non-Locking Latches

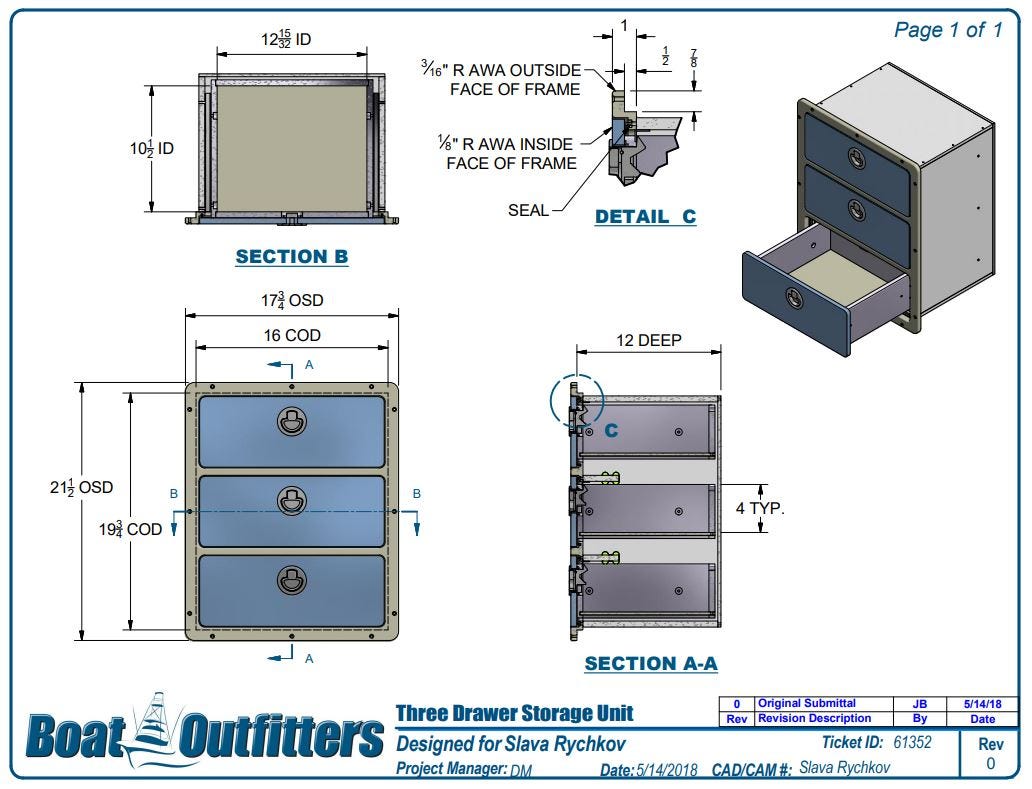

61352
Outside Dims: 21.5" tall x 17.75" wide x 12" deep
Fits Hole Cutout: 19.75" tall x 16" wide
Changes: Dim Change, All SS Hardware

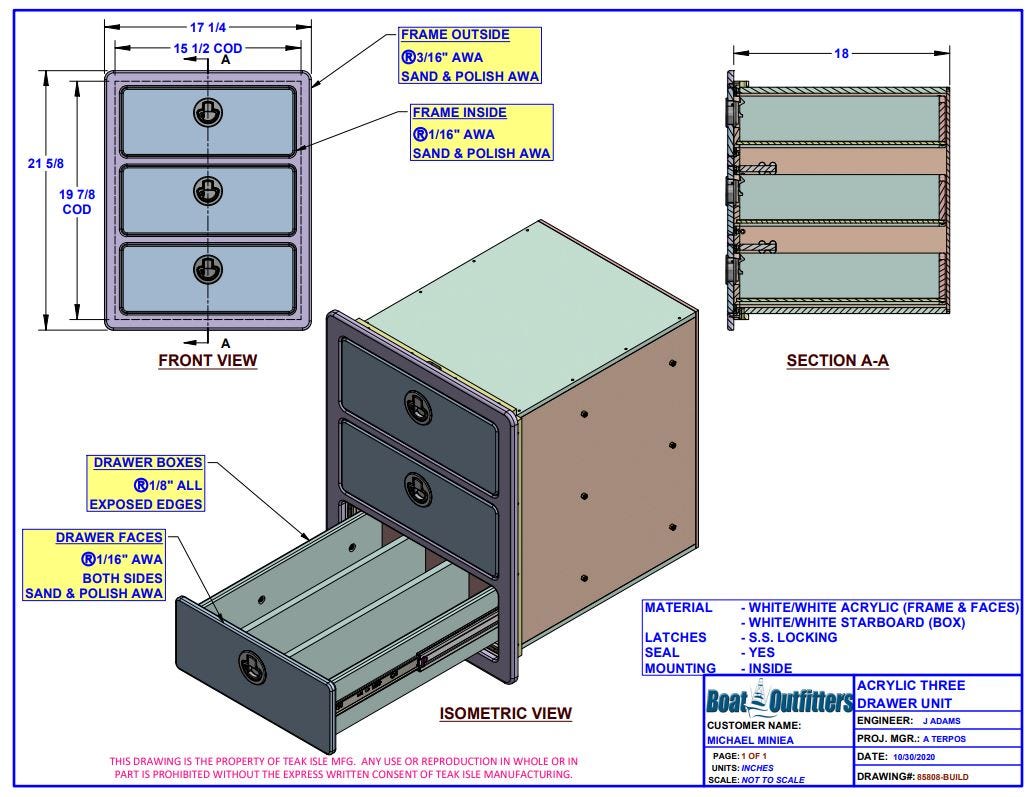

85808
Outside Dims: 21.625" tall x 17.25" wide x 18" deep
Fits Hole Cutout: 19.875" tall x 15.5" wide
Changes: Dim Change, All SS Hardware, Acrylic

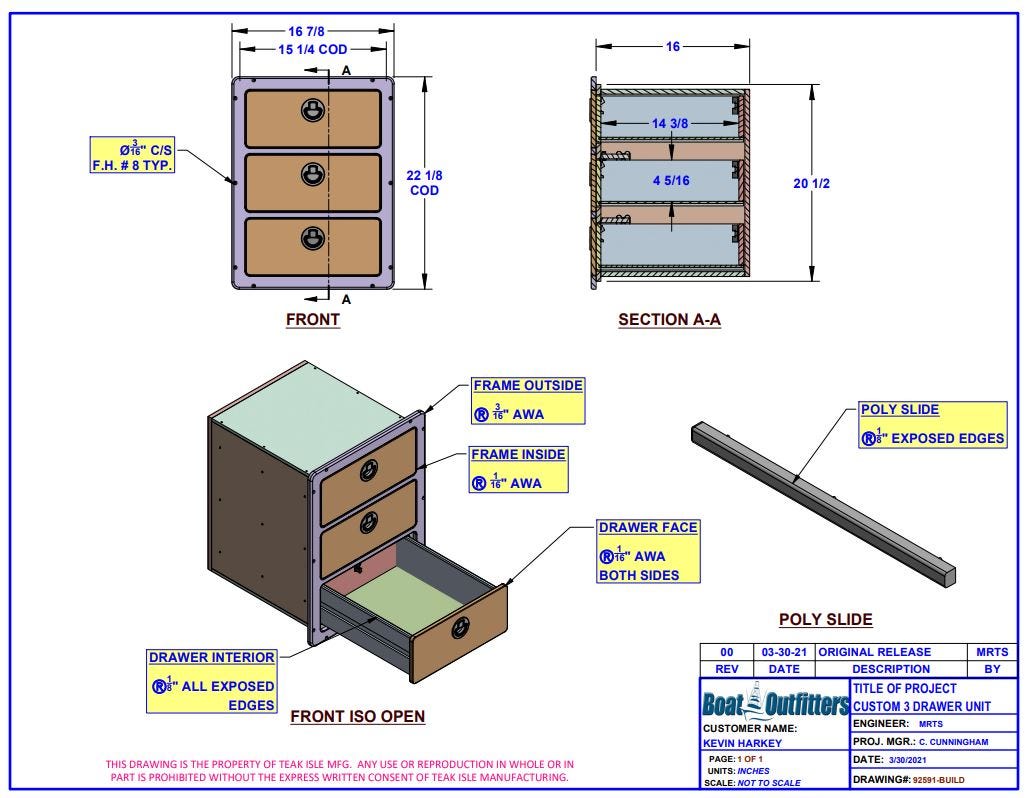

92591
Outside Dims: 20.5" tall x 16.875" wide x 16" deep
Fits Hole Cutout: 22.125" tall x 15.25" wide
Changes: Dim Change

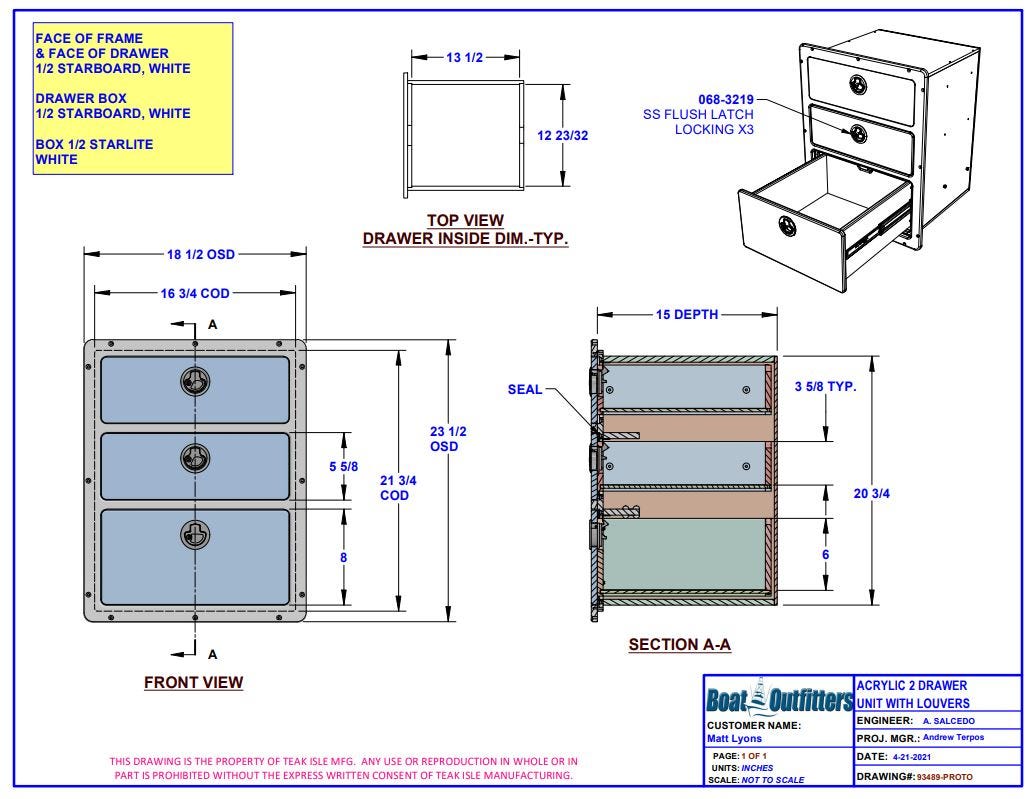

94698
Outside Dims: 23.5" tall x 18.5" wide x 15" deep
Fits Hole Cutout: 21.75" tall x 16.75" wide
Changes: Dim Change, All SS Hardware, Increased Bottom Drawer Size

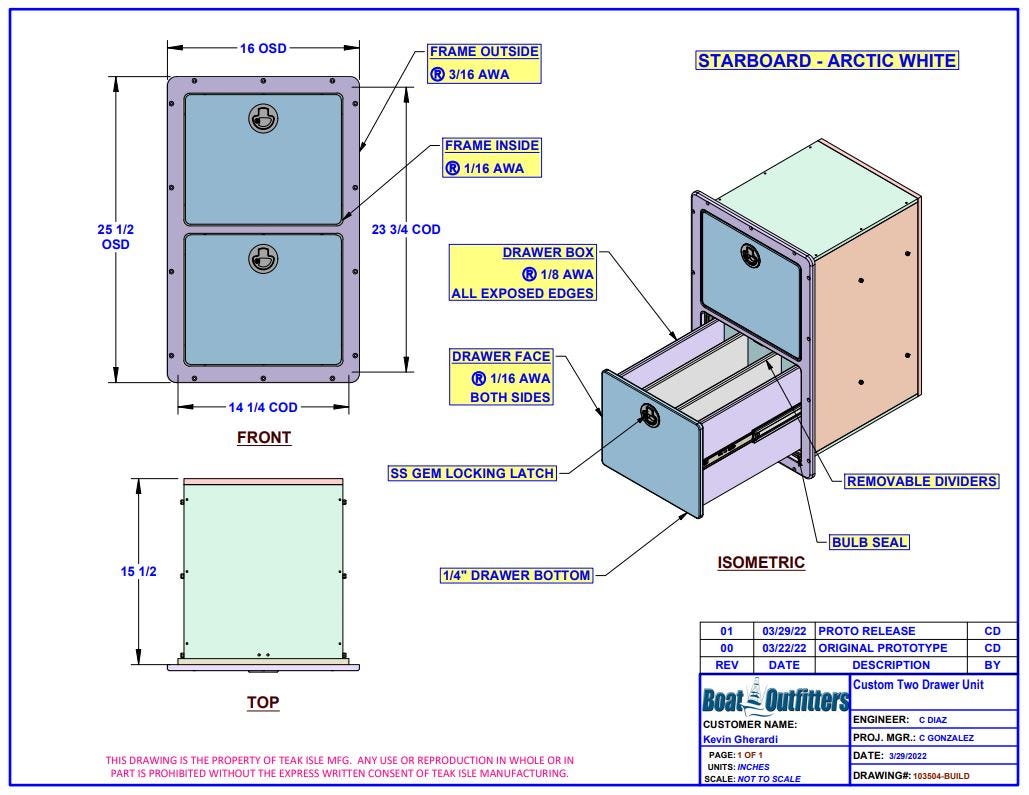

103504
Outside Dims: 25.5" tall x 16" wide x 15.5" deep
Fits Hole Cutout: 23.75" tall x 14.25" wide
Changes: Dim Change, All SS Hardware, (2) Drawers Only
